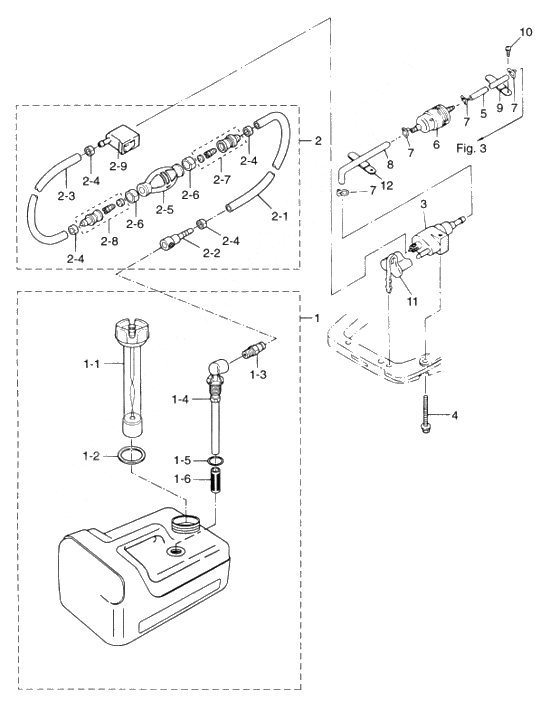

Separate fuel tank для Tohatsu MFS6B - 2005 года выпуска
-
№АртикулНазвание
-
13B2-70167-0 New part
TOHATSUNew part
TOHATSU -
19999-8-FT12 Fuel tank 12l (3.1 gal) epa cap (nissan)
NISSANFuel tank 12l (3.1 gal) epa cap (nissan)
NISSAN -
3Y3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)Fuel tank 12l (3.1 gal) epa cap (nissan)
-
1-13B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
1-23C7-70021-0 Cap gasketCap gasket
-
1-33E0-70270-0 New partNew part
-
1-43B2-70155-0 Fuel PickupFuel Pickup
-
1-53C7-70199-0 O-RingO-Ring
-
1-63C7-70113-0 FilterFilter
-
23H6-70200-0 New partNew part
-
2-198AB-7-1600 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
2-23B2-70281-0 New partNew part
-
2-398AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
2-4332-70201-0 ClampClamp
-
2-53C7-70211-0 Primer BulbPrimer Bulb
-
2-63C7-70217-0 ClampClamp
-
2-73C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
2-83C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
2-9394-70250-0 Соединитель топливныйСоединитель топливный
-
3394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
4910113-5640 BoltBolt
-
598AB-5-1000 New partNew part
-
6369-02230-0 Фильтр топливныйФильтр топливный
-
7338-02215-0 ClipClip
-
83H6-02203-0 Fuel pipe,4.5l-75Fuel pipe,4.5l-75
-
9309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
10951503-1612 Split Pin
OR 921503-0612Split Pin
OR 921503-0612 -
113H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
12398-06972-0 Clamp,6.5-67PClamp,6.5-67P
Все узлы модели:
- Assembly kits
- Bracket & reverse lock
- Camshaft & valve
- Carburetor & fuel pump
- Cowl
- Cylinder & cylinder head
- Drive shaft housing
- Gear case (drive shaft)
- Gear case (propeller shaft)
- Integral fuel tank
- Magneto (new)
- Magneto (old)
- Oil pan
- Optional parts (1) accessories (remote control)
- Optional parts (2) accessories
- Piston & crank shaft
- Recoil starter
- • Separate fuel tank
- Shift
- Tiller handle & throttle
