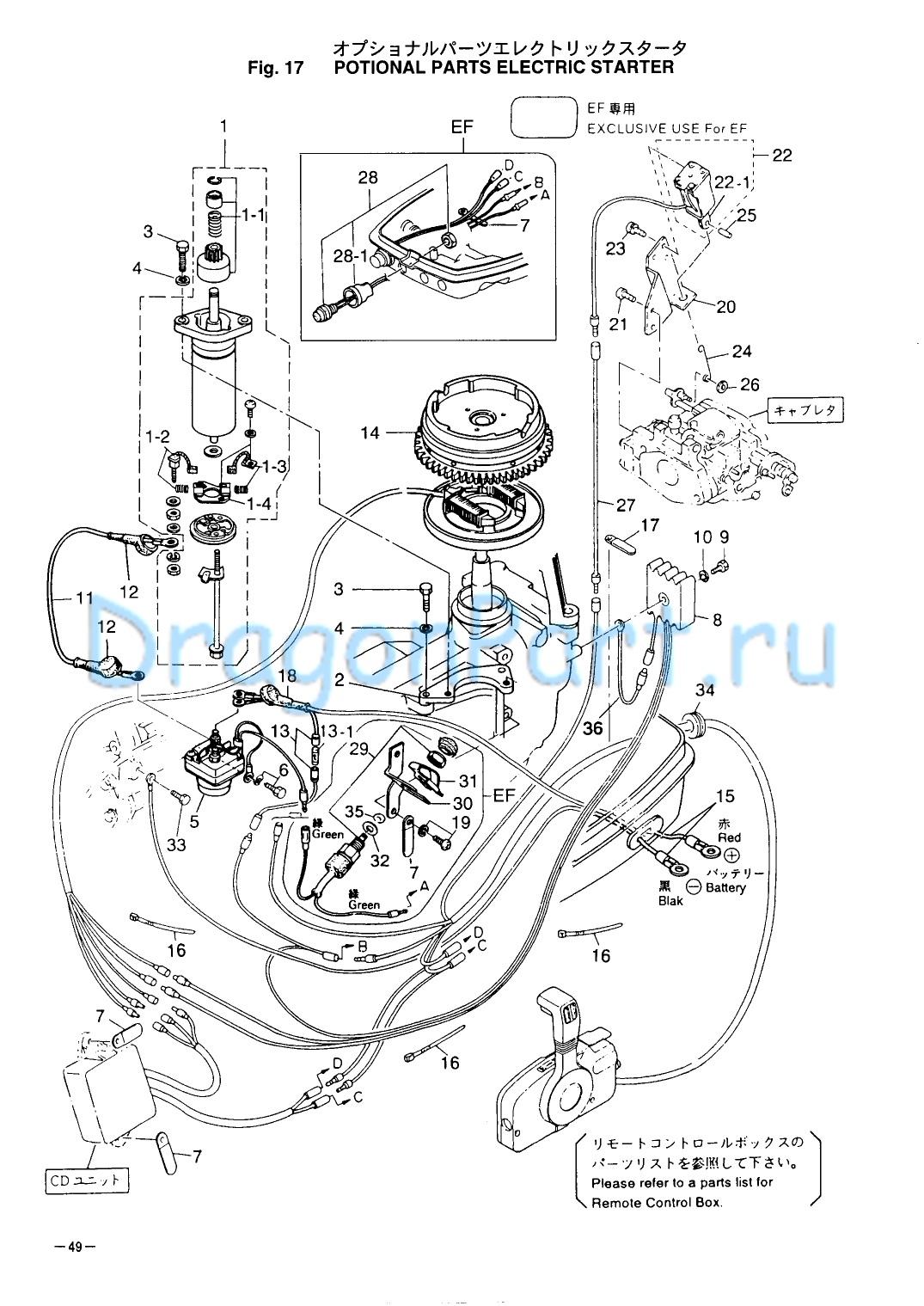

POTIONAL PARTS ELECTRIC STARTER для Tohatsu M15D2 - 2006 года выпуска
-
№АртикулНазвание
-
1350-76010-0 Starter Motor
for EP, EFStarter Motor
for EP, EF -
1-1350-76015-0 * Pinion
for EP, EF* Pinion
for EP, EF -
1-2350-76012-0 * Positive Brush ( + ) (with Spring)
for EP, EF* Positive Brush ( + ) (with Spring)
for EP, EF -
1-3350-76013-0 * Negative Brush (―) (with Spring)
for EP, EF* Negative Brush (―) (with Spring)
for EP, EF -
1-4350-76014-0 * Brush Holder
for EP, EF* Brush Holder
for EP, EF -
2350-76011-0 Starter Motor Bracket
for EP, EFStarter Motor Bracket
for EP, EF -
3916103-0830 Bolt
for EP, EFBolt
for EP, EF -
4941303-0800 Spring Washer
for EP, EFSpring Washer
for EP, EF -
5346-76040-0 Starter Solenoid
for EP, EFStarter Solenoid
for EP, EF -
6910103-6618 Bolt
for EP, EFBolt
for EP, EF -
7398-06972-0 Clamp, 6.5-67P
for EP, EFClamp, 6.5-67P
for EP, EF -
83G2-76060-0 Rectifier
18E2/15D2/9.9D2〜 for EP, EFRectifier
18E2/15D2/9.9D2〜 for EP, EF -
9921503-0525 Screw
for EP, EFScrew
for EP, EF -
10941303-0500 Spring Washer
for EP, EFSpring Washer
for EP, EF -
113B2-76147-1 Starter Cable
L=200 for EP, EFStarter Cable
L=200 for EP, EF -
123A3-76145-0 Terminal Cap
for EP, EFTerminal Cap
for EP, EF -
133B2-76062-0 Fuse Cable
「355 for EP, EFFuse Cable
「355 for EP, EF -
13-1346-76212-0 * Fuse (15A)
for EP, EF* Fuse (15A)
for EP, EF -
143M3-06091-1 Flywheel Cup (with Ring Gear)
18E2/15D2/9.9D2〜 for EP, EFFlywheel Cup (with Ring Gear)
18E2/15D2/9.9D2〜 for EP, EF -
153B2-76120-0 Battery Cable
L二2000 for EP, EFBattery Cable
L二2000 for EP, EF -
16353-84398-0 Lead Wire Band
for EP:2 for EF:1Lead Wire Band
for EP:2 for EF:1 -
17309-06972-0 Clamp, 6.5-47.5P
for EP, EFClamp, 6.5-47.5P
for EP, EF -
183B7-76145-0 Terminal Cap
for EP, EFTerminal Cap
for EP, EF -
19921503-6612 Screw
for EP:1 for EF:2Screw
for EP:1 for EF:2 -
203G2-76055-1 Choke Solenoid Bracket
for EPChoke Solenoid Bracket
for EP -
21921503-6512 Screw
for EPScrew
for EP -
22361-76050-0 Choke Solenoid
for EPChoke Solenoid
for EP -
22-1361-76073-0 * Choke Solenoid Plunger
for EP* Choke Solenoid Plunger
for EP -
23921503-6408 Screw
for EPScrew
for EP -
243G2-76057-1 Choke Solenoid Hook
for EPChoke Solenoid Hook
for EP -
25951403-0312 Spring Pin, 3-12
for ЕРSpring Pin, 3-12
for ЕР -
263C7-032714 O-Ring,1.5-2.5
for ЕРO-Ring,1.5-2.5
for ЕР -
27398-76049-0 Lead Cable (Blue)
for ЕРLead Cable (Blue)
for ЕР -
28361-76026-0 Main Switch
for EFMain Switch
for EF -
28-1346-76039-1 Main Switch Protector
for EFMain Switch Protector
for EF -
29398-76080-0 Neutral Switch
for EFNeutral Switch
for EF -
30350-76081-0 Neutral Switch Bracket
for EFNeutral Switch Bracket
for EF -
31398-76083-0 Neutral Switch Actuator
forEFNeutral Switch Actuator
forEF -
323M4-76084-0 Neutral Switch Spacer
forEFNeutral Switch Spacer
forEF -
33910103-0612 Bolt
or 910113-0612 for EP, EFBolt
or 910113-0612 for EP, EF -
34345-76023-0 Grommet, 22-2.5
for EPGrommet, 22-2.5
for EP -
353B7-63731-0 Washer, 12.5-24-1
for EFWasher, 12.5-24-1
for EF -
363G2-76142-0 Ground Cable
18E2/15D2/9.9D2〜 for EP, EFGround Cable
18E2/15D2/9.9D2〜 for EP, EF
