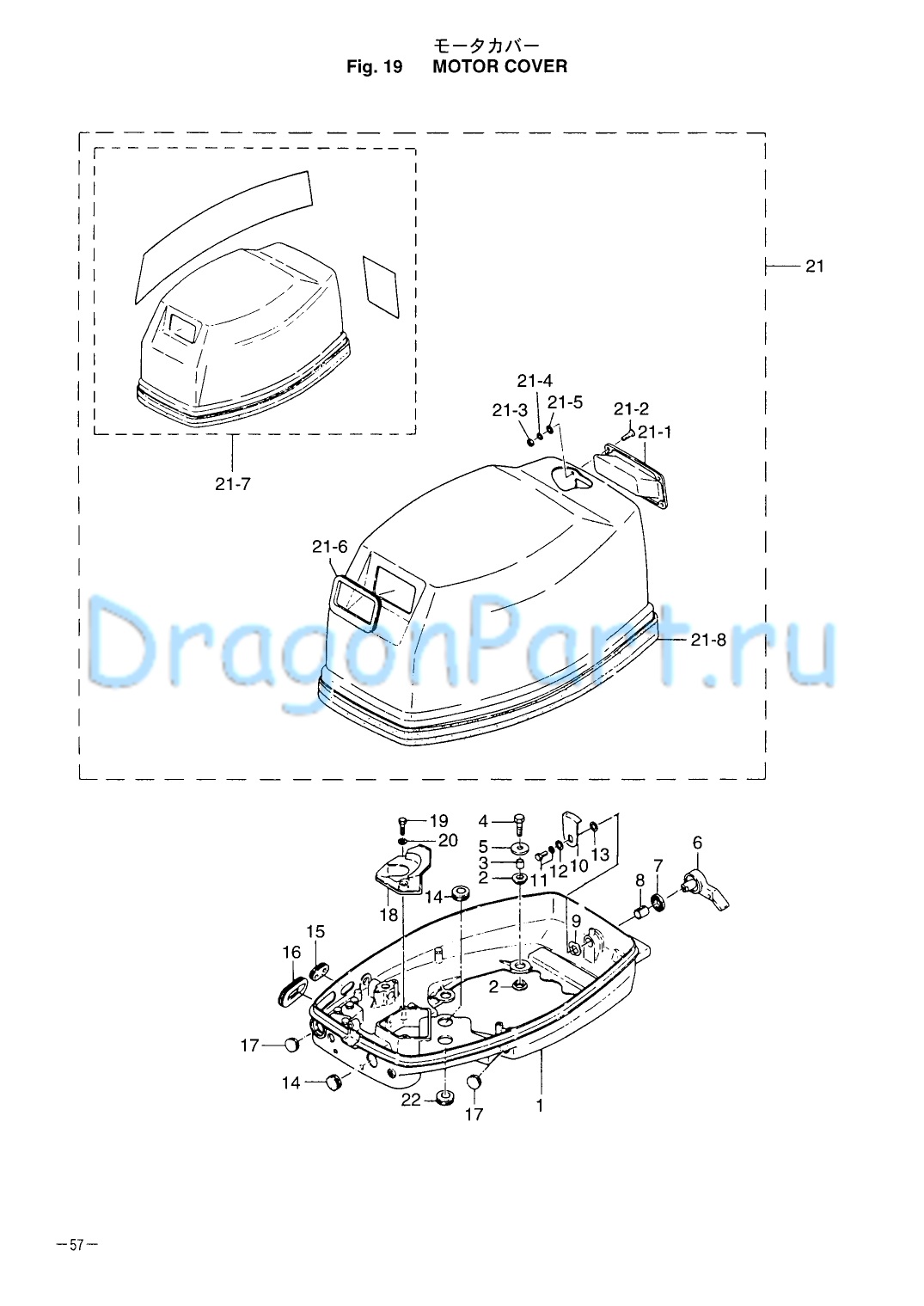

MOTOR COVER для Tohatsu M40C - 2006 года выпуска
-
№АртикулНазвание
-
1345S67100-2 Motor Cover Lower
# 93201〜Motor Cover Lower
# 93201〜 -
2345-67113-0 Rubber Mount, 12-18-2.5Rubber Mount, 12-18-2.5
-
33C7-67114-0 Spacer, 8.4-12~17Spacer, 8.4-12~17
-
4910113-0835 BoltBolt
-
5345-67115-0 Washer, Rubber MountWasher, Rubber Mount
-
6338S67141-0 Hook LeverHook Lever
-
7338-67147-0 Seal Ring, Hook LeverSeal Ring, Hook Lever
-
8350-67105-0 Bushing, 14-16.5-17.7Bushing, 14-16.5-17.7
-
9941403-1400 Wave Washer, d=14Wave Washer, d=14
-
10345-67142-1 Cover HookCover Hook
-
11910103-6612 BoltBolt
-
123R0-66308-0 Washer, 6~16~1.5Washer, 6~16~1.5
-
133C8-67146-0 Washer, 14-22-1Washer, 14-22-1
-
14345-67161-0 Grommet, 22~3Grommet, 22~3
-
15353-67162-0 Grommet, Battery CableGrommet, Battery Cable
-
16345-83732-0 Grommet, CableGrommet, Cable
-
17345-67117-0 Grommet,17~2.7Grommet,17~2.7
-
18345-67183-0 Baffle, Air IntakeBaffle, Air Intake
-
19910114-0625 BoltBolt
-
20940113-0600 WasherWasher
-
21361S67500-4 Motor Cover Upper
# 96958〜Motor Cover Upper
# 96958〜 -
21-1345S67521-0 * Tilt Handle* Tilt Handle
-
21-2921603-0516 * Screw* Screw
-
21-3930103-0500 * Nut* Nut
-
21-4941303-0500 * Spring Washer* Spring Washer
-
21-5940103-0500 * Washer* Washer
-
21-6344-67503-0 * Seal Rubber, Starter* Seal Rubber, Starter
-
21-7361S87801-1 * Decal Set* Decal Set
-
21-83F3-67501-0 * Seal Rubber, Motor Cover Upper* Seal Rubber, Motor Cover Upper
-
22369-61016-0 Grommet, 29-3Grommet, 29-3
