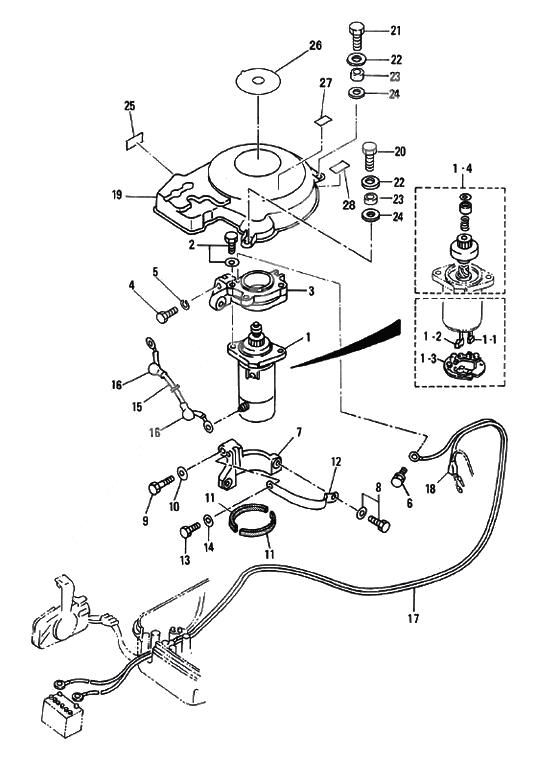

Electric parts (starter motor) для Tohatsu MD70B (AQ) - 2006 года выпуска
-
№АртикулНазвание
-
1353-76010-4 Starter Motor Ass'yStarter Motor Ass'y
-
1-1353-76012-3 Brush (+)Brush (+)
-
1-2353-76013-3 Brush (-)Brush (-)
-
1-3353-76017-1 Brush SpringBrush Spring
-
1-4353-76015-1 Pinion Ass'yPinion Ass'y
-
2910103-6835 BoltBolt
-
33T9B05101-0 Bracket upper,starter motorBracket upper,starter motor
-
4916114-0845 BoltBolt
-
5941322-0800 Spring WasherSpring Washer
-
6910103-7614 BoltBolt
-
7353B76006-2 Bracket starter motorBracket starter motor
-
8910113-5840 BoltBolt
-
9916114-0845 BoltBolt
-
10941322-0800 Spring WasherSpring Washer
-
11353-76007-1 Rubber Starter MotorRubber Starter Motor
-
123T9B76009-0 Band,Starter MotorBand,Starter Motor
-
13910103-0820 BoltBolt
-
14940103-0800 Washer -> 940113-0800
OR 940113-0800Washer -> 940113-0800
OR 940113-0800 -
153R3-76141-0 STARTER CORD
L=270STARTER CORD
L=270 -
163A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
173B7-76120-0 Battery Cord
L=3000Battery Cord
L=3000 -
183B7-76145-0 Terminal CapTerminal Cap
-
193T9-06301-0 Cover,ring gearCover,ring gear
-
20910113-0625 BoltBolt
-
21910113-0616 BoltBolt
-
223R0-66308-0 WasherWasher
-
23353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
243B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
253Y9-72194-0 Label Fuse
70B # 70242~ 90B # 00766~Label Fuse
70B # 70242~ 90B # 00766~ -
263R0-72181-0 Caution Label BCaution Label B
-
273T5-72186-0 Label, PressureLabel, Pressure
-
283Y7-72026-0 Spark Plug Decal
#033166XD~Spark Plug Decal
#033166XD~
