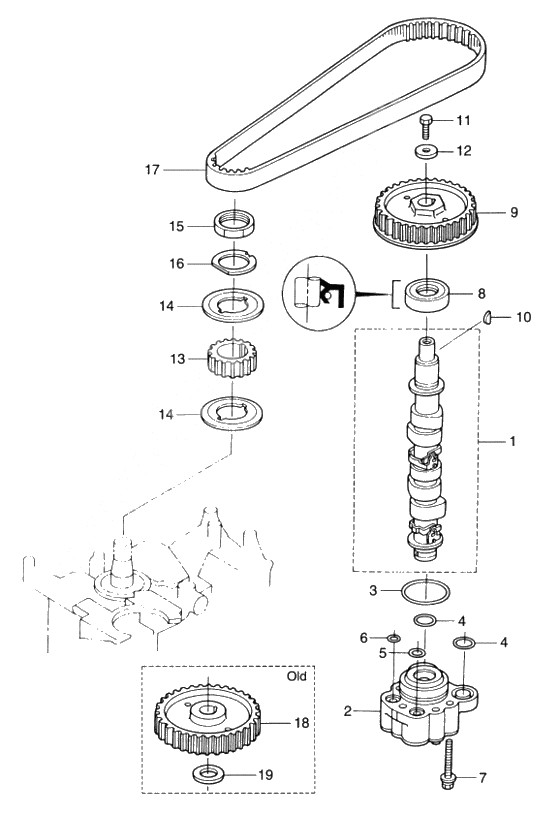

Camshaft & oil pump для Tohatsu MFS15B2 - 2006 года выпуска
-
№АртикулНазвание
-
13R3-07010-0 Camshaft ass'yCamshaft ass'y
-
23H8-07600-0 Oil Pump A'ssyOil Pump A'ssy
-
33H8-07639-0 O-ring Oil Pump
INCL. OIL PUMPO-ring Oil Pump
INCL. OIL PUMP -
43H8-07635-0 O-RingO-Ring
-
53H8-07632-0 O-RingO-Ring
-
63H8-07631-0 O-RingO-Ring
-
7910114-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
83H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
93H8-10062-2 Driven Pulley
CAMSHAFT PULLEY (BLACK) / #024197XC~Driven Pulley
CAMSHAFT PULLEY (BLACK) / #024197XC~ -
10309-00131-0 Key, MagnetoKey, Magneto
-
113AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
123H8-10066-0 WasherWasher
-
133H8-10060-0 Driven Pulley
TIMING PULLEYDriven Pulley
TIMING PULLEY -
143H8-10063-0 PlatePlate
-
153H8-10068-0 NutNut
-
163H8-10069-0 Lock WasherLock Washer
-
173H8-10061-0 Timing BeltTiming Belt
-
183H8-10062-1 Driven Pulley
CAMSHAFT PULLEY (GRAY) OLD ~#020106XCDriven Pulley
CAMSHAFT PULLEY (GRAY) OLD ~#020106XC -
193R3-10067-0 Washer
CAMSHAFT PULLEY (GRAY) OLD ~#020106XCWasher
CAMSHAFT PULLEY (GRAY) OLD ~#020106XC
