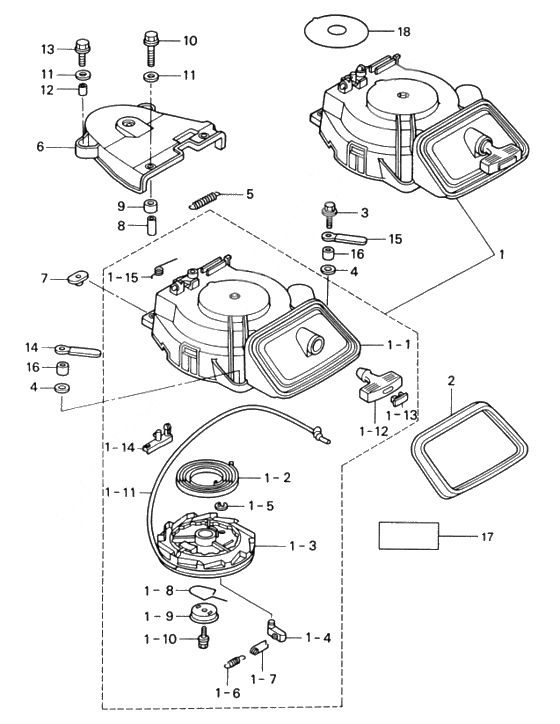

Recoil starter для Tohatsu MFS18B2 - 2006 года выпуска
-
№АртикулНазвание
-
13R3-05090-1 Recoil starter ass'yRecoil starter ass'y
-
1-13H8-05105-0 Starter CaseStarter Case
-
1-103R3-05138-0 Bolt,Starter ShaftBolt,Starter Shaft
-
1-113R3-05013-0 Starter Rope
ø5-1800Starter Rope
ø5-1800 -
1-123C8-05019-0 Starter handle completeStarter handle complete
-
1-133R3-05131-0 Cap,Starter HandleCap,Starter Handle
-
1-143R3-05252-0 Starter LockStarter Lock
-
1-153R3-05216-0 Spring WasherSpring Washer
-
1-23H8-05004-0 Spring WasherSpring Washer
-
1-33R3-05106-0 ReelReel
-
1-43R3-05003-0 RatchetRatchet
-
1-53R3-05011-0 E-Ring,d=10E-Ring,d=10
-
1-63R3-05012-0 Return SpringReturn Spring
-
1-73H8-05123-1 Return SpringReturn Spring
-
1-83R3-05007-0 Spring WasherSpring Washer
-
1-93R3-05006-0 Friction PlateFriction Plate
-
23R3-67503-0 Seal rubber recoil starterSeal rubber recoil starter
-
3910113-0620 Bolt
1 FOR EFBolt
1 FOR EF -
3910113-0630 Bolt
2 FOR EFBolt
2 FOR EF -
43R0-66308-0 WasherWasher
-
53R3-05258-0 Arm springArm spring
-
63R3-06308-0 Belt VoverBelt Vover
-
73F3-76042-1 NutNut
-
83R3-06303-0 Collar 6.2-9-21Collar 6.2-9-21
-
93R3-06302-0 Mount RubberMount Rubber
-
10910113-0630 BoltBolt
-
113R0-66308-0 WasherWasher
-
123A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
13910113-0620 BoltBolt
-
14309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
15398-06972-0 Clamp,6.5-67P
EF ONLYClamp,6.5-67P
EF ONLY -
163H6-63619-1 Collar, Bracket
2 FOR EFCollar, Bracket
2 FOR EF -
173H6-72026-0 Label, Spark PlugLabel, Spark Plug
-
183R0-72181-0 Caution Label BCaution Label B
