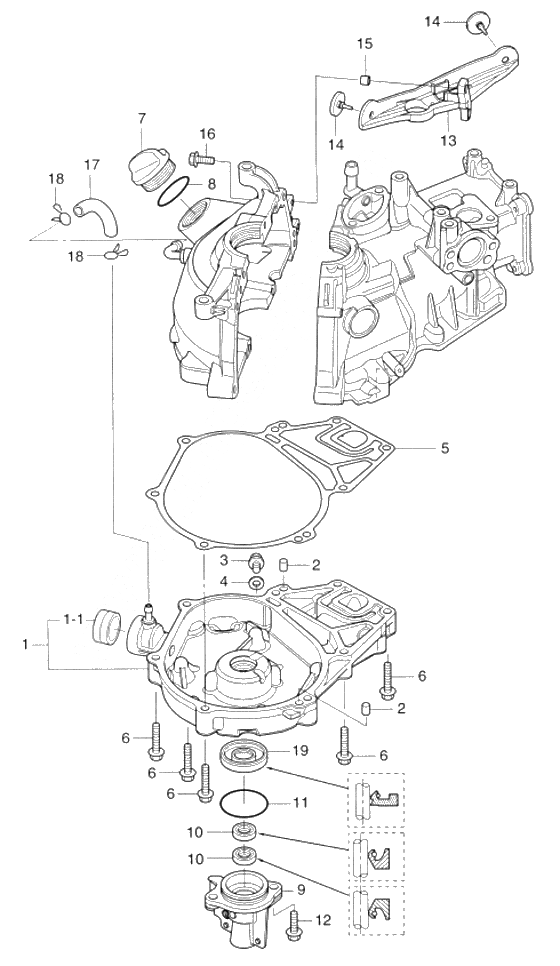

Oil pan для Tohatsu MFS2.5A - 2006 года выпуска
-
№АртикулНазвание
-
13ABB07400-0 Oil pan assy f2.5ab/3.5abOil pan assy f2.5ab/3.5ab
-
1-13AB-07421-0 Oil level gaugeOil level gauge
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
33H6-07405-0 Bolt, DrainBolt, Drain
-
43H6-07406-0 WasherWasher
-
53AB-07402-0 Oil pan gasketOil pan gasket
-
6910114-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
73R0-71015-0 Filler Cap,Engine OilFiller Cap,Engine Oil
-
83R0-07422-0 New partNew part
-
93AB-01210-0 Crank case headCrank case head
-
103AB-01215-0 Oil SealOil Seal
-
113V1-02012-0 O-RingO-Ring
-
12910113-5620 BoltBolt
-
133AB-05101-0 Stopper bracketStopper bracket
-
141E0-09104-0 Rubber damperRubber damper
-
153A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
16910113-5620 BoltBolt
-
1798AB-5-0090 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
18338-02215-0 ClipClip
-
193AB-00121-0 Oil SealOil Seal
