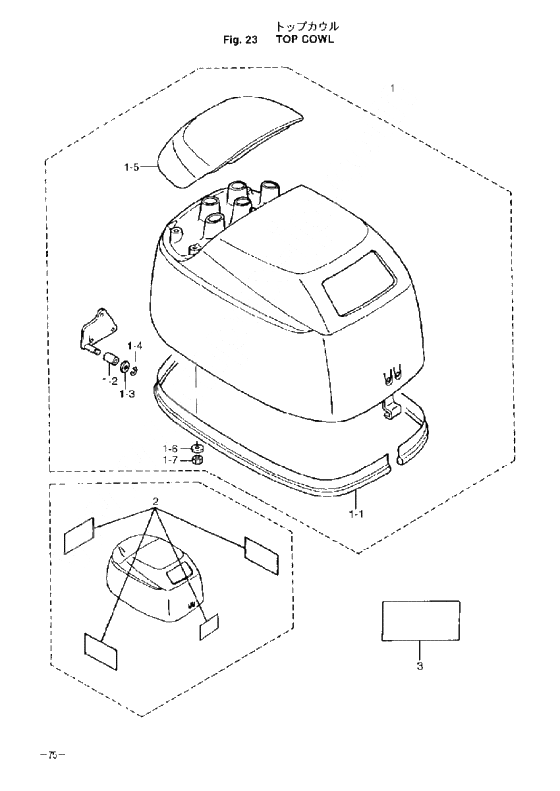

Top cowl для Tohatsu MFS30B - 2006 года выпуска
-
№АртикулНазвание
-
13ACQ67630-0 Motor cover upper mfs25/30 (aqua marine blue)Motor cover upper mfs25/30 (aqua marine blue)
-
3ACQ67645-5 Motor cover upper mfs25/30 (aqua marine blue)Motor cover upper mfs25/30 (aqua marine blue)
-
1-13S9-67501-0 Seal rubber,motor coverSeal rubber,motor cover
-
1-23R0-67517-0 Roller,6.1-14.7-14Roller,6.1-14.7-14
-
1-33C8-66308-0 New partNew part
-
1-4945303-0500 E-RingE-Ring
-
1-53R0S67521-1 Tilt handleTilt handle
-
1-6309-70016-0 WasherWasher
-
23ACQ87801-0 Decal set mfs30b efi (aqua marine blue)
UniqueDecal set mfs30b efi (aqua marine blue)
Unique -
3AC-87801-3 Decal set mfs30b efi (aqua marine blue)Decal set mfs30b efi (aqua marine blue)
-
33R0-72180-0 Caution Lable ACaution Lable A
Все узлы модели:
- Assembly kit
- Bottom cowl
- Bracket, ptt & gas assistant
- Camshaft & oil pump
- Clamp bracket & reverse lock
- Cylinder head
- Cylinder
- Drive shaft & water pump
- Drive shaft housing
- Electric parts
- Fuel pump, fuel rail & vapor separator
- Gear case
- Intake manifold & throttle body
- Intank valve & exhaust valve
- Magneto & ecu
- Optional parts, accessories
- Piston & crank shaft
- Power trim & tilt
- Recoil starter
- Separate fuel tank
- Shift & cam rod
- Shift
- Starter motor
- Steering handle, tiller handle
- Stern bracket & reverse lock
- Swivel bracket, manual type
- • Top cowl
