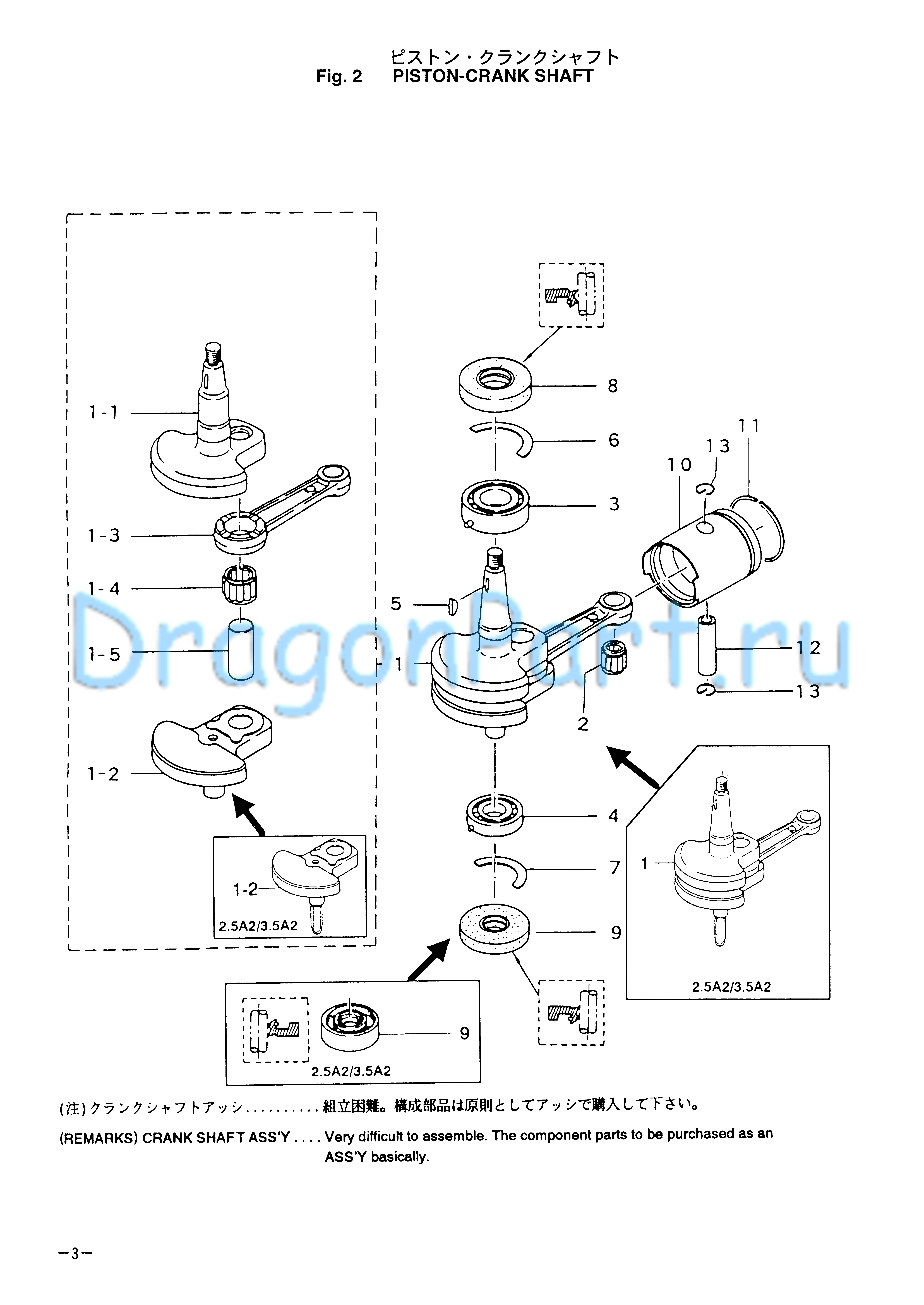

PISTON CRANK SHAFT для Tohatsu M3.5A2 - 2007 года выпуска
-
№АртикулНазвание
-
1309-00030-0 Crank Shaft
2.5A2 # 90713-Crank Shaft
2.5A2 # 90713- -
1-1309-00031-0 * Crank Shaft A"
2.5A2 # 90713-* Crank Shaft A"
2.5A2 # 90713- -
1-2309-00034-0 * Crank Shaft D"* Crank Shaft D"
-
1-3309-00040-0 * Connecting Rod* Connecting Rod
-
1-4309-00043-0 * Needle Beari ne:, 16-22-12* Needle Beari ne:, 16-22-12
-
1-5309-00061-0 * Crank Pin* Crank Pin
-
2309-00042-0 Needle Beari ng, 10.5-14-15Needle Beari ng, 10.5-14-15
-
39643-3-6004 Ball Bearing, 6004Ball Bearing, 6004
-
49643-3-6202 Ball Bearing, 6202Ball Bearing, 6202
-
5309-00131-0 Key, MagnetoKey, Magneto
-
6309-00106-0 Thrust Plate, UpperThrust Plate, Upper
-
73F0-00107-0 Thrust Plate, LowerThrust Plate, Lower
-
8309-00121-0 Oil Seal, 20-42-8Oil Seal, 20-42-8
-
9309-00122-0 Oil Seal, 15-35-15Oil Seal, 15-35-15
-
10309-00001-0 Piston (Std )Piston (Std )
-
10309-00004-0 Piston (0.5m m O/S)
OotionPiston (0.5m m O/S)
Ootion -
11302-00011-0 Piston Ring (Std)Piston Ring (Std)
-
11302-00014-0 Piston Ring (0.5m m O/S)
OptionPiston Ring (0.5m m O/S)
Option -
12309-00021-0 Piston Pi nPiston Pi n
-
13309-00024-1 Clip, Piston PinClip, Piston Pin
