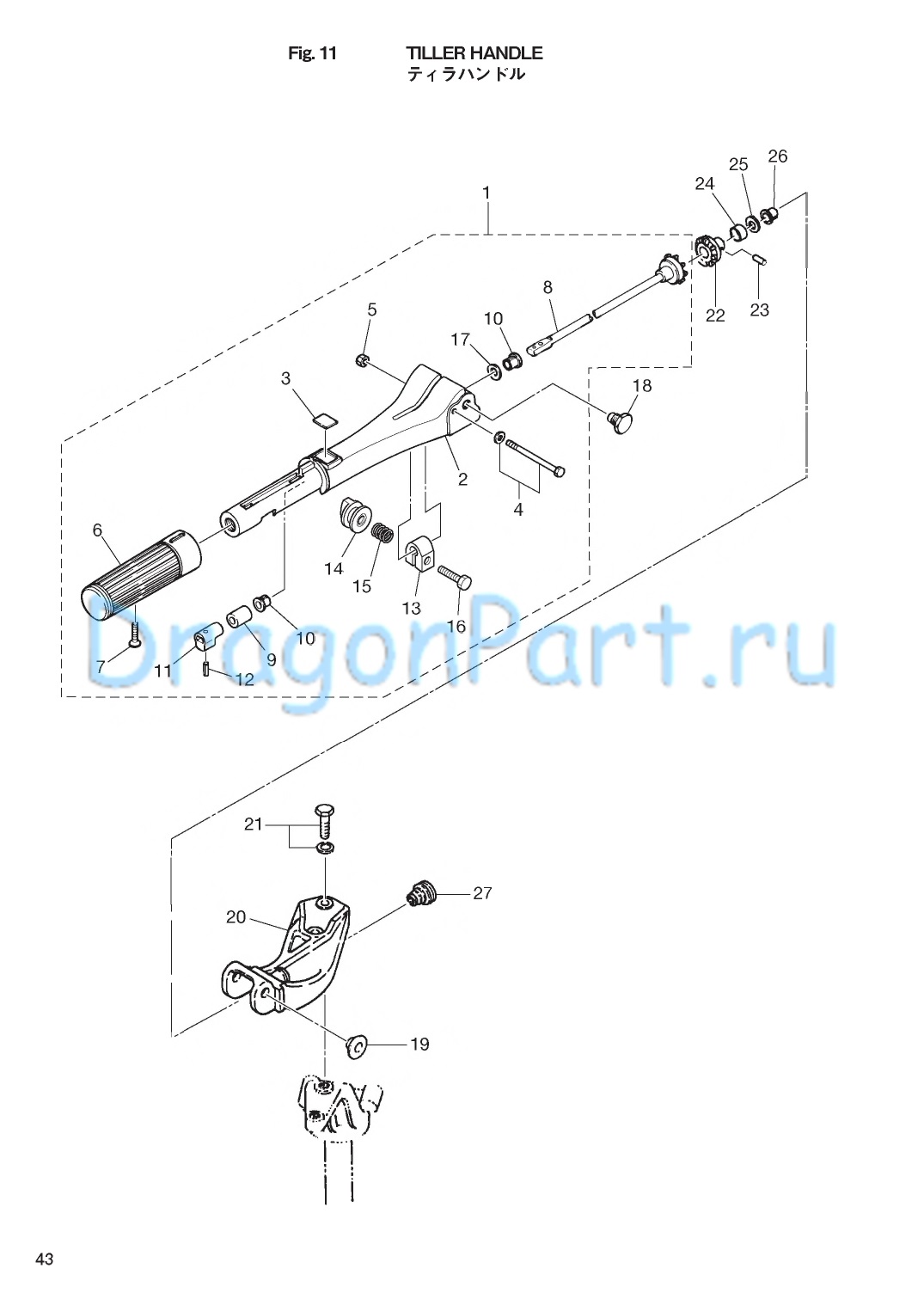

TILLER HANDLE для Tohatsu M40C - 2007 года выпуска
-
№АртикулНазвание
-
13M3Q63005-1 TILLER HANDLE SUB-ASSY
for MF/EF TypeTILLER HANDLE SUB-ASSY
for MF/EF Type -
2398Q63011-1 * TILLER HANDLE
Steering Handle* TILLER HANDLE
Steering Handle -
3369-72019-1 * THROTTLE DECAL* THROTTLE DECAL
-
49101E3-5675 * BOLT* BOLT
-
5930403-0600 * NYLON NUT 6-P1.0* NYLON NUT 6-P1.0
-
6398-63012-0 * GRIP* GRIP
-
7921803-0525 * SCREW* SCREW
-
8398-63041-0 * THROTTLE SHAFT* THROTTLE SHAFT
-
9345-63048-0 * THROTTLE SHAFT DAMPER* THROTTLE SHAFT DAMPER
-
10350-63046-0 * BUSHING 8.4-10-11* BUSHING 8.4-10-11
-
11398-63053-0 * SPACER* SPACER
-
12951403-0310 * SPRING PIN 3-10* SPRING PIN 3-10
-
133V1-63035-1 * FRICTION PIECE* FRICTION PIECE
-
143V1-63077-0 * ADJUSTING NUT* ADJUSTING NUT
-
153V1-63036-0 * SPRING* SPRING
-
169101E3-0625 * BOLT* BOLT
-
17941403-1000 * WAVE WASHER d=10* WAVE WASHER d=10
-
18346-63201-2 BOLTBOLT
-
19345-63207-0 COLLAR 9.8-12.7-7.5COLLAR 9.8-12.7-7.5
-
20345Q63051-0 STEERING BRACKETSTEERING BRACKET
-
219101E3-5825 BOLTBOLT
-
22346-63064-0 UNIVERSAL PINIONUNIVERSAL PINION
-
23951403-0414 SPRING PIN 4-14SPRING PIN 4-14
-
24346-63066-1 COLLAR 15.9-17-9COLLAR 15.9-17-9
-
25940103-0800 WASHERWASHER
-
26350-63046-0 BUSHING 8.4-10-11BUSHING 8.4-10-11
-
27345-66226-0 GROMMET 17-3GROMMET 17-3
