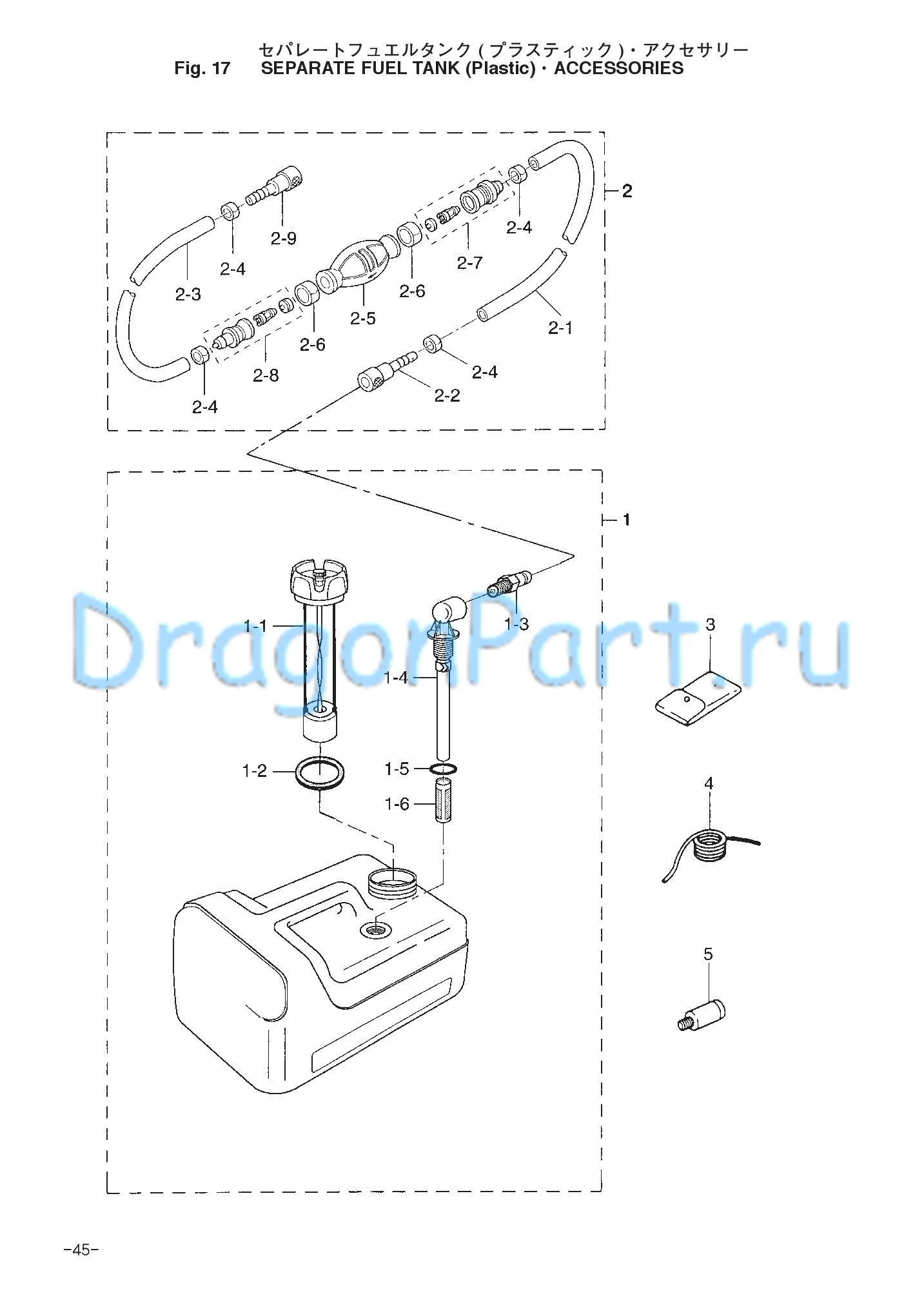

SEPARATE FUEL TANK (PLASTIC) ACCESSORIES для Tohatsu M8B - 2007 года выпуска
-
№АртикулНазвание
-
13B2-70167-0 Fuel Tank(12L, Plastic)
UNIQUEFuel Tank(12L, Plastic)
UNIQUE -
1-13B2-70050-0 * Fuel Gauge Vented Cap* Fuel Gauge Vented Cap
-
1-23C7-70021-0 * Tank Cap Gasket* Tank Cap Gasket
-
1-33E0-70270-0 * Male Quick Connector* Male Quick Connector
-
1-43B2-70155-0 * Elbow Tubing and Clamp Ass’v* Elbow Tubing and Clamp Ass’v
-
1-53C7-70199-0 * O-Ring* O-Ring
-
1-63C7-70113-0 * Filter* Filter
-
23B7-70200-3 Primer Bulb Ass’vPrimer Bulb Ass’v
-
2-198AB-7-1600 * Fuel Hose* Fuel Hose
-
2-23B2-70281-0 * Fuel Connector (Tank side, Female)* Fuel Connector (Tank side, Female)
-
2-398AB-7-0700 * Fuel Hose* Fuel Hose
-
2-4332-70201-0 * Clamp* Clamp
-
2-53C7-70211-0 * Primer Bulb* Primer Bulb
-
2-63C7-70217-0 * Clamp* Clamp
-
2-73C7-70220-1 * Joint Ass’v (Inlet)* Joint Ass’v (Inlet)
-
2-83C7-70224-1 * Joint Ass’v (Outlet)* Joint Ass’v (Outlet)
-
2-93B2-70250-1 * Fuel Connector (Engine side, Female)* Fuel Connector (Engine side, Female)
-
3369-72100-0 ToolTool
-
4312-72201-0 Rope
04-1000Rope
04-1000 -
5336-60007-0 Flushing Attachment
OptionFlushing Attachment
Option
