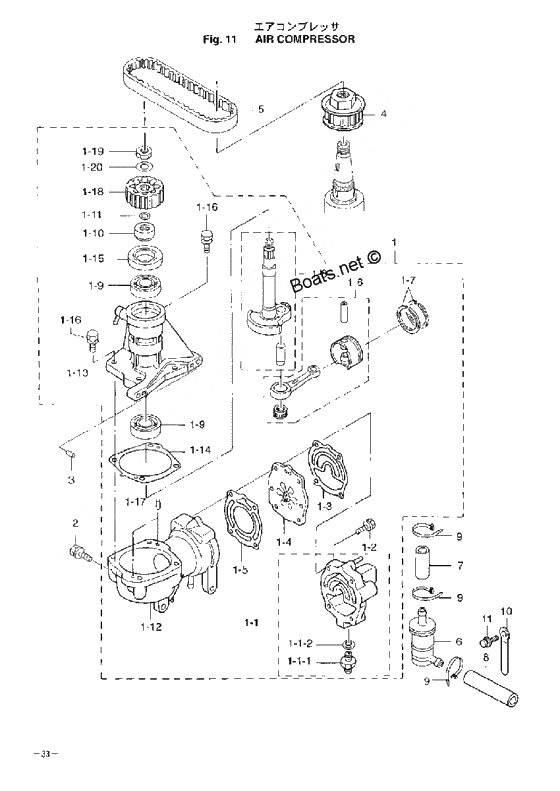

Air compressor для Tohatsu MD115A - 2007 года выпуска
-
№АртикулНазвание
-
13T1B10000-0 Air compressor d115aAir compressor d115a
-
3T1B10000-4 Air compressor d115aAir compressor d115a
-
1-13T1B10009-0 Compressor head (with nipple)Compressor head (with nipple)
-
1-1-13T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
1-1-23T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
1-103T1-10042-0 Collar 13.5-25-13Collar 13.5-25-13
-
1-113T5-10046-0 O-RingO-Ring
-
1-123T1B10048-0 Cylinder compressorCylinder compressor
-
1-133T1B10049-0 Housing compressorHousing compressor
-
1-143T1-10054-0 Gasket compressor housingGasket compressor housing
-
1-153T5-10041-0 Oil Seal,25-45-8Oil Seal,25-45-8
-
1-17334-65012-0 СтопорСтопор
-
1-183T1-10062-0 Driven PulleyDriven Pulley
-
1-19309-00132-0 Nut, MagnetoNut, Magneto
-
1-203B7-01116-0 WasherWasher
-
1-33T1-10012-0 Gasket compressor headGasket compressor head
-
1-43T1-10010-0 Reed valve assy (d115a- air/comp)Reed valve assy (d115a- air/comp)
-
3HK-10010-1 Reed valve assy (d115a- air/comp)Reed valve assy (d115a- air/comp)
-
1-53T1-10019-0 Gasket valve seatGasket valve seat
-
1-63T1-87330-0 Connecting rod air compressor pistonConnecting rod air compressor piston
-
1-73T1-10025-0 Piston ring compressorPiston ring compressor
-
1-83T1-87331-0 Crank shaft air compressorCrank shaft air compressor
-
3T1-87331-1 Crank shaft air compressorCrank shaft air compressor
-
1-99601-0-6203 Ball BearingBall Bearing
-
2910103-7835 BoltBolt
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43T1-10060-0 Drive PulleyDrive Pulley
-
53T1-10061-0 Drive BeltDrive Belt
-
63T5-10130-0 Воздушный фильтрВоздушный фильтр
-
898AT130-140 HoseHose
-
93T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
10309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
11910103-6612 BoltBolt
