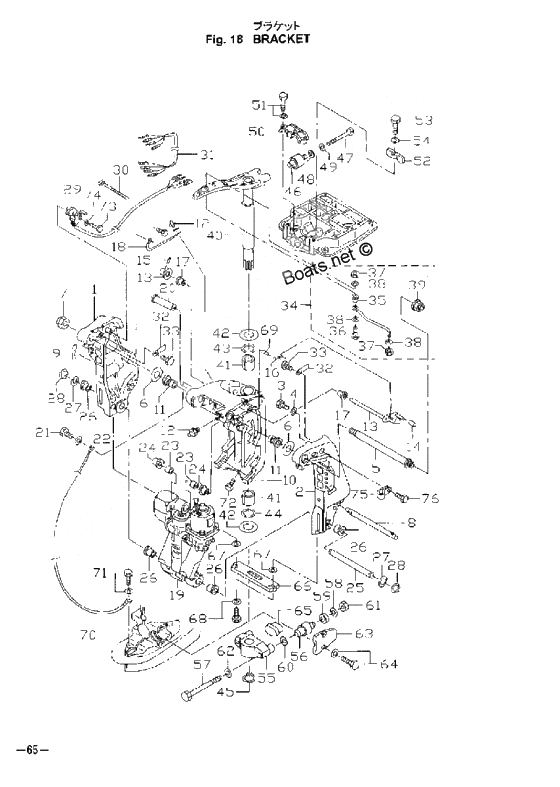

Bracket для Tohatsu MD70B - 2007 года выпуска
-
№АртикулНазвание
-
13E0S62112-0 Stern bracket r
StarboardStern bracket r
Starboard -
23E0S62113-1 Stern bracket l
PortStern bracket l
Port -
3910213-1020 BoltBolt
-
53E0-62191-1 Bracket Bolt Ass'yBracket Bolt Ass'y
-
63E0-62116-1 WasherWasher
-
7346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
83E0-62121-1 Thrust RodThrust Rod
-
93B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
103E0S62313-0 Swivel bracket ass'ySwivel bracket ass'y
-
113E0-62126-0 Bushing Bracket BoltBushing Bracket Bolt
-
12344-67177-0 МасленкаМасленка
-
133E0S62431-1 Tilt Stopper Ass'yTilt Stopper Ass'y
-
143E0-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
15951403-3516 New partNew part
-
163E0-62473-1 Spring Tilt StopperSpring Tilt Stopper
-
17353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
183C8-62158-0 Ground Wire
L=130Ground Wire
L=130 -
193T9S77150-0 Power trim & tilt ass'yPower trim & tilt ass'y
-
203C8-77071-0 Upper Cylinder PinUpper Cylinder Pin
-
22345-05122-0 New partNew part
-
233C8-77075-0 New partNew part
-
243E0-77076-0 BushingBushing
-
253E0-77101-0 Cylinder pin lowerCylinder pin lower
-
263E0-77103-0 BushingBushing
-
27346-62412-1 WasherWasher
-
28945103-2200 ClipClip
-
293F3-72574-1 Гидроцилиндр
L=1700Гидроцилиндр
L=1700 -
303T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
313F3-72573-1 Extension cord trim sender
L=5300Extension cord trim sender
L=5300 -
32309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
343E0-84905-0 Drag link assyDrag link assy
-
353E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
363E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
37353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
38353-84916-0 WasherWasher
-
393F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
403C8S62010-2 Steering shaft ass'ySteering shaft ass'y
-
413B7-62417-0 BushingBushing
-
423B7-62423-1 Thrust PlateThrust Plate
-
433B7-62414-0 Seal Ring, Steering ShaftSeal Ring, Steering Shaft
-
443B7-62415-0 O-RingO-Ring
-
45945103-3200 C-RingC-Ring
-
463B7-61301-0 Upper Mount RobberUpper Mount Robber
-
473B7-61307-1 Bolt, upper mount rubberBolt, upper mount rubber
-
483C7-61338-0 Damper RubberDamper Rubber
-
493B7-61335-0 WasherWasher
-
503B7S61341-1 Cap, mount rubber upperCap, mount rubber upper
-
523B7-61339-0 Damper, Mount Rubber UpperDamper, Mount Rubber Upper
-
543C8-66308-0 New partNew part
-
553B7S61411-2 Mount bracketMount bracket
-
56353-61302-0 Lower Mount RubberLower Mount Rubber
-
57353-61321-3 BoltBolt
-
58353-61334-0 WasherWasher
-
60353-61315-1 WasherWasher
-
613B7-61324-0 NutNut
-
633B7S61342-0 Cap lower mount rubberCap lower mount rubber
-
643N4-61343-0 Bolt,8-25Bolt,8-25
-
65353-61336-0 Damper RubberDamper Rubber
-
663C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
68910103-6630 BoltBolt
-
693E0-62475-0 Pin, tlit stopper springPin, tlit stopper spring
-
703B7-62396-0 Ground Wire
L=210Ground Wire
L=210 -
71910113-5612 BoltBolt
-
723B7-77085-1 Bolt 12-20Bolt 12-20
-
75345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
76921503-5612 Stud BoltStud Bolt
