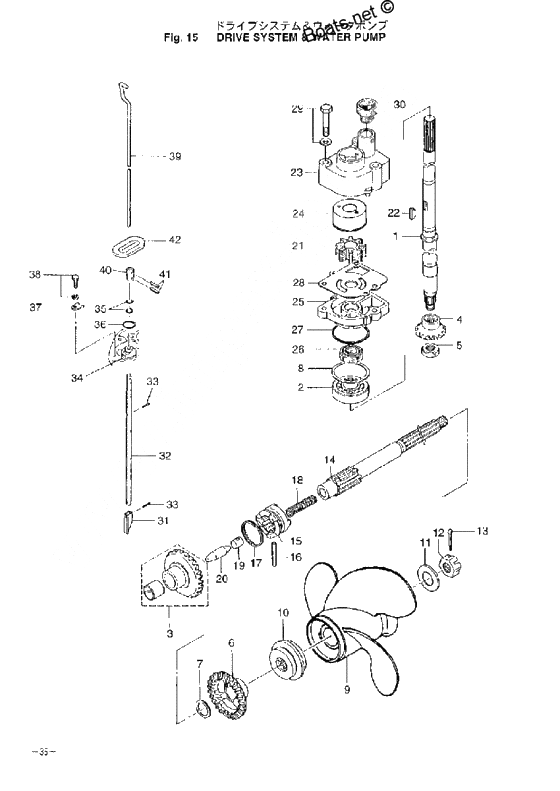

Drive system, water pump для Tohatsu MFS18B2 - 2007 года выпуска
-
№АртикулНазвание
-
13H8-64301-0 Drive Shaft S
ShortDrive Shaft S
Short -
13H8-64302-0 Drive shaft l
LongDrive shaft l
Long -
29601-0-6302 Ball BearingBall Bearing
-
33H8-64010-0 Bevel Gear ABevel Gear A
-
43H8-64020-0 Bevel Gear BBevel Gear B
-
5346-64027-1 Nut, Bevel Gear BNut, Bevel Gear B
-
63H8-64030-0 Bevel Gear CBevel Gear C
-
7350-64032-0 WasherWasher
-
8346-64081-0 Shim, 35-41.9-0.1Shim, 35-41.9-0.1
-
8346-64082-0 Shim, 35-41.9-0.15Shim, 35-41.9-0.15
-
8346-64083-0 Shim, 35-41.9-0.3Shim, 35-41.9-0.3
-
8346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
9362-64107-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
9362-64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) blackProp 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black
-
9362-64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)
-
362B64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)
-
9362-64102-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
STD, 9.9B2 L""Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
STD, 9.9B2 L"" -
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
9362-64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
STD, 9.9B2 S", STD 15B2/18B2 "L""Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
STD, 9.9B2 S", STD 15B2/18B2 "L"" -
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
-
9362-64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)
STD, 15B2/18B2 S""Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)
STD, 15B2/18B2 S"" -
362B64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)
-
10362-64231-0 Thrust HolderThrust Holder
-
11346-64124-5 WasherWasher
-
12346-64121-5 ナット、プロペラナット、プロペラ
-
13951503-0322 Split pin, 3-22Split pin, 3-22
-
14362-64211-0 Propeller ShaftPropeller Shaft
-
15362-64215-0 ClutchClutch
-
16350-64218-0 Clutch Pin
тИЕ5-30mmClutch Pin
тИЕ5-30mm -
17350-64219-0 Snap ClutchSnap Clutch
-
18332-64221-0 New partNew part
-
19350-64222-0 New partNew part
-
20350-64223-1 Push Rod ClutchPush Rod Clutch
-
21334-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
22350-65022-0 New partNew part
-
23350-65016-1 New partNew part
-
24350-65011-1 New partNew part
-
25350-65017-0 Water pump case lowerWater pump case lower
-
26332-60223-0 Oil SealOil Seal
-
27336-62415-0 O-RingO-Ring
-
28350-65025-0 New partNew part
-
313C8-66011-0 Clutch CamClutch Cam
-
323H8-66012-1 Cma lod s
ShortCma lod s
Short -
323H8-66013-1 Cam lod l
LongCam lod l
Long -
33951407-0312 Spring WasherSpring Washer
-
34398-66031-0 Bushing Cam RodBushing Cam Rod
-
35332-66021-0 O-RingO-Ring
-
37332-66033-0 Retainer Cam ShiftRetainer Cam Shift
-
38910103-6512 BoltBolt
-
393H8-66215-2 Shift RodShift Rod
-
403C8-66241-0 Joint Shift RodJoint Shift Rod
-
41951403-0312 Spring WasherSpring Washer
-
423R3-66226-0 Grommet, Shift RodGrommet, Shift Rod
