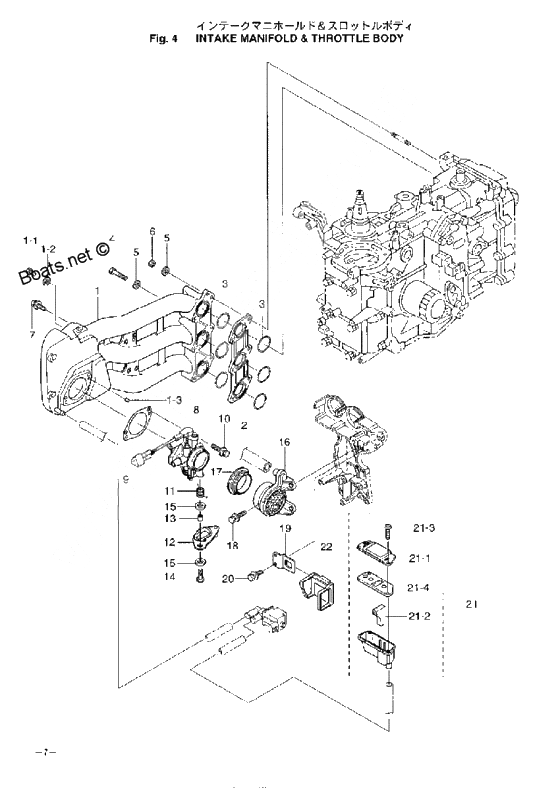

Intake manifold & throttle body для Tohatsu MFS25B - 2007 года выпуска
-
№АртикулНазвание
-
13AC-02010-0 Intake manifoldIntake manifold
-
1-13R0-02095-0 Bolt,5-10Bolt,5-10
-
1-23R0-02112-0 WasherWasher
-
1-3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
23AC-03952-0 InsulatorInsulator
-
33AC-02012-0 O-RingO-Ring
-
4916114-0635 BoltBolt
-
5940113-0600 WasherWasher
-
83AC-10100-0 Throttle body assy f30b
30HP, with TPSThrottle body assy f30b
30HP, with TPS -
3AC-10100-1 Throttle body assy f30bThrottle body assy f30b
-
83AD-10100-0 Throttle body assy f25b
25HP, with TPSThrottle body assy f25b
25HP, with TPS -
3AD-10100-1 Throttle body assy f25bThrottle body assy f25b
-
93AC-10104-0 Gasket throttle bodyGasket throttle body
-
113AC-63727-0 SpringSpring
-
123AC-63718-0 Throttle cam f30b
30HP, BlackThrottle cam f30b
30HP, Black -
3AC-63749-0 Throttle cam f30bThrottle cam f30b
-
123AD-63718-0 Throttle cam f25b
25HP, WhiteThrottle cam f25b
25HP, White -
3AD-63749-0 Throttle cam f25bThrottle cam f25b
-
13353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
15345-67115-0 Washer lower cover rubber mountWasher lower cover rubber mount
-
163AD-02409-0 Intake silencer assy throttle body
for Throttle BodyIntake silencer assy throttle body
for Throttle Body -
173AC-02418-0 GasketGasket
-
193AC-63737-0 StayStay
-
20910113-5612 BoltBolt
-
213AC-02409-0 Intake silencer assy isc
for ISCIntake silencer assy isc
for ISC -
21-13AC-02416-0 Intake silencer coverIntake silencer cover
-
21-23AC-10130-0 Air filterAir filter
-
21-33AC-05913-0 Tapping ScrewTapping Screw
-
21-43AC-02414-0 Intake silencer gasketIntake silencer gasket
-
223AC-63624-0 GrommetGrommet
