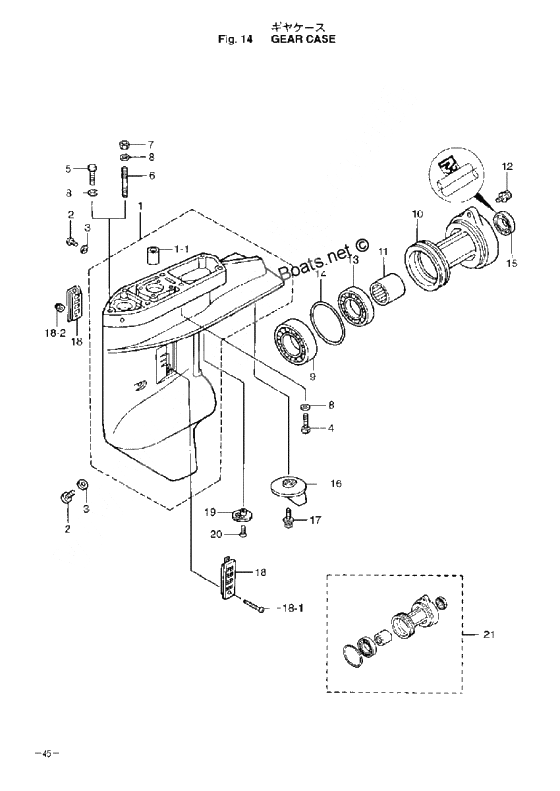

Gear case для Tohatsu MFS30B - 2007 года выпуска
-
№АртикулНазвание
-
1346Q60000-6 Gear caseGear case
-
3AEQ60000-2 Gear caseGear case
-
1-1346-60211-0 Needle bearing, 20-27-30Needle bearing, 20-27-30
-
2332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
3332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
6915313-0830 Stud Bolt
Transom SStud Bolt
Transom S -
9346-60215-0 Подшипник (30205) 25x52x16,25Подшипник (30205) 25x52x16,25
-
10346Q60101-5 Prop shaft housingProp shaft housing
-
346Q60101-8 Prop shaft housingProp shaft housing
-
11346-60102-0 Needle BearingNeedle Bearing
-
139601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
14332-60103-0 O-RingO-Ring
-
15346-60111-0 Oil seal, 18-28-8Oil seal, 18-28-8
-
163C8-60217-1 Trim TabTrim Tab
-
183A1-60235-0 Water Strainer SetWater Strainer Set
-
19369-60206-0 Water StrainerWater Strainer
-
21346Q87323-5 Prop shaft housing assyProp shaft housing assy
-
349Q60100-7 Prop shaft housing assyProp shaft housing assy
Все узлы модели:
- Assembly kit
- Bottom cowl
- Bracket, ptt & gas assistant
- Camshaft & oil pump
- Clamp bracket & reverse lock
- Cylinder head
- Cylinder
- Drive shaft & water pump
- Drive shaft housing
- Electric parts
- Fuel pump, fuel rail & vapor separator
- • Gear case
- Intake manifold & throttle body
- Intank valve & exhaust valve
- Magneto & ecu
- Optional parts, accessories
- Piston & crank shaft
- Power trim & tilt
- Recoil starter
- Separate fuel tank
- Shift & cam rod
- Shift
- Starter motor
- Steering handle, tiller handle
- Stern bracket & reverse lock
- Swivel bracket, manual type
- Top cowl
