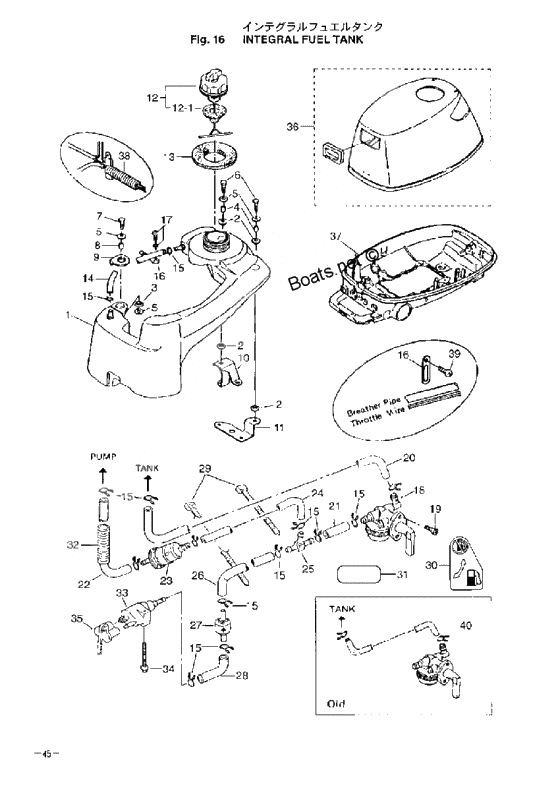

Fuel tank (integral) для Tohatsu MFS4B - 2007 года выпуска
-
№АртикулНазвание
-
13H9-70316-1 Fuel tank completeFuel tank complete
-
2346-67113-0 Mount RubberMount Rubber
-
3122-35083-0 Mount RubberMount Rubber
-
4346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
5346-67115-0 WasherWasher
-
83H9-70015-0 SpaiserSpaiser
-
93H9-70048-0 Plate, fuel tankPlate, fuel tank
-
103H9-70044-0 Bracket,rearBracket,rear
-
113H9-70046-0 Bracket,left
4A2-# 12517Bracket,left
4A2-# 12517 -
123H9-70020-0 Fuel tank cap ass'yFuel tank cap ass'y
-
12-1309-70021-3 Gasket, Fuel Tank CapGasket, Fuel Tank Cap
-
133H9-70036-0 Seal rubber fuel tankSeal rubber fuel tank
-
15338-02215-0 ClipClip
-
16309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
183H9-70311-0 Fuel CockFuel Cock
-
19921803-0410 Stud BoltStud Bolt
-
203H9-70326-0 Fuel pipe 4.5s-310Fuel pipe 4.5s-310
-
22394-02211-0 Fuel pipe cFuel pipe c
-
23369-02230-0 Фильтр топливныйФильтр топливный
-
243H9-70325-0 Fuel pipe 4.5l-230Fuel pipe 4.5l-230
-
25394-70013-0 Pipu Joint T-typePipu Joint T-type
-
263H6-02204-0 Fuel pipe,4.5l-115Fuel pipe,4.5l-115
-
27394-70327-0 Non Return ValveNon Return Valve
-
28394-70325-0 Fuel pipe fFuel pipe f
-
29369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
303H9-72024-0 Decal, fuel lever bDecal, fuel lever b
-
31394-72016-0 Decal,fuel lever dDecal,fuel lever d
-
33394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
353H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
363AUQ67500-1 New part
Motor Cover (Upper)New part
Motor Cover (Upper) -
373H9Q67100-2 Lower motor cover integral tank f4/5/6b (amb)
Motor Cover (Lower)Lower motor cover integral tank f4/5/6b (amb)
Motor Cover (Lower) -
383H9-06133-0 Protector,wire HarnessProtector,wire Harness
-
403H9-02204-0 Fuel pipu,4.5l-335
4A#10230-4A2#12182Fuel pipu,4.5l-335
4A#10230-4A2#12182
