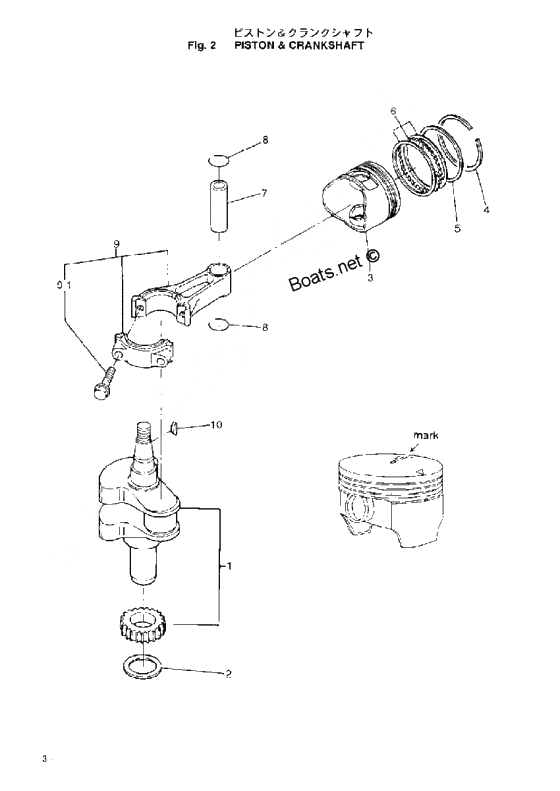

Piston & crank shaft для Tohatsu MFS5B - 2007 года выпуска
-
№АртикулНазвание
-
13H6-00030-0 Crankshaft Cop.Crankshaft Cop.
-
23H6-00115-0 WasherWasher
-
33R4-00001-2 Piston
Mark 6Piston
Mark 6 -
33R4-00004-2 Piston(0.5 O/S)
OptionPiston(0.5 O/S)
Option -
43H6-00011-0 Ring piston topRing piston top
-
43H6-00014-0 Piston Ring Top 0.5 O/S
OptionPiston Ring Top 0.5 O/S
Option -
53H6-00015-0 Piston Ring 2nd 0.5 O/S
OptionPiston Ring 2nd 0.5 O/S
Option -
53H6-00012-0 Ring piston 2ndRing piston 2nd
-
63H6-00013-0 Ring piston oilRing piston oil
-
63H6-00016-0 Piston Ring Oil 0.5 O/S
OptionPiston Ring Oil 0.5 O/S
Option -
73H6-00021-0 Палец поршняПалец поршня
-
83H6-00024-0 Clip, Piston PinClip, Piston Pin
-
9-13H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
10338-00131-0 Magneto KeyMagneto Key
