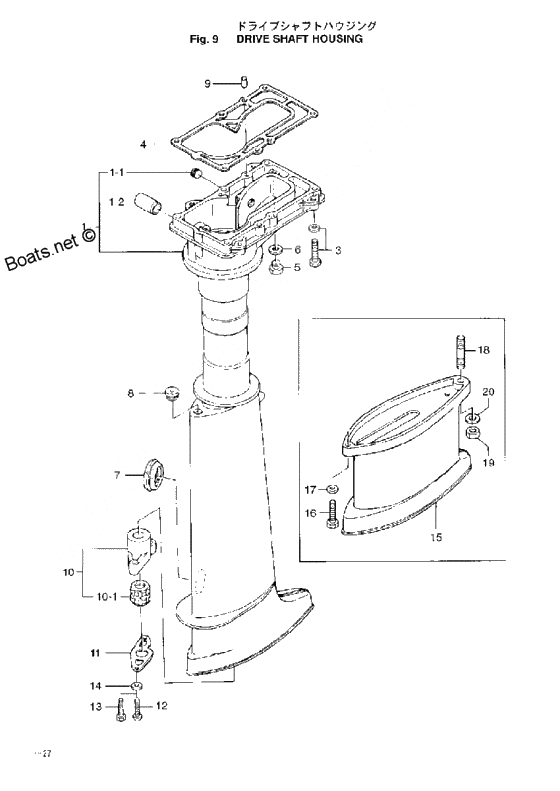

Drive shaft housing для Tohatsu MFS6B - 2007 года выпуска
-
№АртикулНазвание
-
13H6Q61020-0 Drive shaft housing s (amb)
for Transom S""Drive shaft housing s (amb)
for Transom S"" -
3H6Q61020-2 Drive shaft housing s (amb)Drive shaft housing s (amb)
-
13H6Q61030-1 Drive shaft housing l (amb)
for Transom L""Drive shaft housing l (amb)
for Transom L"" -
3H6Q61030-4 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
1-13H6-07257-0 Exhaust PlugExhaust Plug
-
1-2301-61021-0 Bushing Shift LeverBushing Shift Lever
-
43H6-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
8369-66043-1 Grommet Cam RodGrommet Cam Rod
-
9345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
10369-64331-2 Drive shaft bushing assy
for Transom L""Drive shaft bushing assy
for Transom L"" -
103AS-64331-0 Drive shaft bushing assy (amb)
for Transom UL""Drive shaft bushing assy (amb)
for Transom UL"" -
10-13AS-60003-0 Drive shaft bushingDrive shaft bushing
-
10-1369-60003-0 Bushing drive shaftBushing drive shaft
-
11369-64332-1 StopperStopper
-
133AS-02420-0 Screw
for Transom L" "UL""Screw
for Transom L" "UL"" -
3H6-64333-1 ScrewScrew
-
14940103-0500 WasherWasher
-
15369Q61110-1 Extension housing ul (amb)Extension housing ul (amb)
-
16916113-0625 BoltBolt
-
17940113-0600 Washer
for Transom UL""Washer
for Transom UL""
