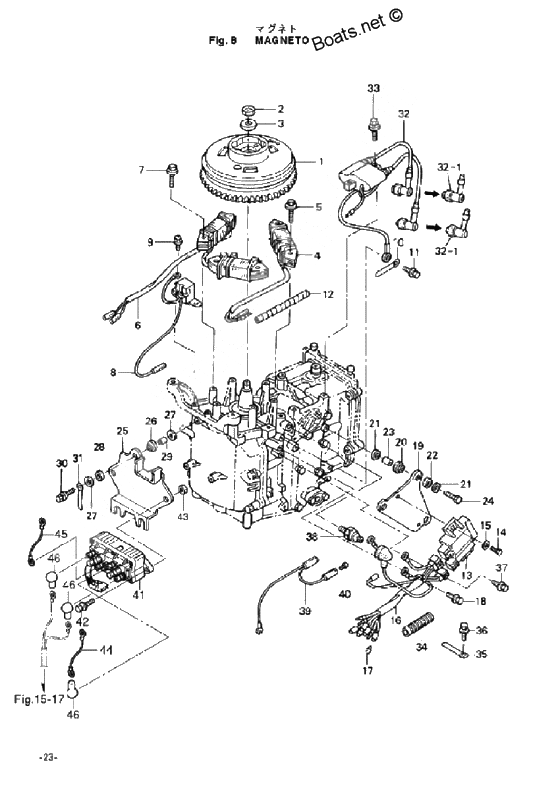

Magneto для Tohatsu MFS9.8A3 - 2007 года выпуска

№

Артикул

Название
1

3AA-06091-0 Flywheel Cap
# 031096XD- FF-51 with Ring Gear

Flywheel Cap
# 031096XD- FF-51 with Ring Gear

30 790 ₽
2

369-00132-0 Nut Magneto

Nut Magneto

290 ₽
3

940121-1200 Washer

Washer

230 ₽
4

3AA-06021-0 Excite Coil
# 031096XD-

Excite Coil
# 031096XD-

5 560 ₽
5

910103-5630 Bolt

Bolt

170 ₽
6

3AA-06023-0 Alternator Ass'y
# 031096XD- for EF/EFT & EP/EPT

Alternator Ass'y
# 031096XD- for EF/EFT & EP/EPT

11 730 ₽
8

3V1-06071-0 Pulsar Coil

Pulsar Coil

3 650 ₽
9

921503-0512 Stud Bolt

Stud Bolt

120 ₽
10

309-06972-0 Clamp,6.5-47.5P
Alternator & Exciter Cable

Clamp,6.5-47.5P
Alternator & Exciter Cable

190 ₽
12

3V1-76148-0 Spiral Tube Protector
for EF/EFT & EP/EPT, Alternator & Exciter Cable

Spiral Tube Protector
for EF/EFT & EP/EPT, Alternator & Exciter Cable

660 ₽
13

3AA-06060-0 C.D. Unit
# 031096XD-

C.D. Unit
# 031096XD-

17 320 ₽
14

3V1-60108-0 Bolt,6-16 Pre Coated
Old Part No. 3V1-06864-0

Bolt,6-16 Pre Coated
Old Part No. 3V1-06864-0

190 ₽
15

3C8-66308-0 New part

New part

140 ₽
16

3AA-06167-0 Cord Ass'y C.D. Unit
# 031096XD-

Cord Ass'y C.D. Unit
# 031096XD-

9 540 ₽
17

3A3-76037-0 Plug B Cable Terminal
Light Green & White Cable

Plug B Cable Terminal
Light Green & White Cable

140 ₽
19

3V1-06061-1 Bracket c.d. unit
or 3V1-06061-0

Bracket c.d. unit
or 3V1-06061-0

8 710 ₽
3V1-06061-0 Bracket c.d. unit

Bracket c.d. unit

1 260 ₽
20

3T5-06920-0 Mount Rubber

Mount Rubber

140 ₽
22

3B7-06305-0 Mount Rubber, 9-16-4.3

Mount Rubber, 9-16-4.3

110 ₽
23

3A0-76079-0 Collar, 6.2-9-7.5

Collar, 6.2-9-7.5

600 ₽
25

3V1-06900-1 Electric bracket
or 3V1-06900-0, for EF/EFT & EP/EPT

Electric bracket
or 3V1-06900-0, for EF/EFT & EP/EPT

2 500 ₽
3V1-06900-0 Electric bracket

Electric bracket

2 740 ₽
31

3T4-06972-1 Clamp
for EP

Clamp
for EP

200 ₽
3T4-06972-0 Clamp

Clamp

210 ₽
32

3V1-06040-0 Ignition Coil

Ignition Coil

11 740 ₽
32-1

3H6-06999-0 Plug Cap (Registance)

Plug Cap (Registance)

3 710 ₽
34

3V1-06133-0 Protector
тИЕ34 - 70 for MF

Protector
тИЕ34 - 70 for MF

460 ₽
36

9101E3-5612 Bolt & washer
or 910113-5612, for MF

Bolt & washer
or 910113-5612, for MF

170 ₽
38

3H6-07611-0 Switch, Oil Pressure

Switch, Oil Pressure

2 010 ₽
39

3V5-72678-0 Separate Cord(Black)

Separate Cord(Black)

880 ₽
41

3Z0-72580-0 Power tilt solenoid switch inain
for EFT/EPT

Power tilt solenoid switch inain
for EFT/EPT

15 280 ₽
42

9101E3-5620 Bolt & washer
or 910103-5620, for EFT/EPT

Bolt & washer
or 910103-5620, for EFT/EPT

360 ₽
44

3C8-72582-0 Cord a solenoid switch
for EFT/EPT

Cord a solenoid switch
for EFT/EPT

360 ₽
45

3C8-72583-1 Cord B Solenoid Switch (L=130)
for EFT/EPT

Cord B Solenoid Switch (L=130)
for EFT/EPT

450 ₽
46

3Y1-76145-0 Terminal Cap
for EFT/EPT

Terminal Cap
for EFT/EPT

290 ₽
