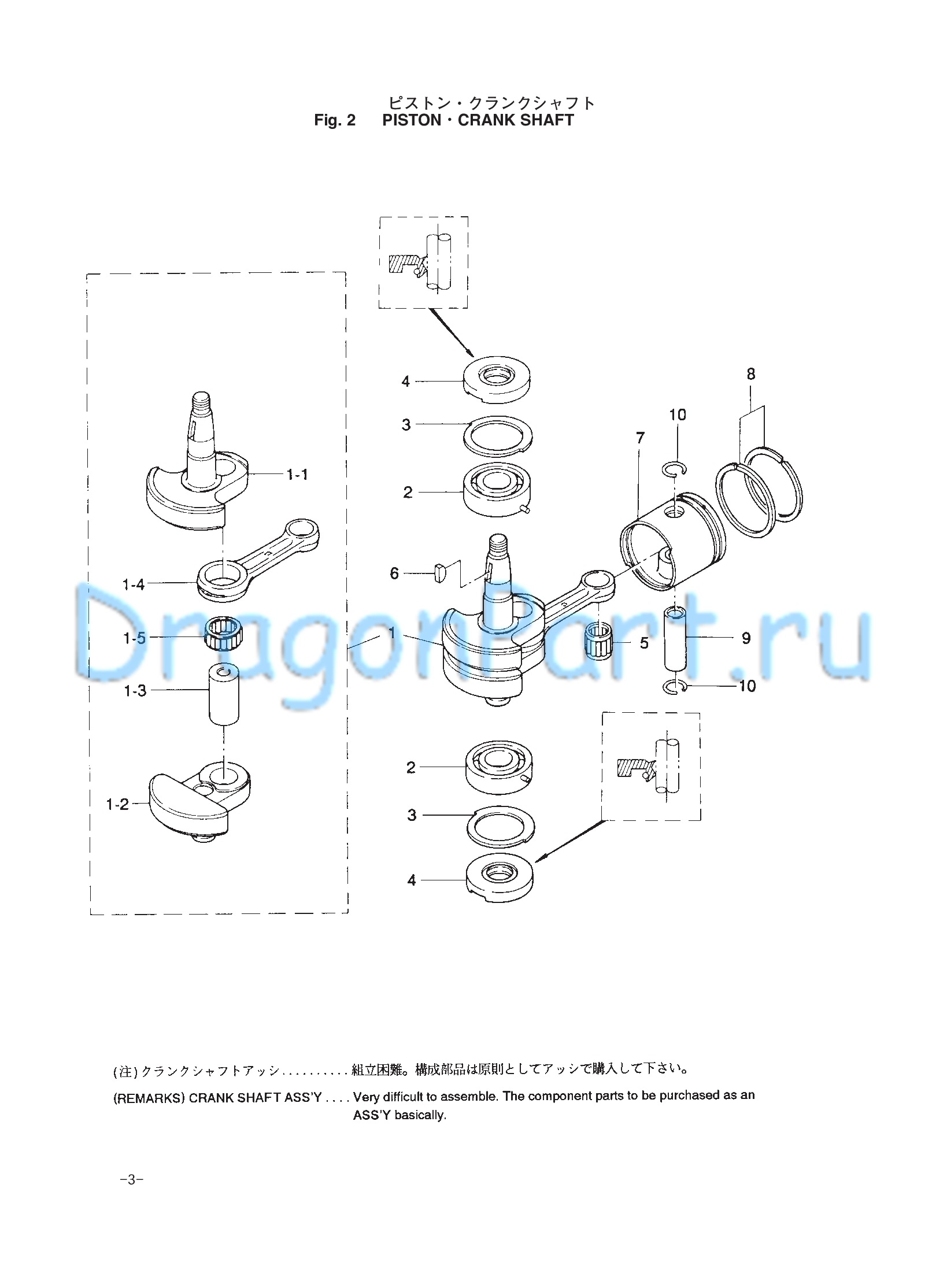

PISTON CRANK SHAFT для Tohatsu M4C - 2008 года выпуска
-
№АртикулНазвание
-
1369-00030-0 Crank Shaft Ass’vCrank Shaft Ass’v
-
1-1369-00031-0 * Crank Shaft “A”* Crank Shaft “A”
-
1-2369-00034-0 * Crank Shaft “D”* Crank Shaft “D”
-
1-3369-00061-0 * CrankPin* CrankPin
-
1-4369-00040-0 * Connecting Rod* Connecting Rod
-
1-5369-00043-0 * Needle Bearing, 20-26-12* Needle Bearing, 20-26-12
-
29603-3-6204 Ball Bearing, 6204Ball Bearing, 6204
-
3369-00115-0 Crank Shaft Thrust PlateCrank Shaft Thrust Plate
-
4369-00122-0 Oil Seal, 20-47-8Oil Seal, 20-47-8
-
5350-00042-0 Needle Bearing, 14-18-20
or 3M3-00042-0Needle Bearing, 14-18-20
or 3M3-00042-0 -
6338-00131-0 Magneto KeyMagneto Key
-
7369-00001-0 Piston (Std)Piston (Std)
-
7369-00004-0 Piston (0.5mm O/S)
OptionPiston (0.5mm O/S)
Option -
8351-00011-0 Piston Ring (Std)Piston Ring (Std)
-
8351-00014-0 Piston Ring (0.5mm O/S)
OptionPiston Ring (0.5mm O/S)
Option -
9369-00021-0 Piston PinPiston Pin
-
10350-00024-1 Piston Pin ClipPiston Pin Clip
-
1369-00030-0 Crank Shaft Ass’vCrank Shaft Ass’v
-
1-1369-00031-0 * Crank Shaft “A”* Crank Shaft “A”
-
1-2369-00034-0 * Crank Shaft “D”* Crank Shaft “D”
-
1-3369-00061-0 * CrankPin* CrankPin
-
1-4369-00040-0 * Connecting Rod* Connecting Rod
-
1-5369-00043-0 * Needle Bearing, 20-26-12* Needle Bearing, 20-26-12
-
29603-3-6204 Ball Bearing, 6204Ball Bearing, 6204
-
3369-00115-0 Crank Shaft Thrust PlateCrank Shaft Thrust Plate
-
4369-00122-0 Oil Seal, 20-47-8Oil Seal, 20-47-8
-
5350-00042-0 Needle Bearing, 14-18-20
or 3M3-00042-0Needle Bearing, 14-18-20
or 3M3-00042-0 -
6338-00131-0 Magneto KeyMagneto Key
-
7369-00001-0 Piston (Std)Piston (Std)
-
7369-00004-0 Piston (0.5mm O/S)
OptionPiston (0.5mm O/S)
Option -
8351-00011-0 Piston Ring (Std)Piston Ring (Std)
-
8351-00014-0 Piston Ring (0.5mm O/S)
OptionPiston Ring (0.5mm O/S)
Option -
9369-00021-0 Piston PinPiston Pin
-
10350-00024-1 Piston Pin ClipPiston Pin Clip
