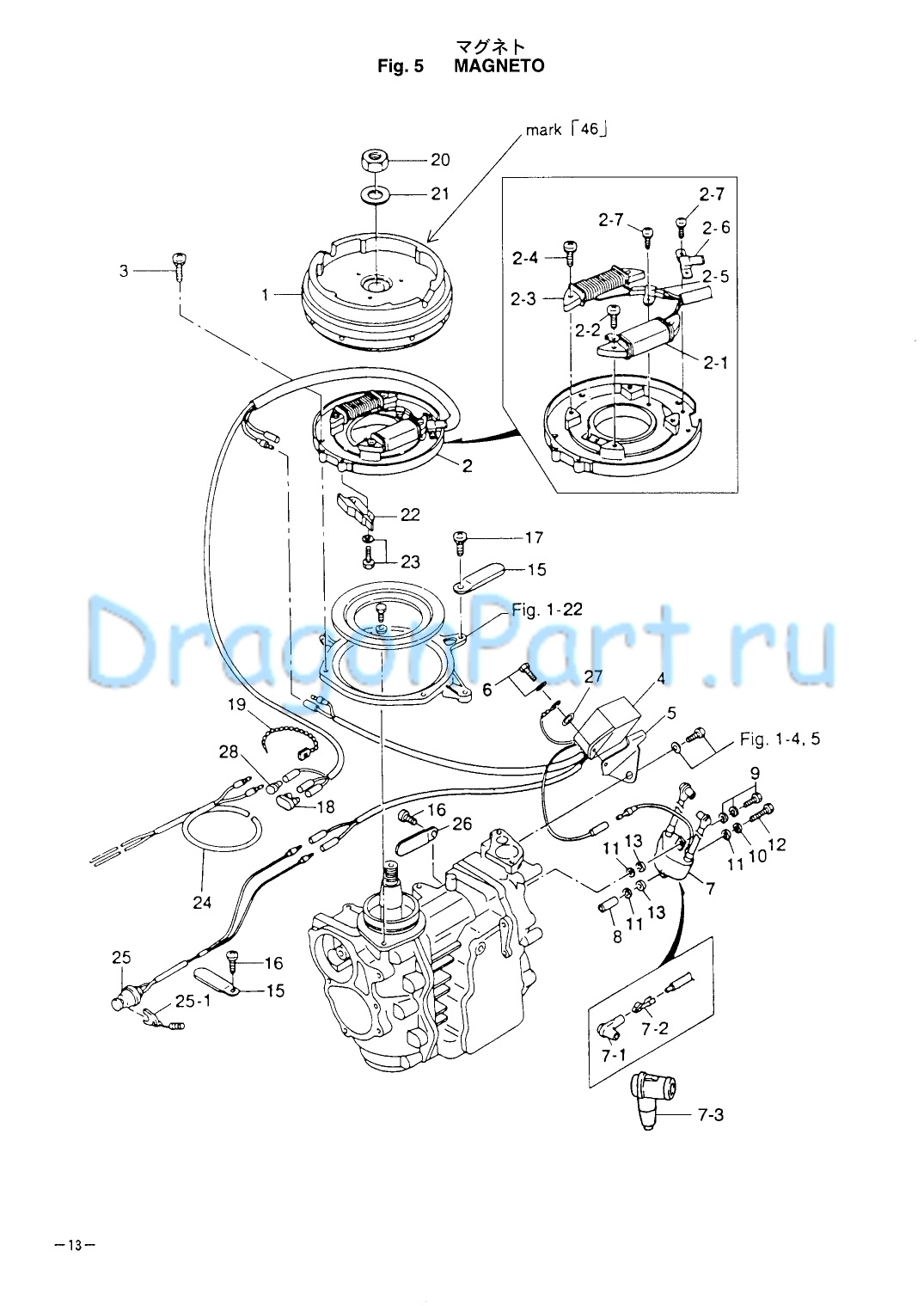

MAGNETO для Tohatsu M9.9D2 - 2008 года выпуска
-
№АртикулНазвание
-
13M3-06001-1 Flywheel Cup
FF 5114 markl 46J ◊18E2/15D2/9.9D2〜Flywheel Cup
FF 5114 markl 46J ◊18E2/15D2/9.9D2〜 -
23G2-06002-1 Coil Plate Assy
◊18E2/15D2/9.9D2〜Coil Plate Assy
◊18E2/15D2/9.9D2〜 -
2-13G3-06021-1 * Exciter Coil
◊ 18E2/15D2/9.9D2〜* Exciter Coil
◊ 18E2/15D2/9.9D2〜 -
2-2921521-6524 * Screw* Screw
-
2-33G2-06023-1 * Alternator Set
◊ 18E2/15D2/9.9D2〜* Alternator Set
◊ 18E2/15D2/9.9D2〜 -
2-4921521-6530 * Screw* Screw
-
2-53G2-06025-1 * Alternator Cord Holder* Alternator Cord Holder
-
2-6350-06025-0 * Magneto Cord Holder* Magneto Cord Holder
-
2-7921521-6406 * Screw* Screw
-
3921521-6510 ScrewScrew
-
43G2-06060-2 C.D. Unit
CU 2556 ◊ 18E2/15D2/9.9D2〜C.D. Unit
CU 2556 ◊ 18E2/15D2/9.9D2〜 -
53G2-06061-0 C.D. Unit Bracket
◊ 18E2/15D2/9.9D2〜C.D. Unit Bracket
◊ 18E2/15D2/9.9D2〜 -
6910103-5612 BoltBolt
-
73G2-06040-2 Ignition Coil (with Resistance Cap)Ignition Coil (with Resistance Cap)
-
7-13M2-06291-0 * Plug Cap* Plug Cap
-
7-23M2-06926-0 * Plug Cap Terminal* Plug Cap Terminal
-
7-33C7-06921-0 * Plug Cap ( with Resistance)* Plug Cap ( with Resistance)
-
8128-02605-1 Spacer, 6-8-28.5Spacer, 6-8-28.5
-
9910103-7625 BoltBolt
-
10941303-0600 Spring WasherSpring Washer
-
11940103-0600 WasherWasher
-
12910103-0655 BoltBolt
-
13151-33159-0 Gasket, 6.27 1TGasket, 6.27 1T
-
15309-06972-0 Clamp, 6.5-47.5PClamp, 6.5-47.5P
-
16921503-0610 ScrewScrew
-
17922521-6510 ScrewScrew
-
18353-76037-0 Cable Terminal PlugCable Terminal Plug
-
19336-76091-0 Lead Wire BandLead Wire Band
-
20931121-1600 Nut, 16P-1.5 (New)
# 031474XD〜 ClockwiseNut, 16P-1.5 (New)
# 031474XD〜 Clockwise -
20334-00132-0 Nut, 16P-1.5L(Old)
027583XD CounterclockwiseNut, 16P-1.5L(Old)
027583XD Counterclockwise -
21334-00133-0 Washer, 17-30-1.6Washer, 17-30-1.6
-
22364-63718-0 Throttle CamThrottle Cam
-
23910103-5514 BoltBolt
-
24369-76167-0 Extension Cord
OptionExtension Cord
Option -
25398-06830-0 Stop SwitchStop Switch
-
25-1353-06821-0 * Stop Switch Lanyard* Stop Switch Lanyard
-
26398-06972-0 Clamp, 6.5-67PClamp, 6.5-67P
-
273R0-66308-0 Washer, 6-16-1.5
or 3C8-66308-0Washer, 6-16-1.5
or 3C8-66308-0 -
283A3-76037-0 Cable Terminal PlugCable Terminal Plug
