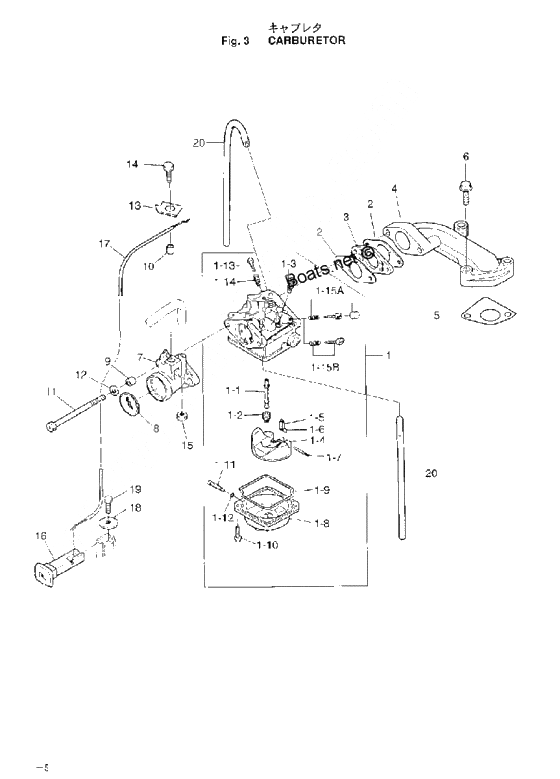

Carburetor для Tohatsu MFS2A - 2008 года выпуска
-
№АртикулНазвание
-
1-10922503-6412 Stud BoltStud Bolt
-
1-113H6-03292-0 Drain ScrewDrain Screw
-
1-123H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
1-133H6-03265-0 Stop ScrewStop Screw
-
1-143H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
1-15A3AS-03266-0 Pilot screw setPilot screw set
-
1-33R1-03254-0 Pilot Jet #38Pilot Jet #38
-
1-43AB-03231-0 Float f2.5a/3.5aFloat f2.5a/3.5a
-
1-53H6-03240-0 Float ValveFloat Valve
-
1-63H6-03244-0 ClipClip
-
1-73H6-03232-0 Aym Pin, FloatAym Pin, Float
-
1-83H6-03221-0 Float ChamberFloat Chamber
-
1-93H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
23H6-02011-0 Gasket, carburetorGasket, carburetor
-
33H6-03952-1 InsulatorInsulator
-
43ABB02091-0 Intake manifoldIntake manifold
-
53AB-02104-0 Intake manifold gasketIntake manifold gasket
-
73H6-02411-0 Air SilencerAir Silencer
-
83H6-02603-0 Flam TrapFlam Trap
-
93A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
103H6-76079-0 Collar 6.2-9-7Collar 6.2-9-7
-
12940113-0600 Washer
or 940103-0600Washer
or 940103-0600 -
133H6-63505-0 Holder, CableHolder, Cable
-
163H6-67151-0 Choke RodChoke Rod
-
173AB-67197-0 Choke link cableChoke link cable
-
18346-67115-0 WasherWasher
