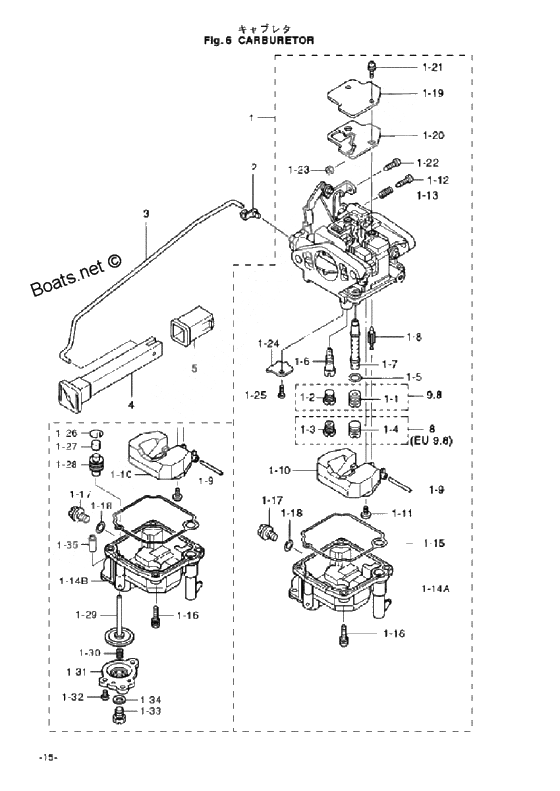

Carburetor для Tohatsu MFS9.8A3 - 2008 года выпуска
-
№АртикулНазвание
-
13V2-03100-2 Carburetor
# 036639XD- for MF & EF/EFT (Mark: 3V2FB)Carburetor
# 036639XD- for MF & EF/EFT (Mark: 3V2FB) -
13V2-03133-2 Carburetor
# 043290XD- for EP/EPT (Mark: 3V2PB)Carburetor
# 043290XD- for EP/EPT (Mark: 3V2PB) -
1-13V2-04492-0 Main Jet #92
, Old Part No. 3V2-04692-0Main Jet #92
, Old Part No. 3V2-04692-0 -
1-103C8-03125-0 FloatFloat
-
1-11921703-0406 Stud BoltStud Bolt
-
1-123V2-03179-0 Stop Screw
, # 036546XD-, L=18Stop Screw
, # 036546XD-, L=18 -
1-133V2-03157-0 Spring Washer
, # 036546XD-, L=14Spring Washer
, # 036546XD-, L=14 -
1-14A3V1-03120-0 Float ChamberFloat Chamber
-
1-153V1-03121-0 Gasket,float ChamberGasket,float Chamber
-
1-16922503-6412 Stud BoltStud Bolt
-
1-173V1-03192-0 Drain ScrewDrain Screw
-
1-183V1-03193-0 O-RingO-Ring
-
1-193C8-03181-0 Cover PlateCover Plate
-
1-23V2-03169-0 PlugPlug
-
1-203V1-03182-0 Gasket,Cabretor CoverGasket,Cabretor Cover
-
1-21922503-6410 Stud BoltStud Bolt
-
1-223V1-03179-0 Stop Screw
, L=15, for MF & EF/EFTStop Screw
, L=15, for MF & EF/EFT -
1-233V1-03191-0 Nut
, for MF & EF/EFTNut
, for MF & EF/EFT -
1-243V1-03128-0 PlatePlate
-
1-53V1-03116-0 O-Ring
, Old Part No. 3V1-03194-0O-Ring
, Old Part No. 3V1-03194-0 -
1-63V1-04539-0 Slow Jet#39
, Old Part No. 3V1-04739-0Slow Jet#39
, Old Part No. 3V1-04739-0 -
1-73V2-03141-0 Main NozzleMain Nozzle
-
1-83V1-03147-1 Float Valve
, # 010322XD-Float Valve
, # 010322XD- -
1-93C8-03126-0 Float Arm PinFloat Arm Pin
-
2346-67196-1 Rod Snap 3-b
for MF & EF/EFTRod Snap 3-b
for MF & EF/EFT -
33Y3-67192-0 Choke Rod
9.8A3/8A3 # 026832XE- for MF & EF/EFTChoke Rod
9.8A3/8A3 # 026832XE- for MF & EF/EFT -
43C8-67151-1 Choke Rod
# 036546XD- for MF & EF/EFTChoke Rod
# 036546XD- for MF & EF/EFT -
53C8-67156-0 Bushing, Chrok Nobu
for MF & EF/EFTBushing, Chrok Nobu
for MF & EF/EFT
