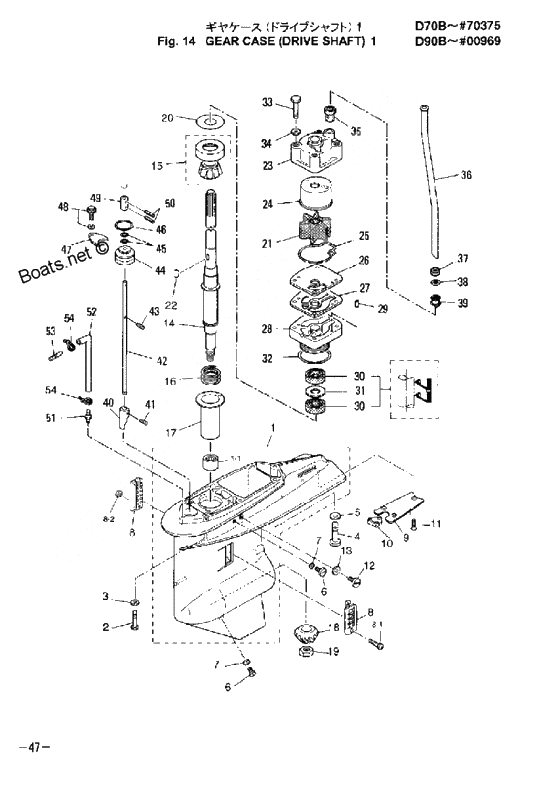

Gear case (drive shaft) 1 d70b-#70375 для Tohatsu MD70B - 2009 года выпуска
-
№АртикулНазвание
-
13B7S60000-3 Gear case ass'y
-70B # 70375, -90B # 00969Gear case ass'y
-70B # 70375, -90B # 00969 -
1-13B7-60102-0 Needle bearing, 25.4-33.3-31.8Needle bearing, 25.4-33.3-31.8
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83C7-60235-1 Water Strainer SetWater Strainer Set
-
8-1921503-0445 Stud BoltStud Bolt
-
8-2930403-0400 Nylon NutNylon Nut
-
93B7-60012-1 Plate, Gear CasePlate, Gear Case
-
103B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
123B7-60015-1 Water PlugWater Plug
-
133B7-60016-0 O-RingO-Ring
-
143B7-64302-0 Drive shaft l
-70B # 70375, -90B # 00969Drive shaft l
-70B # 70375, -90B # 00969 -
143B7-64303-0 Drive Shaft UL
-70B # 70375, -90B # 00969Drive Shaft UL
-70B # 70375, -90B # 00969 -
153B7-60213-0 Taper roller bearing, 32305
-70B # 70375, -90B # 00969Taper roller bearing, 32305
-70B # 70375, -90B # 00969 -
16353-64327-0 Пружина вала
-70B # 70375, -90B # 00969Пружина вала
-70B # 70375, -90B # 00969 -
173B7-64328-0 Guide, drive shaft
-70B # 70375, -90B # 00969Guide, drive shaft
-70B # 70375, -90B # 00969 -
183J5-64020-0 Bevel Gear BBevel Gear B
-
193B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
20353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
20353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
20353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
213C7-65021-1 Impeller water pumpImpeller water pump
-
223B7-65022-0 Key, water pump impellerKey, water pump impeller
-
233C7-65016-0 Water Pump CaseWater Pump Case
-
243C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
253C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
263C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
273C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
283C7-65017-2 Pump Case LowerPump Case Lower
-
29334-65012-0 СтопорСтопор
-
303C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
31346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
323B7-65015-0 O-RingO-Ring
-
353C7-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
363C7-65110-0 Water Pipe L
for Transom L""Water Pipe L
for Transom L"" -
363C7-65120-0 Water Pipe UL
for Transom UL""Water Pipe UL
for Transom UL"" -
373C7-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
38345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
393C7-65204-0 Locking Rubber Water PipeLocking Rubber Water Pipe
-
403B7-66011-1 Clutch CamClutch Cam
-
41951403-3516 New partNew part
-
423B7-66013-1 Cam Rod L
for Transom L""Cam Rod L
for Transom L"" -
423B7-66014-1 Cam Rod UL
for Transom UL""Cam Rod UL
for Transom UL"" -
43951403-3510 New partNew part
-
443B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
45345-66021-0 O-RingO-Ring
-
463B7-66023-0 O-RingO-Ring
-
47353-66024-0 StopperStopper
-
48910103-6612 BoltBolt
-
49353-66241-1 New partNew part
-
513C7-60017-0 Nipple 6-1/8
for Speedometer OPTNipple 6-1/8
for Speedometer OPT -
533C7-60018-0 Золотник
OPTЗолотник
OPT -
54353-84398-0 Band Lead Wire
OPTBand Lead Wire
OPT
