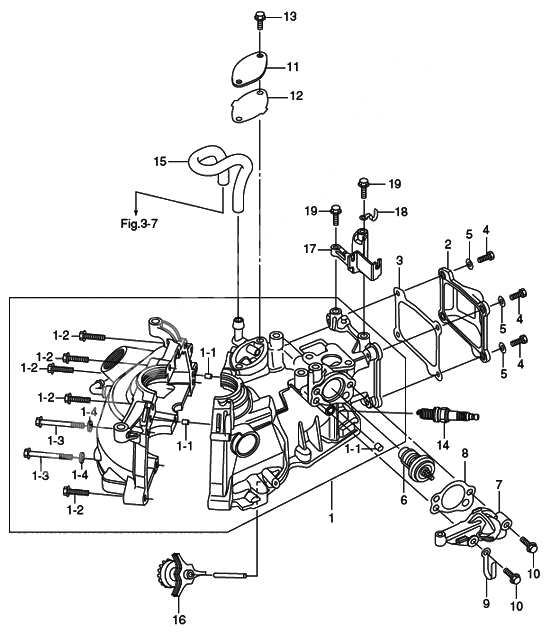

Cylinder-crankcase для Tohatsu MFS2.5B - 2009 года выпуска
-
№АртикулНазвание
-
13GTB01100-1 Cylinder crankcase
3.5B/2.5B/2B~ / WITH NIPPLECylinder crankcase
3.5B/2.5B/2B~ / WITH NIPPLE -
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-29101F4-5635 Bolt & washer
OR 910114-5635Bolt & washer
OR 910114-5635 -
9101E3-5635 Bolt & washerBolt & washer
-
1-39161F9-0675 OR 916119-0675
OR 916119-0675OR 916119-0675
OR 916119-0675 -
1-49401E3-0600 Washer
OR 940113-0600Washer
OR 940113-0600 -
940113-0600 WasherWasher
-
23ABB01021-0 Cylinder head coverCylinder head cover
-
33AB-01024-1 3AB-01024-13AB-01024-1
-
4910121-0616 Bolt
OR 910103-0616Bolt
OR 910103-0616 -
53C8-66308-0 New partNew part
-
63H6-01030-0 Thermostat
MARK: 5B OR 52BThermostat
MARK: 5B OR 52B -
73ABB01031-0 Thermostat capThermostat cap
-
83AB-01032-0 Thermostat cap gasketThermostat cap gasket
-
9398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
109101E3-5630 Bolt
OR 910113-5630Bolt
OR 910113-5630 -
910103-5630 BoltBolt
-
113AB-07431-0 Breather chamber coverBreather chamber cover
-
123AB-07432-0 Breather chamber cover gasketBreather chamber cover gasket
-
139101E3-5616 Bolt & washer
OR 910113-5616Bolt & washer
OR 910113-5616 -
149701-1-1103 Spark plug (dcpr6e)
NGK: DCPR6ESpark plug (dcpr6e)
NGK: DCPR6E -
153AB-07435-0 Breather hoseBreather hose
-
163AB-07640-0 SlingerSlinger
-
173ABB63508-0 3ABB63508-03ABB63508-0
-
18398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
199101E3-5625 Bolt & washer
OR 910113-5625Bolt & washer
OR 910113-5625
