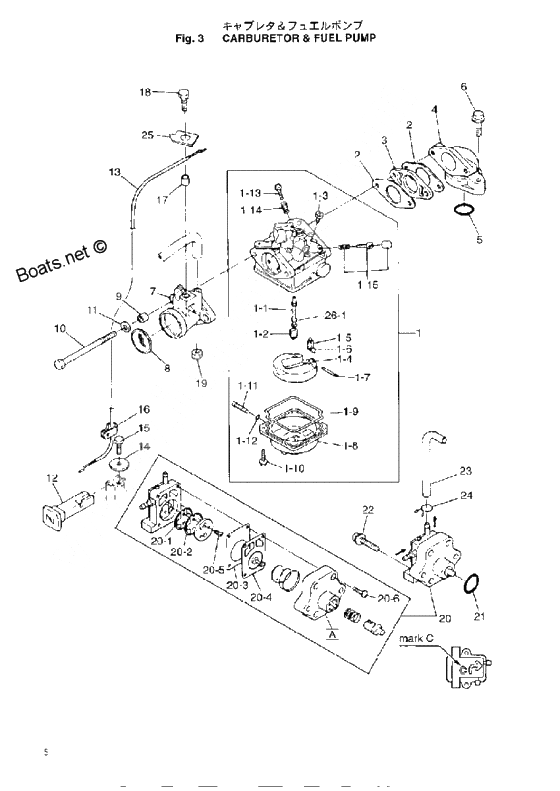

Carburator & fuel pump для Tohatsu MFS4B - 2009 года выпуска
-
№АртикулНазвание
-
13AT-03200-0 Carburetor assy mfs/nsf4b
3ATACarburetor assy mfs/nsf4b
3ATA -
13H9-03200-1 Carburetor ass'y
3H9CCarburetor ass'y
3H9C -
1-13V2-03141-0 Main NozzleMain Nozzle
-
1-13AT-03252-0 Main nozzle f4bMain nozzle f4b
-
1-10922503-6412 Stud BoltStud Bolt
-
1-113H6-03292-0 Drain ScrewDrain Screw
-
1-123H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
1-133H6-03265-0 Stop ScrewStop Screw
-
1-143H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
1-153H6-03266-0 Pilot screw setPilot screw set
-
1-153AS-03266-0 Pilot screw setPilot screw set
-
1-23H9-03251-0 Main jet #60Main jet #60
-
1-33R6-03254-0 Pilot Jet #42(High Alt)Pilot Jet #42(High Alt)
-
1-43H6-03231-0 FloatFloat
-
1-53H6-03240-0 Float ValveFloat Valve
-
1-63H6-03244-0 ClipClip
-
1-73H6-03232-0 Aym Pin, FloatAym Pin, Float
-
1-83H6-03221-0 Float ChamberFloat Chamber
-
1-93H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
23H6-02011-0 Gasket, carburetorGasket, carburetor
-
33H6-03952-1 InsulatorInsulator
-
43H6B02010-0 Inlet ManifoldInlet Manifold
-
53H6-02104-0 O-RingO-Ring
-
6910124-5625 Bolt
or 910114-5625Bolt
or 910114-5625 -
6910124-5630 Bolt
or 910114-5630Bolt
or 910114-5630 -
73H6-02411-0 Air SilencerAir Silencer
-
83H6-02603-0 Flam TrapFlam Trap
-
93A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
11940113-0600 Washer
or 940103-0600Washer
or 940103-0600 -
123H6-67151-0 Choke RodChoke Rod
-
133H6-67192-0 Wire,choke linkWire,choke link
-
14346-67115-0 WasherWasher
-
16345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
173H6-76079-0 Collar 6.2-9-7Collar 6.2-9-7
-
203H6-04000-3 Fuel Pump Ass'y
005816XDFuel Pump Ass'y
005816XD -
20-13H6-04014-1 Check ValveCheck Valve
-
20-23H6-04044-0 Check ValveCheck Valve
-
20-33H6-04028-0 O-RingO-Ring
-
20-43H6-04005-0 DiaphragmDiaphragm
-
20-5921603-0308 Stud BoltStud Bolt
-
20-6922503-6418 Stud BoltStud Bolt
-
213H6-07422-0 New partNew part
-
22921503-7630 Stud BoltStud Bolt
-
233H6-02204-0 Fuel pipe,4.5l-115Fuel pipe,4.5l-115
-
24338-02215-0 ClipClip
-
253H6-63505-0 Holder, CableHolder, Cable
