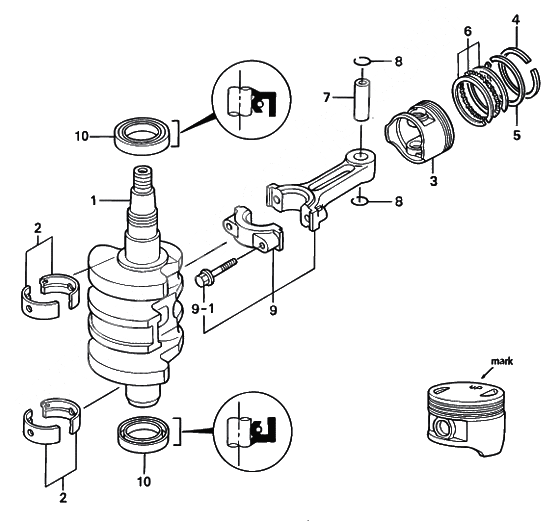

Piston & crank shaft для Tohatsu MFS9.8A3 - 2009 года выпуска
-
№АртикулНазвание
-
13V1-00030-1 Crankshaft Ass'y
# 010322XD~Crankshaft Ass'y
# 010322XD~ -
23V1-07407-0 Bearing(Black)
T=1.5 / 0 / -0.006Bearing(Black)
T=1.5 / 0 / -0.006 -
23V1-07408-0 Bearring(brown)
T=1.5 / -0.006 / -0.012Bearring(brown)
T=1.5 / -0.006 / -0.012 -
33V1-00001-1 Piston (std)Piston (std)
-
3V1-00001-0 Piston (std)Piston (std)
-
33V1-00004-1 Piston (0.5mm o/z)
OPTIONPiston (0.5mm o/z)
OPTION -
3V1-00004-0 Piston (0.5mm o/z)Piston (0.5mm o/z)
-
43V1-00011-0 Piston Ring TOPPiston Ring TOP
-
43V1-00014-0 Piston Ring 0.5mm O/S
OPTIONPiston Ring 0.5mm O/S
OPTION -
53V1-00012-0 Piston Ring 2ndPiston Ring 2nd
-
53V1-00015-0 Piston Ring 2nd (0.5mm O/S)
OPTIONPiston Ring 2nd (0.5mm O/S)
OPTION -
63V1-00013-0 Piston Ring OilPiston Ring Oil
-
63V1-00016-0 Piston Ring Oil 0.5mm O/S
OPTIONPiston Ring Oil 0.5mm O/S
OPTION -
7332-00021-1 Piston PinPiston Pin
-
332-00021-0 Piston PinPiston Pin
-
8350-00024-1 Clip piston pinClip piston pin
-
93V1-00040-0 Connecting RodConnecting Rod
-
9-13H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
103V1-00121-0 Oil Seal 30-45-8Oil Seal 30-45-8
