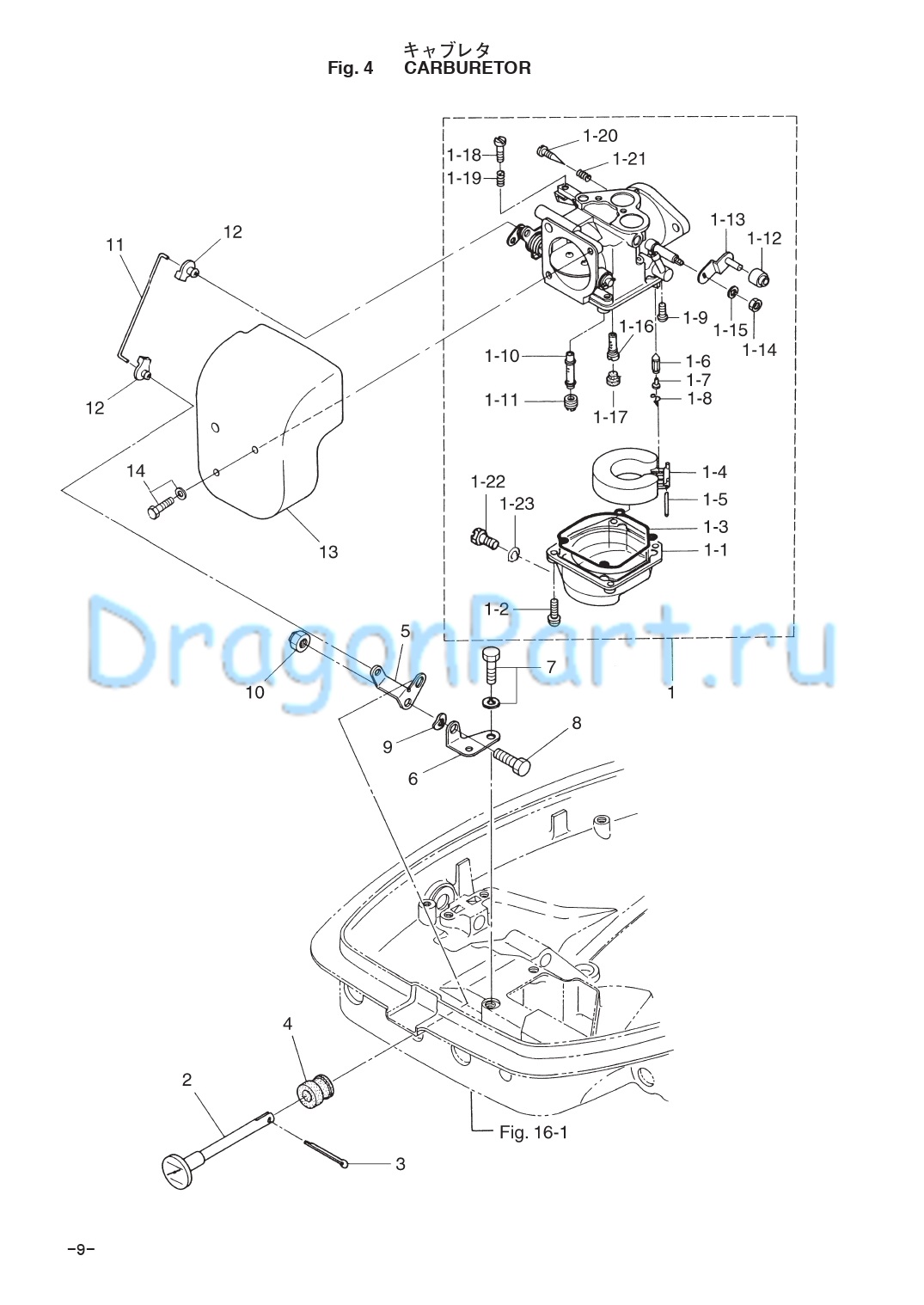

CARBURETOR для Tohatsu M25C3 - 2010 года выпуска
-
№АртикулНазвание
-
13P0-03200-0 Carburetor B03E
30A4 # 35175-25C3 # 50039〜Carburetor B03E
30A4 # 35175-25C3 # 50039〜 -
1-1353-03221-0 * Float Chamber* Float Chamber
-
1-2922503-6414 * Screw* Screw
-
1-3346-03222-0 * Float Chamber O-Ring* Float Chamber O-Ring
-
1-4346-03231-0 * Float* Float
-
1-5346-03232-0 * Float Arm Pin* Float Arm Pin
-
1-63B7-03240-0 * Float Valve* Float Valve
-
1-7334-03242-0 * Valve Pin* Valve Pin
-
1-8344-03244-0 * Clip* Clip
-
1-93F3-03234-0 * Screw* Screw
-
1-103A1-03252-0 * Main Nozzle # 100
30A3 # 21031〜 25C2 # 27906〜* Main Nozzle # 100
30A3 # 21031〜 25C2 # 27906〜 -
1-113A1-03251-0 * Main Jet# 155
30A3 # 21031〜 25C2 # 27906〜* Main Jet# 155
30A3 # 21031〜 25C2 # 27906〜 -
1-12346-03264-0 * Collar* Collar
-
1-13346-03272-0 * Throttle Lever* Throttle Lever
-
1-14930131-0500 * Nut* Nut
-
1-15941332-0500 * Spring Washer* Spring Washer
-
1-163A1-03276-0 * Slow Jet # 85
30A3 # 21031〜 25C2 # 27906〜* Slow Jet # 85
30A3 # 21031〜 25C2 # 27906〜 -
1-17346-03256-0 * Rubber Cap* Rubber Cap
-
1-18346-03265-0 * Stop Screw* Stop Screw
-
1-19346-03267-0 * Spring “A”* Spring “A”
-
1-20346-03266-0 * Adjusting Screw* Adjusting Screw
-
1-21346-03268-0 * Spring “B”* Spring “B”
-
1-22345-03292-0 * Drain Screw* Drain Screw
-
1-23336-03293-0 * Drain Screw O-Ring* Drain Screw O-Ring
-
2346-67151-1 Choke RodChoke Rod
-
3951503-0212 Split Pin, 2-12Split Pin, 2-12
-
4346-67104-0 Choke Rod BushingChoke Rod Bushing
-
5346-67152-0 Choke LeverChoke Lever
-
6346-67153-0 Choke Lever BracketChoke Lever Bracket
-
7910103-6612 BoltBolt
-
8910103-0614 BoltBolt
-
9941403-0600 Wave Washer, d二6Wave Washer, d二6
-
10930403-0600 Nvlon Nut, 6P-1.0Nvlon Nut, 6P-1.0
-
11346-67191-1 Choke Link RodChoke Link Rod
-
12346-67196-1 Rod Snap, 03-BRod Snap, 03-B
-
13346-02411-1 Intake Silencer
30A4 # 35175-25C3 # 50039〜Intake Silencer
30A4 # 35175-25C3 # 50039〜 -
14910121-5614 BoltBolt
