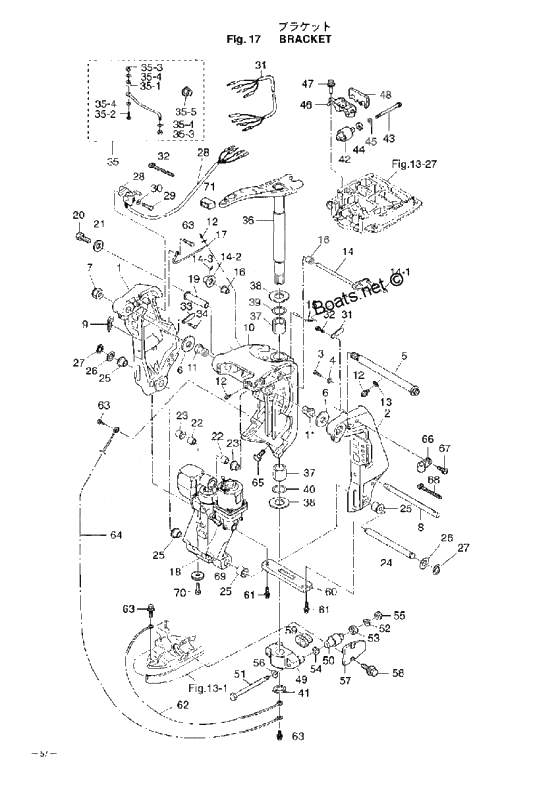

Bracket для Tohatsu MD115A - 2010 года выпуска
-
№АртикулНазвание
-
13E0Q62112-0 Stern bracket r (amb)
StarboardStern bracket r (amb)
Starboard -
23E0Q62113-1 Stern bracket l (amb)
PortStern bracket l (amb)
Port -
3910213-1020 BoltBolt
-
53E0-62191-1 Bracket Bolt Ass'y
Bracket BoltBracket Bolt Ass'y
Bracket Bolt -
63E0-62116-1 WasherWasher
-
7346-62124-1 Bracket nutBracket nut
-
83E0-62121-1 Thrust RodThrust Rod
-
93B7-62129-1 Pin, Thrust RodPin, Thrust Rod
-
103E0Q62313-0 Swivel bracket assy.
with Pin (3E0-62475-0)Swivel bracket assy.
with Pin (3E0-62475-0) -
113E0-62126-0 Bushing Bracket BoltBushing Bracket Bolt
-
12344-67177-0 МасленкаМасленка
-
13940113-0600 WasherWasher
-
143Y9-62431-0 Tilt stopper assyTilt stopper assy
-
3Y9-62431-1 Tilt stopper assyTilt stopper assy
-
14-13Y9-62433-0 Tilt stopper gripTilt stopper grip
-
14-2332-61315-0 WasherWasher
-
14-3951403-3516 New partNew part
-
153E0-62473-1 Spring Tilt StopperSpring Tilt Stopper
-
16353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
17398-62396-1 Ground Wire
L=130Ground Wire
L=130 -
183T1-77150-1 Power trim & tilt assy d115Power trim & tilt assy d115
-
193C8-77071-0 Upper Cylinder PinUpper Cylinder Pin
-
20345-05122-1 Washer rachetWasher rachet
-
223C8-77075-0 New partNew part
-
233E0-77076-0 BushingBushing
-
243E0-77101-0 Cylinder pin lowerCylinder pin lower
-
253E0-77103-0 BushingBushing
-
26346-62412-1 WasherWasher
-
27945103-2200 ClipClip
-
283F3-72574-1 Гидроцилиндр
L=1700Гидроцилиндр
L=1700 -
303C8-66308-0 New partNew part
-
313F3-72573-1 Extension cord trim sender
L=6000Extension cord trim sender
L=6000 -
32353-84398-0 Band Lead WireBand Lead Wire
-
33309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
353E0-84905-0 Drag link assyDrag link assy
-
35-13E0-84914-0 Spacer Drag Link HSpacer Drag Link H
-
35-23E0-84917-0 Bolt 3/8-50Bolt 3/8-50
-
35-3353-84918-0 Nylon Nut 3/8Nylon Nut 3/8
-
35-4353-84916-0 WasherWasher
-
35-53F3-84908-0 Seal Ring Drag LinkSeal Ring Drag Link
-
363C7Q62010-0 Steering shaft (amb)Steering shaft (amb)
-
373B7-62417-0 BushingBushing
-
383B7-62423-1 Thrust PlateThrust Plate
-
393B7-62414-0 Seal Ring, Steering ShaftSeal Ring, Steering Shaft
-
403B7-62415-0 O-RingO-Ring
-
41945103-3200 C-RingC-Ring
-
423C7-61301-0 Upper,Mount RubberUpper,Mount Rubber
-
433C7-61307-1 Bolt upper mount rubberBolt upper mount rubber
-
443C7-61338-0 Damper RubberDamper Rubber
-
453C7-61335-0 WasherWasher
-
463C7Q61341-1 Mount holding plate (upper)
Rubber Mount Cap (Upper)Mount holding plate (upper)
Rubber Mount Cap (Upper) -
483C7-61339-0 Damper Upper Mount RubberDamper Upper Mount Rubber
-
493C7Q61411-2 Mount bracketMount bracket
-
50353-61302-1 Lower Mount RubberLower Mount Rubber
-
51353-61321-3 BoltBolt
-
52353-61334-0 WasherWasher
-
533C7-61338-0 Damper RubberDamper Rubber
-
54353-61315-1 WasherWasher
-
553B7-61324-0 NutNut
-
573B7Q61342-0 Cap lower mount rubber (amb)
Rubber Mount Cap (Lower)Cap lower mount rubber (amb)
Rubber Mount Cap (Lower) -
583N4-61343-0 Bolt,8-25Bolt,8-25
-
593C7-61336-0 Damper RubberDamper Rubber
-
603C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
61910103-6630 BoltBolt
-
623A3-62396-1 New part
L=110New part
L=110 -
643C8-62396-1 Ground Wire
L=210Ground Wire
L=210 -
653B7-77085-1 Bolt 12-20Bolt 12-20
-
66345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
67921503-5612 Stud BoltStud Bolt
-
683T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
69369-60218-1 New partNew part
-
713B7-62096-0 Damper Rubber BDamper Rubber B
