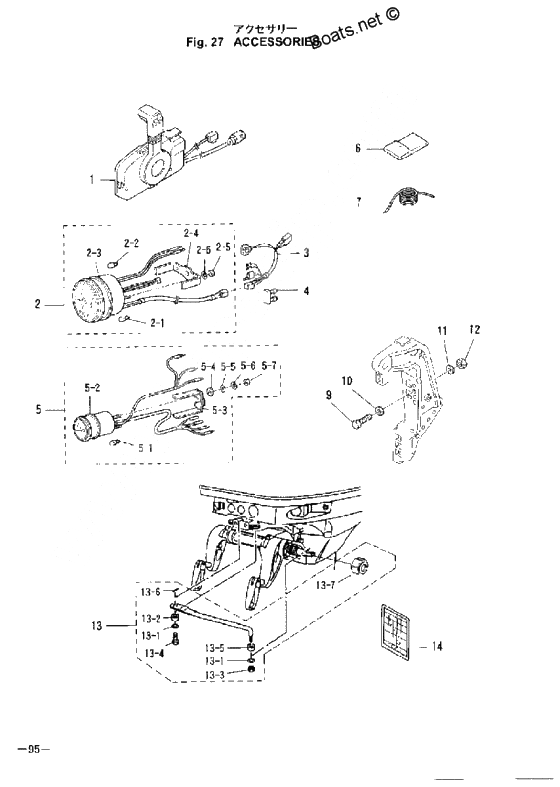

Accessories для Tohatsu MD50B - 2010 года выпуска
-
№АртикулНазвание
-
13T5-84500-0 Remote control box ass'y(rc5f)
Alteration 3U5-84500-0 , for P Type, L=8000Remote control box ass'y(rc5f)
Alteration 3U5-84500-0 , for P Type, L=8000 -
23T5-72640-0 ТАХОМЕТР
Alteration 3U5-72640-0 , for P Type, L=8000ТАХОМЕТР
Alteration 3U5-72640-0 , for P Type, L=8000 -
2-33B7-72658-0 Bulb, Meter 12V-1.7W
, for P Type, L=8000Bulb, Meter 12V-1.7W
, for P Type, L=8000 -
2-33B7-72659-0 Bulb, Meter 12V-1.7W
, for P Type, L=8000Bulb, Meter 12V-1.7W
, for P Type, L=8000 -
2-43B7-72656-0 Damper, Meter
, for P Type, L=8000Damper, Meter
, for P Type, L=8000 -
2-53B7-72661-0 Plate, Fitting
, for P Type, L=8000Plate, Fitting
, for P Type, L=8000 -
3930203-0500 Nut
for P Type, L=8000Nut
for P Type, L=8000 -
4941303-0500 Spring Washer
for P Type, L=8000Spring Washer
for P Type, L=8000 -
53E0-72571-0 Trim meter ass'y
for P Type, L=8000Trim meter ass'y
for P Type, L=8000 -
5-23B7-72655-0 Damper, Meter
, for P Type, L=8000Damper, Meter
, for P Type, L=8000 -
5-43B7-72666-0 Insulated washer
, for P Type, L=8000Insulated washer
, for P Type, L=8000 -
5-5940103-0400 Washer
, for P Type, L=8000Washer
, for P Type, L=8000 -
5-6941303-0400 Spring Washer
, for P Type, L=8000Spring Washer
, for P Type, L=8000 -
5-7930203-0400 Nut
, for P Type, L=8000Nut
, for P Type, L=8000 -
63H6-72100-0 TOOL ASS'YTOOL ASS'Y
-
73B7-72201-0 КанатКанат
-
93C7-62133-2 Bolt
L=105Bolt
L=105 -
10353-61334-0 WasherWasher
-
11940103-1200 Washer
or 940113-1200Washer
or 940113-1200 -
123C7-62139-1 Nut,P1.25Nut,P1.25
-
133C8-84910-2 Drag Link Ass'y
for P TypeDrag Link Ass'y
for P Type -
13-1353-84916-0 Washer
, for P TypeWasher
, for P Type -
13-23C8-84914-1 Collar 9.6-13-6.5
, for P TypeCollar 9.6-13-6.5
, for P Type -
13-3353-84918-0 Nylon Nut 3/8
, for P TypeNylon Nut 3/8
, for P Type -
13-43C8-84917-0 Bolt 3/8-19
, for P TypeBolt 3/8-19
, for P Type -
13-53C8-84916-0 Collar 9.6-19-6
, for P TypeCollar 9.6-19-6
, for P Type -
13-6951503-0215 Split Pin
, for P TypeSplit Pin
, for P Type -
13-73F3-84908-0 Seal Ring Drag Link
, for P TypeSeal Ring Drag Link
, for P Type -
143T5-72050-0 New partNew part
