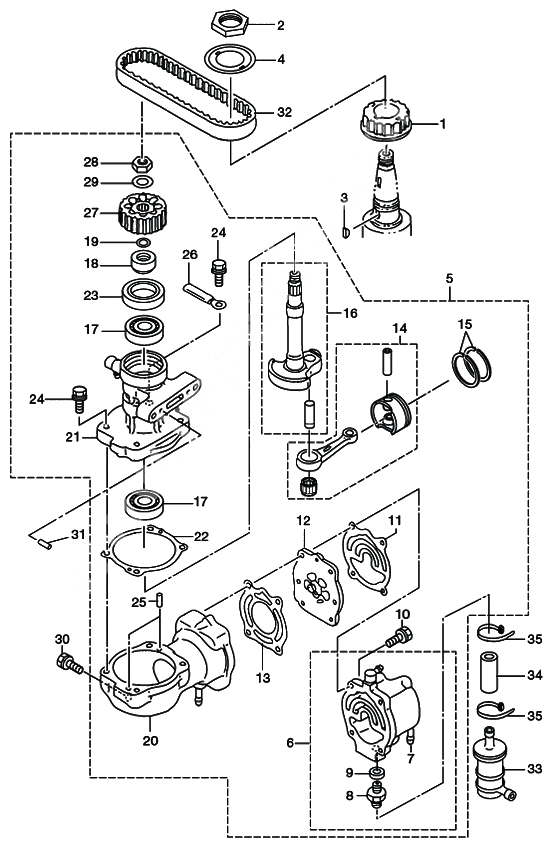

Air compressor для Tohatsu MD50B2 - 2010 года выпуска
-
№АртикулНазвание
-
13T5-10060-0 Drive PulleyDrive Pulley
-
23T5-10068-2 Nut pulleyNut pulley
-
33T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
43T5-10063-0 Belt GuideBelt Guide
-
53GFB10000-0 Air compressor assyAir compressor assy
-
63GFB10009-0 Head compressor assy (with nipple)Head compressor assy (with nipple)
-
73T1-02093-1 NippleNipple
-
83T5-04308-0 Adapter, Hose JointAdapter, Hose Joint
-
93T5-04309-0 Metal Washer, 10.2-17-2Metal Washer, 10.2-17-2
-
10910124-7630 BoltBolt
-
113T5-10012-1 Gasket compressor headGasket compressor head
-
123T5-10010-0 Valve Ass'yValve Ass'y
-
133T5-10019-0 Gasket, Valve SeatGasket, Valve Seat
-
143GF-87330-0 Piston rings & conn rod air compressorPiston rings & conn rod air compressor
-
153T5-10025-0 Piston Ring,Air ComprassorPiston Ring,Air Comprassor
-
163GF-87331-0 Crankshaft assy air compressorCrankshaft assy air compressor
-
179601-0-6203 Ball BearingBall Bearing
-
183T1-10042-0 Collar 13.5-25-13Collar 13.5-25-13
-
193T5-10046-0 O-RingO-Ring
-
203GFB10048-0 Cylinder compressorCylinder compressor
-
213T5B10051-0 Housing,CompressorHousing,Compressor
-
223T5-10054-0 Gasket, Compressor HousingGasket, Compressor Housing
-
233T5-10041-0 Oil Seal,25-45-8Oil Seal,25-45-8
-
24910103-5625 BoltBolt
-
25334-65012-0 СтопорСтопор
-
26309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
273T5-10062-0 Driven PulleyDriven Pulley
-
28309-00132-0 Nut, MagnetoNut, Magneto
-
293B7-01116-0 WasherWasher
-
30910103-7835 BoltBolt
-
31334-65012-0 СтопорСтопор
-
323T5-10061-0 Drive BeltDrive Belt
-
333GF-10130-0 Air filter md40/50b2/75/90c2/115a2 (tldi)Air filter md40/50b2/75/90c2/115a2 (tldi)
-
353T5-84398-0 Band Lead Wire 104Band Lead Wire 104
