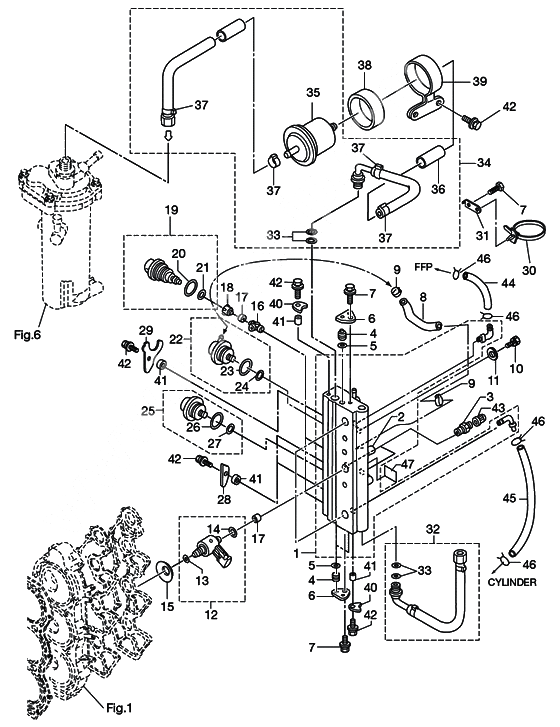

Air rail для Tohatsu MD75C2 - 2010 года выпуска
-
№АртикулНазвание
-
13FW-10080-0 Air rail assyAir rail assy
-
23T5-10166-0 L-NippleL-Nipple
-
33T5-10098-0 Valve Ass'yValve Ass'y
-
43T5-10167-0 Plug , 10.5Plug , 10.5
-
53T5-10164-1 O-ring,6.8-1.9O-ring,6.8-1.9
-
63T5-10165-0 Stopper, PlugStopper, Plug
-
7910103-5612 BoltBolt
-
898AY-45-105 Air hoseAir hose
-
93T5-10091-0 Clamp, 21/32Clamp, 21/32
-
10910103-0865 BoltBolt
-
11940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
123GF-10310-0 AIR INJECTOR COMPLETE
ORANGEAIR INJECTOR COMPLETE
ORANGE -
133T5-10317-0 O-RingO-Ring
-
143Y9-10311-1 O-ring 2.4-9.5 d40/50/70/90b/115a2
BROWNO-ring 2.4-9.5 d40/50/70/90b/115a2
BROWN -
153Y9-10312-0 Set Piece, Air InjectorSet Piece, Air Injector
-
163T5-10314-0 Inserting FuelB InjectorInserting FuelB Injector
-
173T5-10316-0 Seal, CompressionSeal, Compression
-
183T5-10315-0 Adapter, Fuel InjectorAdapter, Fuel Injector
-
193T5-10300-0 Fuel Injector
MARK: 37003 (BLUE)Fuel Injector
MARK: 37003 (BLUE) -
203T5-10304-0 O-RingO-Ring
-
213T5-10303-0 O-RingO-Ring
-
223T5-10148-0 Regulator, FuelRegulator, Fuel
-
233T5-10095-0 O-RingO-Ring
-
243T5-10094-0 O-RingO-Ring
-
253GF-10090-0 Regulator air d40/50b2d75/90c2/115a2 (orange)
650KPARegulator air d40/50b2d75/90c2/115a2 (orange)
650KPA -
263T5-10095-0 O-RingO-Ring
-
273T5-10094-0 O-RingO-Ring
-
283T5-10302-0 Plate, Fuel InjectorPlate, Fuel Injector
-
293Y9-10302-0 Holding PlateHolding Plate
-
303T1-84398-0 Lead wire band 170 (local purchase)Lead wire band 170 (local purchase)
-
313T1-76174-0 Stay lead wire bandStay lead wire band
-
323FW-10088-0 Air hose assyAir hose assy
-
333T5-10162-0 O-RingO-Ring
-
343FW-10089-0 Fuel hose assy (w/filter) l=543Fuel hose assy (w/filter) l=543
-
3FY-10089-0 Fuel hose assy (w/filter) l=543Fuel hose assy (w/filter) l=543
-
353T5B10143-0 Fuel Filter
FOR HIGH PRESSUREFuel Filter
FOR HIGH PRESSURE -
363Y7-06157-0 Protector l=210Protector l=210
-
373T5-10086-0 Clamp 21/32Clamp 21/32
-
383T5-10145-0 Rubber, Fuel FilterRubber, Fuel Filter
-
393FW-10144-0 Fuel filter bandFuel filter band
-
403T5-10169-0 Plate, NipplePlate, Nipple
-
413T5-10153-0 Collar, 6.7-12.7-3Collar, 6.7-12.7-3
-
42910103-5616 BoltBolt
-
433T5-10099-0 Cap, ValveCap, Valve
-
4498AB-5-0740 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4598AB-5-0230 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
46338-02215-0 ClipClip
-
473T5-72196-0 Lavel, Air ReilLavel, Air Reil
