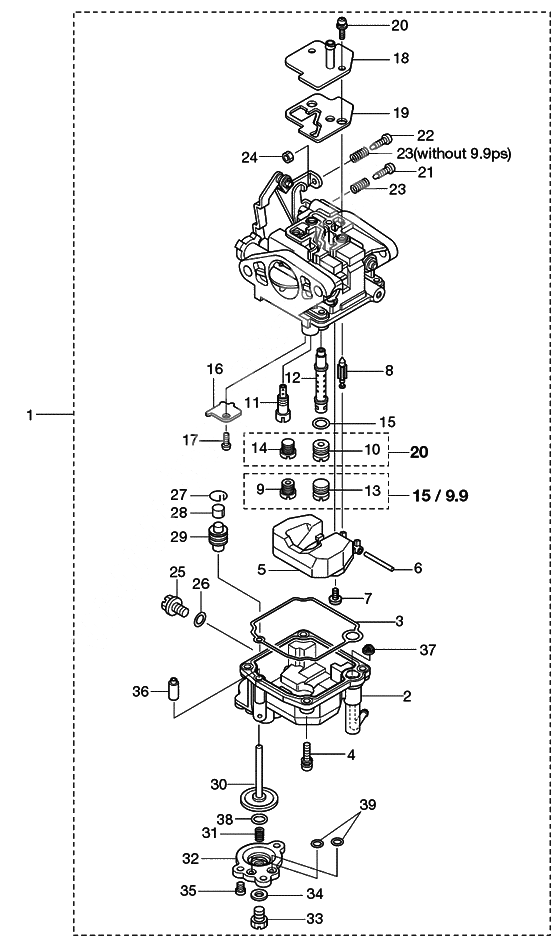

Carburetor для Tohatsu MFS20C - 2010 года выпуска
-
№АртикулНазвание
-
13BJ-03100-0 Carburetor F20C F type
20PS FOR MF/EF/EFT / 3BJF A2Carburetor F20C F type
20PS FOR MF/EF/EFT / 3BJF A2 -
13BJ-03133-0 Carburetor f20c (ep/ept)
20PS FOR EP/EPT / 3BJP A2Carburetor f20c (ep/ept)
20PS FOR EP/EPT / 3BJP A2 -
23BA-03120-0 Float chamber f15c/20c
15/20PSFloat chamber f15c/20c
15/20PS -
33BA-03121-0 Float chamber gasket
15/20PSFloat chamber gasket
15/20PS -
4922503-0413 Screw
15/20PSScrew
15/20PS -
53C8-03125-0 FloatFloat
-
63C8-03126-0 Float Arm PinFloat Arm Pin
-
7921503-0408 Stud Bolt
15/20PSStud Bolt
15/20PS -
83V1-03147-1 Float ValveFloat Valve
-
93BH-04499-0 Main jet #99 f15c
15PS ONLYMain jet #99 f15c
15PS ONLY -
103BJ-04421-0 Main jet #121 f20c
20PSMain jet #121 f20c
20PS -
113BJ-04552-0 Slow jet #52 f20c
20PSSlow jet #52 f20c
20PS -
123BJ-03141-0 Main nozzle f20c (mf/ef)
20PSMain nozzle f20c (mf/ef)
20PS -
133V1-03169-0 Plug
9.9/15PS ONLYPlug
9.9/15PS ONLY -
143V2-03169-0 Plug
20PSPlug
20PS -
153V1-03116-0 O-RingO-Ring
-
163V1-03128-0 PlatePlate
-
17922503-0305 Stud BoltStud Bolt
-
183BJ-03181-0 Carburetor cover
15/20PSCarburetor cover
15/20PS -
193BJ-03182-0 Carburetor cover gasket
15/20PSCarburetor cover gasket
15/20PS -
20922503-6410 Stud BoltStud Bolt
-
213V2-03179-0 Stop ScrewStop Screw
-
223BJ-03179-0 Stop Screw
15/20PS FOR MF/EFStop Screw
15/20PS FOR MF/EF -
233V2-03157-0 Spring Washer
15/20PS FOR MF/EFSpring Washer
15/20PS FOR MF/EF -
243V1-03191-0 NutNut
-
253BJ-03192-0 Drain Screw
15/20PSDrain Screw
15/20PS -
263BJ-03193-0 Gasket
15/20PSGasket
15/20PS -
273AA-03189-0 Retaining ringRetaining ring
-
283AA-03190-0 CapCap
-
293AA-03311-0 Rubber bootRubber boot
-
303BJ-03315-0 Plunger
15/20PSPlunger
15/20PS -
313BJ-03314-0 Coil spring
15/20PSCoil spring
15/20PS -
323BJ-03197-0 Diaphragm cover
15/20PSDiaphragm cover
15/20PS -
333AA-03192-0 Drain ScrewDrain Screw
-
343AA-03193-0 Drain screw gasketDrain screw gasket
-
35921503-0410 Stud Bolt
15/20PSStud Bolt
15/20PS -
363BJ-03198-0 Check Valve
15/20PSCheck Valve
15/20PS -
373BJ-02234-0 Fuel FilterFuel Filter
-
383H8-07632-0 O-RingO-Ring
-
393BJ-03243-0 O-RingO-Ring
