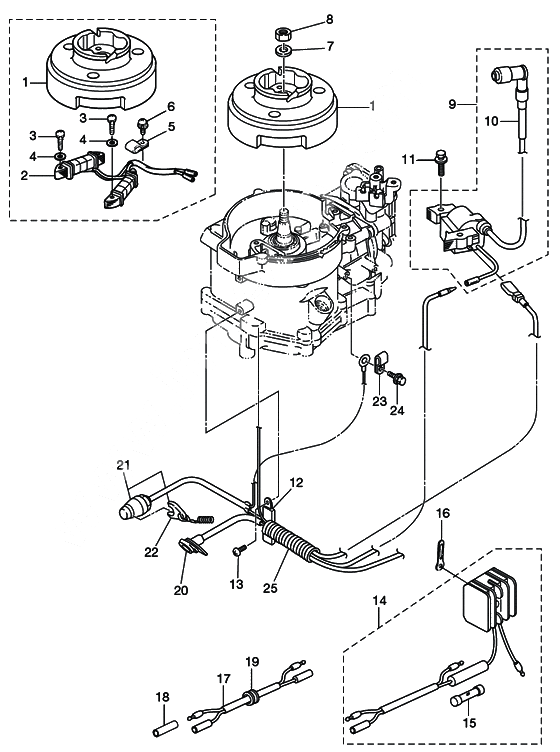

Magneto для Tohatsu MFS4B - 2010 года выпуска
-
№АртикулНазвание
-
13AS-06009-0 Flywheel w/o alternator b models
STD / WITH OUT ALTERNATORFlywheel w/o alternator b models
STD / WITH OUT ALTERNATOR -
13AS-06001-0 Flywheel cup (mf54) for use w/alternator
FOR SAIL PRO / (WITH ALTERNATER)Flywheel cup (mf54) for use w/alternator
FOR SAIL PRO / (WITH ALTERNATER) -
23AS-06023-0 Alternator b models
12V60WAlternator b models
12V60W -
3921503-0525 Stud BoltStud Bolt
-
4940103-0500 WasherWasher
-
5369-06915-0 ClampClamp
-
6921521-6408 Stud Bolt
WITH ALTERNATOR SAIL PRO ONLYStud Bolt
WITH ALTERNATOR SAIL PRO ONLY -
7940121-1200 WasherWasher
-
8369-00132-0 Nut MagnetoNut Magneto
-
93AS-06041-0 Igniter b modelsIgniter b models
-
103H6-06999-0 Plug Cap (Registance)Plug Cap (Registance)
-
11910103-5630 BoltBolt
-
12398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
12309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
13921503-0612 Stud BoltStud Bolt
-
14369-76060-1 Rectifier completeRectifier complete
-
15334-76211-0 Fuse (10a)Fuse (10a)
-
16353-06972-0 ClampClamp
-
17399-76120-0 Battery cableBattery cable
-
183H6-76037-0 Cable terminal plugCable terminal plug
-
19345-66226-0 Grommet, 17-3
WITH ALTERNATOR SAIL PRO ONLYGrommet, 17-3
WITH ALTERNATOR SAIL PRO ONLY -
203H6-71040-0 Warning lamp ass'yWarning lamp ass'y
-
213AS-06870-0 Stop switch assyStop switch assy
-
3GR-06870-0 Stop switch assyStop switch assy
-
22353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
23345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
24910103-5612 BoltBolt
-
253H6-06133-0 Protector,wire Harness
FOR SEPARATE TANK MODELProtector,wire Harness
FOR SEPARATE TANK MODEL -
253H9-06133-0 Protector,wire Harness
FOR INTEGRAL TANK MODELProtector,wire Harness
FOR INTEGRAL TANK MODEL
