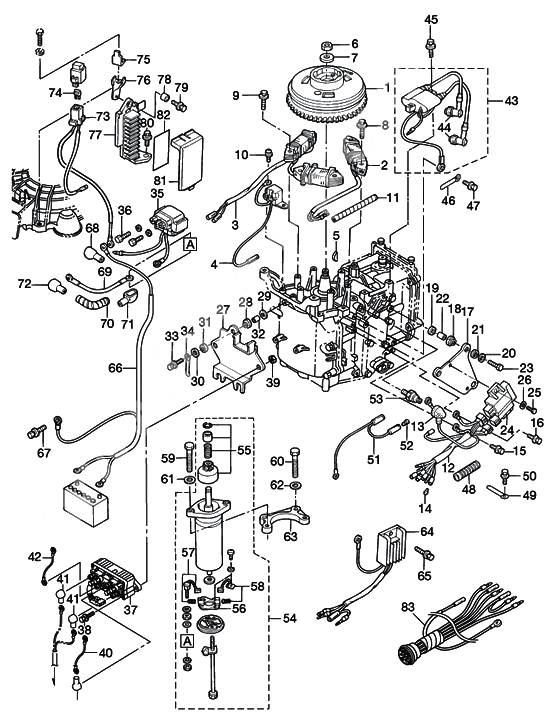

Magneto & electric parts для Tohatsu MFS9.8A3 - 2010 года выпуска
-
№АртикулНазвание
-
13AA-06091-0 Flywheel Cap
FF-51 WITH RING GEARFlywheel Cap
FF-51 WITH RING GEAR -
23AA-06021-0 Excite CoilExcite Coil
-
33AA-06023-0 Alternator Ass'y
FOR EF/EFT & EP/EPTAlternator Ass'y
FOR EF/EFT & EP/EPT -
43V1-06071-0 Pulsar CoilPulsar Coil
-
53T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
6369-00132-0 Nut MagnetoNut Magneto
-
7940121-1200 WasherWasher
-
8910103-5630 Bolt
FOR MFBolt
FOR MF -
9910103-5630 Bolt
FOR EF/EFT & EP/EPTBolt
FOR EF/EFT & EP/EPT -
10921503-0512 Stud BoltStud Bolt
-
113V1-76148-0 Spiral Tube Protector
ALTERNATOR & EXCITER CABLE / FOR EF/EFT & EP/EPTSpiral Tube Protector
ALTERNATOR & EXCITER CABLE / FOR EF/EFT & EP/EPT -
123AA-06167-0 Cord Ass'y C.D. UnitCord Ass'y C.D. Unit
-
133H6-07612-0 Grommet, oil pressure switchGrommet, oil pressure switch
-
143A3-76037-0 Plug B Cable Terminal
LIGHT GREEN & WHITE CABLEPlug B Cable Terminal
LIGHT GREEN & WHITE CABLE -
15910103-5612 Bolt
GROUND CABLEBolt
GROUND CABLE -
16910103-5612 Bolt
FOR MFBolt
FOR MF -
173V1-06061-1 Bracket c.d. unitBracket c.d. unit
-
3V1-06061-0 Bracket c.d. unitBracket c.d. unit
-
183T5-06920-0 Mount RubberMount Rubber
-
193R0-66308-0 WasherWasher
-
203R0-66308-0 WasherWasher
-
213B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
223A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
239101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
243AA-06060-0 C.D. UnitC.D. Unit
-
253V1-60108-0 Bolt,6-16 Pre CoatedBolt,6-16 Pre Coated
-
263R0-66308-0 WasherWasher
-
273V1-06900-1 Electric bracket
FOR EF/EFT & EP/EPTElectric bracket
FOR EF/EFT & EP/EPT -
3V1-06900-0 Electric bracketElectric bracket
-
283T5-06920-0 Mount Rubber
FOR EF/EFT & EP/EPTMount Rubber
FOR EF/EFT & EP/EPT -
293R0-66308-0 Washer
FOR EF/EFT & EP/EPTWasher
FOR EF/EFT & EP/EPT -
303R0-66308-0 Washer
FOR EF/EFT & EP/EPTWasher
FOR EF/EFT & EP/EPT -
313B7-06305-0 Mount Rubber, 9-16-4.3
FOR EF/EFT & EP/EPTMount Rubber, 9-16-4.3
FOR EF/EFT & EP/EPT -
323A0-76079-0 Collar, 6.2-9-7.5
FOR EF/EFT & EP/EPTCollar, 6.2-9-7.5
FOR EF/EFT & EP/EPT -
339101E3-0620 Bolt
FOR EF/EFT & EP/EPTBolt
FOR EF/EFT & EP/EPT -
910103-0620 BoltBolt
-
343T4-06972-1 Clamp
FOR EP/EPTClamp
FOR EP/EPT -
3T4-06972-0 ClampClamp
-
353H8-76040-0 Starter Solenoid
FOR EP/EPT & EF/EFTStarter Solenoid
FOR EP/EPT & EF/EFT -
36910103-5610 BoltBolt
-
373Z0-72580-0 Power tilt solenoid switch inain
FOR EFT & EPTPower tilt solenoid switch inain
FOR EFT & EPT -
389101E3-5620 Bolt & washer
FOR EFT & EPTBolt & washer
FOR EFT & EPT -
399301E3-0600 Nut
FOR EFT & EPTNut
FOR EFT & EPT -
930103-0600 NutNut
-
403C8-72582-0 Cord a solenoid switch
FOR EFT & EPTCord a solenoid switch
FOR EFT & EPT -
413Y1-76145-0 Terminal Cap
FOR RED CORD / FOR EFT & EPTTerminal Cap
FOR RED CORD / FOR EFT & EPT -
423C8-72583-1 Cord B Solenoid Switch (L=130)
FOR EFT & EPTCord B Solenoid Switch (L=130)
FOR EFT & EPT -
433V1-06040-0 Ignition CoilIgnition Coil
-
443H6-06999-0 Plug Cap (Registance)Plug Cap (Registance)
-
45910103-5625 BoltBolt
-
46309-06972-0 Clamp,6.5-47.5P
ALTERNATOR & EXCITER CABLEClamp,6.5-47.5P
ALTERNATOR & EXCITER CABLE -
47910103-5616 BoltBolt
-
483V1-06133-0 Protector
FOR MFProtector
FOR MF -
493T4-06972-1 Clamp
FOR MFClamp
FOR MF -
3T4-06972-0 ClampClamp
-
509101E3-5612 Bolt & washer
FOR MFBolt & washer
FOR MF -
513V5-72678-0 Separate Cord(Black)Separate Cord(Black)
-
523A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
533H6-07611-0 Switch, Oil PressureSwitch, Oil Pressure
-
543AA-76010-0 Starter Motor Ass'y
FOR EP/EPT & EF/EFTStarter Motor Ass'y
FOR EP/EPT & EF/EFT -
55350-76015-0 Pinion Ass'y
FOR EP/EPT & EF/EFTPinion Ass'y
FOR EP/EPT & EF/EFT -
563AA-76014-0 Brush Holder
FOR EP/EPT & EF/EFTBrush Holder
FOR EP/EPT & EF/EFT -
573AA-76012-0 Positive Brush
FOR EP/EPT & EF/EFTPositive Brush
FOR EP/EPT & EF/EFT -
583AA-76013-0 Negative Brush
FOR EP/EPT & EF/EFTNegative Brush
FOR EP/EPT & EF/EFT -
599161F4-0830 Bolt
STARTER MOTOR / FOR EP/EPT & EF/EFTBolt
STARTER MOTOR / FOR EP/EPT & EF/EFT -
916114-0830 BoltBolt
-
609161F4-0830 Bolt
BRACKET / FOR EP/EPT & EF/EFTBolt
BRACKET / FOR EP/EPT & EF/EFT -
916114-0830 BoltBolt
-
619401E3-0800 Washer
STARTER MOTOR / FOR EP/EPT & EF/EFTWasher
STARTER MOTOR / FOR EP/EPT & EF/EFT -
940103-0800 WasherWasher
-
629401E3-0800 Washer
BRACKET / FOR EP/EPT & EF/EFTWasher
BRACKET / FOR EP/EPT & EF/EFT -
940103-0800 WasherWasher
-
633V1-76011-1 Bracket starter motor
FOR EP/EPT & EF/EFTBracket starter motor
FOR EP/EPT & EF/EFT -
3V1-76011-0 Bracket starter motorBracket starter motor
-
643AA-76065-0 Rectifire Complete
FOR EP/EPT & EF/EFTRectifire Complete
FOR EP/EPT & EF/EFT -
65910103-5616 Bolt
FOR EP/EPT & EF/EFTBolt
FOR EP/EPT & EF/EFT -
663AC-76120-0 Battery cable +/- (new style) 8.2 ft.
FOR EP/EPT & EF/EFTBattery cable +/- (new style) 8.2 ft.
FOR EP/EPT & EF/EFT -
67910103-5610 Bolt
FOR EP/EPT & EF/EFTBolt
FOR EP/EPT & EF/EFT -
683AA-76145-0 Terminal Cap
FOR EP/EPT & EF/EFTTerminal Cap
FOR EP/EPT & EF/EFT -
693B2-76147-2 Starter cable
FOR EP/EPT & EF/EFTStarter cable
FOR EP/EPT & EF/EFT -
3B2-76147-1 Starter cableStarter cable
-
703V1-76148-0 Spiral Tube Protector
STARTER CABLE / FOR EP/EPT & EF/EFTSpiral Tube Protector
STARTER CABLE / FOR EP/EPT & EF/EFT -
713Y0-76145-0 Terminal Cap
FOR EP/EPT & EF/EFTTerminal Cap
FOR EP/EPT & EF/EFT -
723Y1-76145-0 Terminal Cap
FOR EP/EPT & EF/EFTTerminal Cap
FOR EP/EPT & EF/EFT -
733V1-76066-0 Fuse Wire
FOR EP/EPT & EF/EFTFuse Wire
FOR EP/EPT & EF/EFT -
743T5-76247-0 Предохранитель
FOR EP/EPT & EF/EFTПредохранитель
FOR EP/EPT & EF/EFT -
753R0-76064-0 Stay,Fuse Holder
FOR EP/EPT & EF/EFTStay,Fuse Holder
FOR EP/EPT & EF/EFT -
763V1-06284-1 Stay terminal holder
FOR EP/EPT & EF/EFTStay terminal holder
FOR EP/EPT & EF/EFT -
3V1-06284-0 Stay terminal holderStay terminal holder
-
773AA-06281-0 Hplder Cable Terminal
FOR EP/EPT & EF/EFTHplder Cable Terminal
FOR EP/EPT & EF/EFT -
78174-35012-0 Collar 6-8-6
FOR EP/EPT & EF/EFTCollar 6-8-6
FOR EP/EPT & EF/EFT -
799101E3-5612 Bolt & washer
FOR EP/EPT & EF/EFTBolt & washer
FOR EP/EPT & EF/EFT -
809101E3-5616 Bolt & washer
FOR EP/EPT & EF/EFTBolt & washer
FOR EP/EPT & EF/EFT -
813AA-06902-0 Cover Terminal Holder
FOR EP/EPT & EF/EFTCover Terminal Holder
FOR EP/EPT & EF/EFT -
823V1-72028-0 Wiring diagram decal f8a3/9.8a3 (ef eft)
FOR MF & EF/EFTWiring diagram decal f8a3/9.8a3 (ef eft)
FOR MF & EF/EFT -
823V2-72028-0 Wiring diagram decal f8a3/9.8a3 (ep ept)
FOR EP/EPTWiring diagram decal f8a3/9.8a3 (ep ept)
FOR EP/EPT -
833V2-76110-0 Cord assy (ept)
FOR EPTCord assy (ept)
FOR EPT
