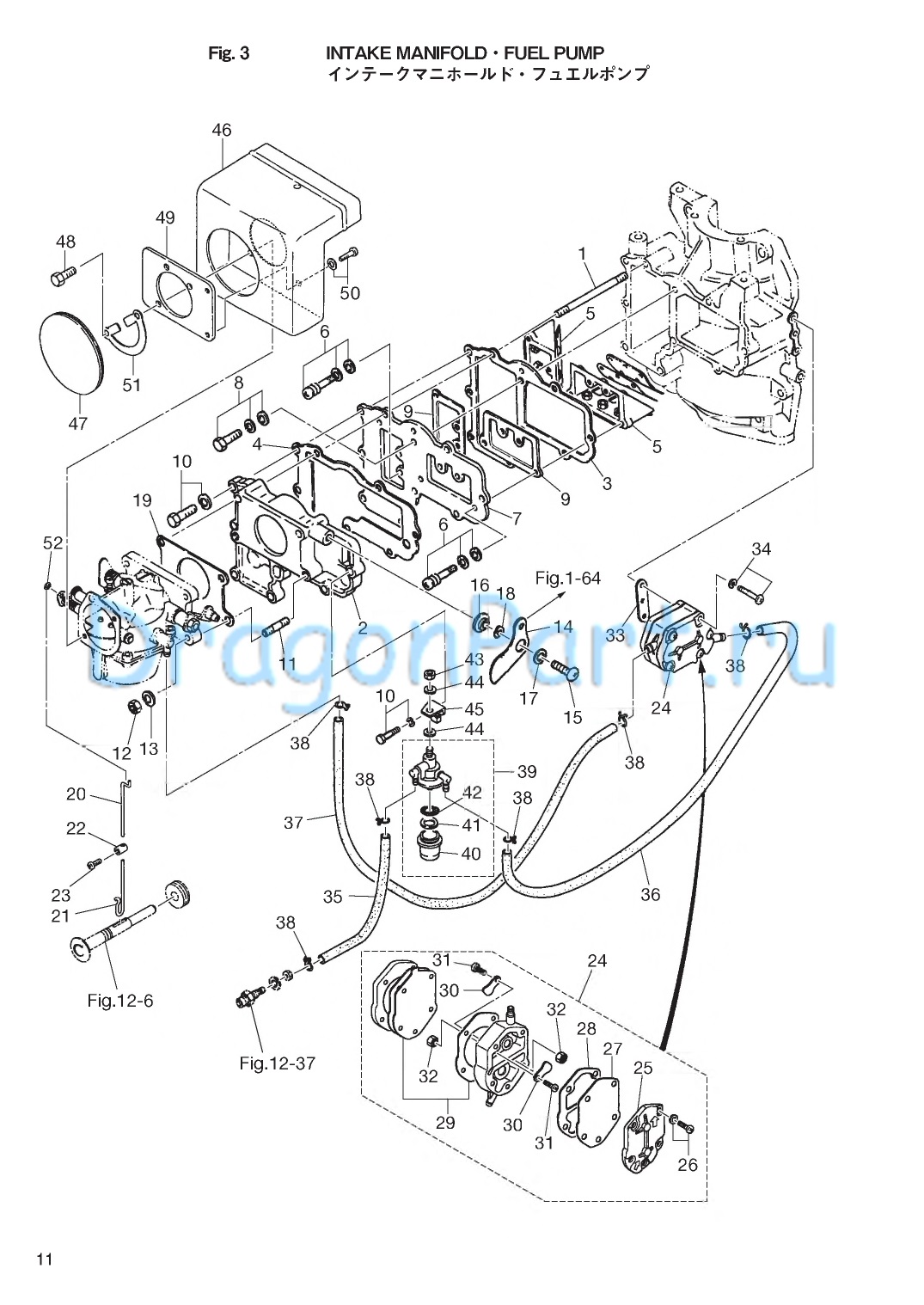

INTAKE MAINFOLD FUEL PUMP для Tohatsu M40C - 2011 года выпуска
-
№АртикулНазвание
-
1915321-0655 STUDSTUD
-
2345B02010-0 INTAKE MANIFOLDINTAKE MANIFOLD
-
3345-02104-0 INTAKE MANIFOLD GASKETINTAKE MANIFOLD GASKET
-
4345-02105-0 INTAKE MANIFOLD GASKETINTAKE MANIFOLD GASKET
-
5345-02100-1 REED VALVE ASSYREED VALVE ASSY
-
6921521-7412 SCREWSCREW
-
7345-02106-0 PLATEPLATE
-
8910121-7620 BOLTBOLT
-
9345-02103-0 REED VALVE SEAT GASKETREED VALVE SEAT GASKET
-
109101F4-5630 BOLTBOLT
-
11915321-0620 STUDSTUD
-
12930103-0600 NUTNUT
-
13941303-0600 SPRING WASHERSPRING WASHER
-
14348-63718-0 THROTTLE CAMTHROTTLE CAM
-
15921503-0616 SCREWSCREW
-
16346-63721-0 BUSHING 6.2-16-5BUSHING 6.2-16-5
-
173C8-66308-0 WASHER 6-16-1.5WASHER 6-16-1.5
-
18941403-1000 WAVE WASHER d=10WAVE WASHER d=10
-
19345-02011-3 CARBURETOR GASKETCARBURETOR GASKET
-
20345-67191-1 CHOKE RODCHOKE ROD
-
21345-67192-0 CHOKE RODCHOKE ROD
-
22345-67194-0 CHOKE ROD CONNECTERCHOKE ROD CONNECTER
-
23921503-0408 SCREWSCREW
-
24356-04000-1 FUEL PUMP ASSYFUEL PUMP ASSY
-
25334-04004-0 * PUMP COVER* PUMP COVER
-
269225F2-6528 * SCREW* SCREW
-
27334-04005-0 * PUMP DIAPHRAGM* PUMP DIAPHRAGM
-
28334-04007-0 * DIAPHRAGM GASKET* DIAPHRAGM GASKET
-
29356-04030-0 * DIAPHRAGM GASKET SET* DIAPHRAGM GASKET SET
-
30356-04044-0 * CHECK VALVE* CHECK VALVE
-
31921722-0306 * SCREW* SCREW
-
32930222-0300 * NUT* NUT
-
33346-04901-1 GASKETGASKET
-
34921503-6640 SCREWSCREW
-
3598AB-50-160 HOSE
F/Connector-Fuel Filter 98AB-501000HOSE
F/Connector-Fuel Filter 98AB-501000 -
3698AB-50-270 HOSE
Fuel Filter-Fuel Pump 98AB-501000HOSE
Fuel Filter-Fuel Pump 98AB-501000 -
3798AB-50-210 HOSE
Fuel Pump-Carburetor 98AB-501000HOSE
Fuel Pump-Carburetor 98AB-501000 -
38338-02215-0 CLIP φ10CLIP φ10
-
39346-02230-0 FUEL FILTER ASSYFUEL FILTER ASSY
-
40346-02237-0 * CUP* CUP
-
41346-02235-0 * GASKET* GASKET
-
42346-02234-0 * FILTER* FILTER
-
43930103-0800 NUTNUT
-
44940103-0800 WASHERWASHER
-
45348-02231-0 PLATEPLATE
-
46345-02411-0 INTAKE SILENCERINTAKE SILENCER
-
47345-02415-0 INTAKE SILENCER COVERINTAKE SILENCER COVER
-
489101F4-0616 BOLTBOLT
-
49345-02416-0 INTAKE SILENCER PLATEINTAKE SILENCER PLATE
-
50921503-5508 SCREWSCREW
-
51345-02417-1 INTAKE SILENCER LOCK PLATEINTAKE SILENCER LOCK PLATE
-
52345-67195-1 BUSHINGBUSHING
