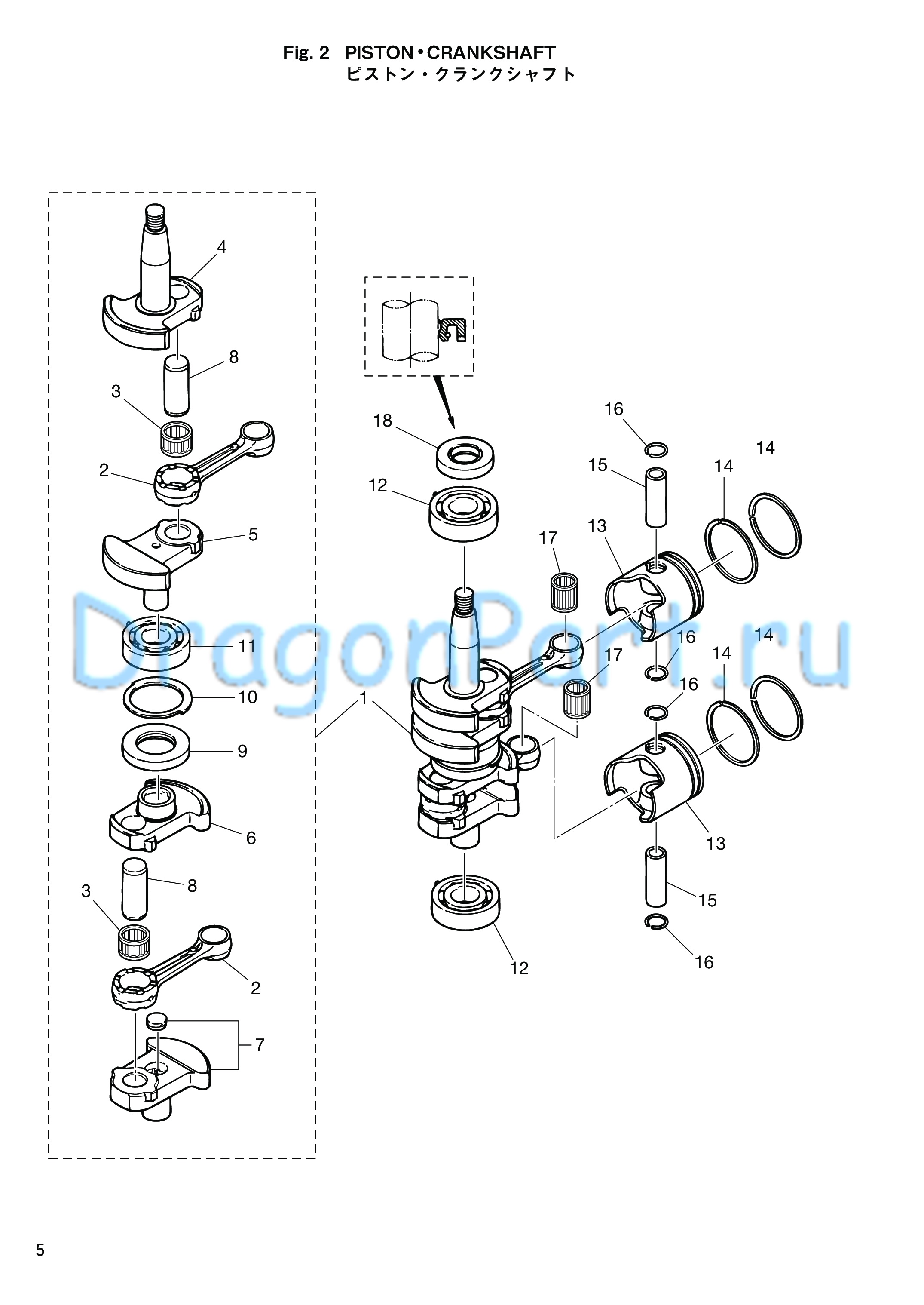

PISTON CRANKSHAFT для Tohatsu M8B - 2011 года выпуска

№

Артикул

Название
1

3B2-00069-0 Crankshaft Sub-Ass'y

Crankshaft Sub-Ass'y

48 110 ₽
2

3B2-00040-0 * Connecting Rod

* Connecting Rod

4 970 ₽
3

3B2-00043-0 * Roller Bearing 17-23-14
Big End

* Roller Bearing 17-23-14
Big End

2 360 ₽
4

3B2-00031-0 * Crankshaft A

* Crankshaft A

11 850 ₽
5

3B2-00032-0 * Crankshaft B

* Crankshaft B

10 900 ₽
6

3B2-00033-0 * Crankshaft C

* Crankshaft C

10 600 ₽
7

3B2-00034-0 * Crankshaft D

* Crankshaft D

10 110 ₽
8

3B2-00061-2 * Crank Pin

* Crank Pin

990 ₽
9

3B2-00051-0 * Oil Seal 25-47-7

* Oil Seal 25-47-7

1 320 ₽
10

369-00115-0 * Thrust Plate

* Thrust Plate

200 ₽
11

9603-3-6204 * Ball Bearing 6204
Center

* Ball Bearing 6204
Center

2 890 ₽
12

9603-3-6204 Ball Bearing 6204
Upper, Lower

Ball Bearing 6204
Upper, Lower

2 890 ₽
13

3B2-00001-1 Piston
STD

Piston
STD

6 610 ₽
13

3B2-00004-1 Piston (0.5 O/S)
OPT

Piston (0.5 O/S)
OPT

7 050 ₽
14

3B2-00011-0 Piston Ring
STD

Piston Ring
STD

1 500 ₽
14

3B2-00014-0 Piston Ring (0.5 O/S)
OPT

Piston Ring (0.5 O/S)
OPT

2 150 ₽
15

3B2-00021-1 Piston Pin

Piston Pin

1 520 ₽
16

350-00024-1 Piston Pin Clip

Piston Pin Clip

320 ₽
17

338-00042-0 Roller Bearing 14-18-19
Small End

Roller Bearing 14-18-19
Small End

1 800 ₽
18

101-00121-0 Oil Seal 20-35-7

Oil Seal 20-35-7

370 ₽
