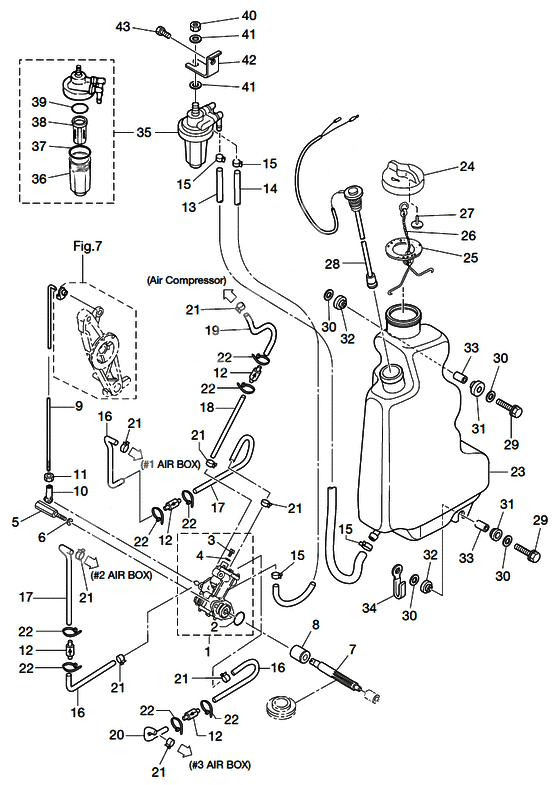

Oil pump для Tohatsu MD50B2 - 2011 года выпуска
-
№АртикулНазвание
-
13T5-09000-0 Oil Pump Ass'yOil Pump Ass'y
-
23B7-09002-0 O-RingO-Ring
-
33B7-09004-0 Bolt, Air VentBolt, Air Vent
-
43B7-09006-0 WasherWasher
-
53C8-09050-1 Bolt oil pumpBolt oil pump
-
6941303-0600 New partNew part
-
73C8-09065-0 Driven Gear Oil PumpDriven Gear Oil Pump
-
83C8-09069-0 BushingBushing
-
93C8-09053-1 Link RodLink Rod
-
103B7-05243-0 New partNew part
-
11930103-0500 NutNut
-
123B7-09075-1 Check Valve CompleteCheck Valve Complete
-
1399AA-6-0570 Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000 -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
1499AA-6-0175 Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000Oil pipe (1 ea.=1.5 meter/59.05 inches)
99AA-6-1000 -
99AA-6-1000 Oil pipe (1 ea.=1.5 meter/59.05 inches)Oil pipe (1 ea.=1.5 meter/59.05 inches)
-
153AB-35143-0 Clip @ 9.5Clip @ 9.5
-
1699AA-2-0200 Vinyl pipe (1 ea.=1 meter)
99AA-2-1000Vinyl pipe (1 ea.=1 meter)
99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1799AA-2-0140 Vinyl pipe (1 ea.=1 meter)
99AA-2-1000Vinyl pipe (1 ea.=1 meter)
99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1899AA-2-0120 Vinyl pipe (1 ea.=1 meter)
99AA-2-1000Vinyl pipe (1 ea.=1 meter)
99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
1999AA-2-0160 Vinyl pipe (1 ea.=1 meter)
99AA-2-1000Vinyl pipe (1 ea.=1 meter)
99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
2099AA-2-0100 Vinyl pipe (1 ea.=1 meter)
99AA-2-1000Vinyl pipe (1 ea.=1 meter)
99AA-2-1000 -
99AA-2-1000 Vinyl pipe (1 ea.=1 meter)Vinyl pipe (1 ea.=1 meter)
-
213B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
223T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
233T5-71010-0 Oil TankOil Tank
-
243C8-71015-0 Cap Oil TankCap Oil Tank
-
253C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
263C8-71017-0 Hook Tank CapHook Tank Cap
-
273C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
283T5-71020-0 Oil Level SensorOil Level Sensor
-
29910103-6630 BoltBolt
-
30346-67115-0 WasherWasher
-
31346-67113-0 Mount RubberMount Rubber
-
323B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
33346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
343T4-06972-1 ClampClamp
-
3T4-06972-0 ClampClamp
-
353C7-71030-0 Filter Ass'yFilter Ass'y
-
363B7-02237-0 CupCup
-
373B7-02235-0 O-Ring AO-Ring A
-
383C7-71033-0 FilterFilter
-
393B7-02236-0 O???? bO???? b
-
40930103-0800 NutNut
-
41940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
423T5-02239-0 Plate, FilterPlate, Filter
-
43910103-6614 BoltBolt
