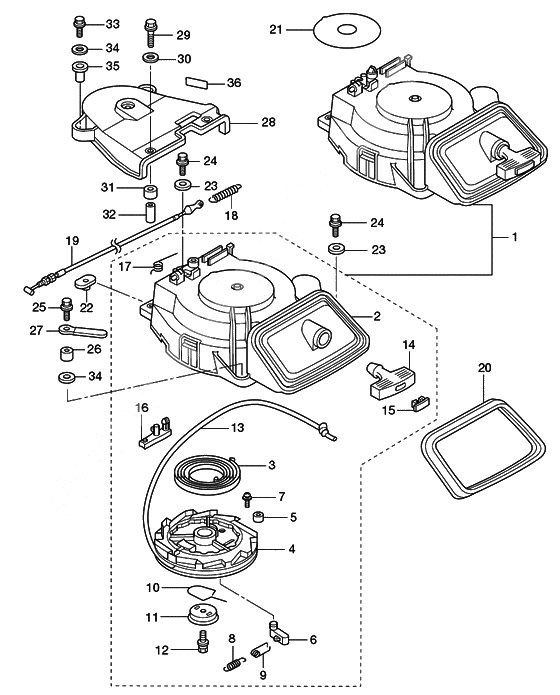

Recoil starter для Tohatsu MFS20C - 2011 года выпуска
-
№АртикулНазвание
-
13BJ-05090-0 Recoil starterRecoil starter
-
23BJ-05105-0 Starter CaseStarter Case
-
33H8-05004-0 Spring WasherSpring Washer
-
43BJ-05104-0 ReelReel
-
53BJ-05135-0 BushingBushing
-
63BJ-05003-0 RatchetRatchet
-
73BJ-05913-0 Tapping ScrewTapping Screw
-
83R3-05012-0 Return SpringReturn Spring
-
93H8-05123-1 Return SpringReturn Spring
-
103R3-05007-0 Spring WasherSpring Washer
-
113R3-05006-0 Friction PlateFriction Plate
-
123R3-05138-0 Bolt,Starter ShaftBolt,Starter Shaft
-
133R3-05013-0 Starter RopeStarter Rope
-
143BJ-05019-0 Starter HandleStarter Handle
-
153R3-05131-0 Cap,Starter HandleCap,Starter Handle
-
163R3-05252-0 Starter LockStarter Lock
-
173R3-05216-0 Spring WasherSpring Washer
-
183AC-05258-0 Cam spring starter lockCam spring starter lock
-
193BJ-05207-0 Starter lock cableStarter lock cable
-
203BJ-67503-1 Starter sealStarter seal
-
213R0-72181-0 Caution Label BCaution Label B
-
223F3-76042-2 NutNut
-
233R0-66308-0 WasherWasher
-
243AL-60108-0 Bolt pre-coated 6-20Bolt pre-coated 6-20
-
253AC-06864-0 BoltBolt
-
263H6-63619-1 Collar, BracketCollar, Bracket
-
27309-06972-0 Clamp,6.5-47.5P
STARTER LOCK CABLEClamp,6.5-47.5P
STARTER LOCK CABLE -
283R3-06308-0 Belt VoverBelt Vover
-
299101E3-0630 BoltBolt
-
303R0-66308-0 WasherWasher
-
313R3-06302-0 Mount RubberMount Rubber
-
323R3-06303-1 CollarCollar
-
3R3-06303-0 CollarCollar
-
339101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
343R0-66308-0 WasherWasher
-
353BJ-06283-0 Collar 6.1-14-8.9Collar 6.1-14-8.9
-
363H6-72026-0 Label, Spark PlugLabel, Spark Plug
