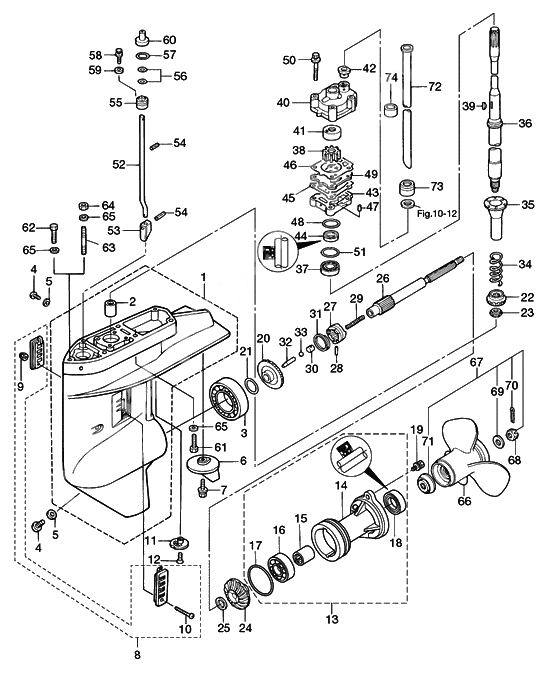

Lower unit для Tohatsu MFS25B - 2011 года выпуска
-
№АртикулНазвание
-
13AEQ60000-1 Gear caseGear case
-
3AEQ60000-2 Gear caseGear case
-
23AE-60211-0 New partNew part
-
3346-60215-0 Подшипник (30205) 25x52x16,25Подшипник (30205) 25x52x16,25
-
4332-60005-2 Oil Plug Water Plug
WATER PLUGOil Plug Water Plug
WATER PLUG -
5332-60006-0 Gasket (8.1x15.1)
WATER PLUGGasket (8.1x15.1)
WATER PLUG -
63C8-60217-1 Trim TabTrim Tab
-
7910103-5620 BoltBolt
-
83A1-60235-0 Water Strainer SetWater Strainer Set
-
9930403-0400 Nylon NutNylon Nut
-
109215E3-0430 ScrewScrew
-
921503-0430 ScrewScrew
-
11369-60206-0 Water StrainerWater Strainer
-
129208E3-0620 ScrewScrew
-
13346Q87323-5 Prop shaft housing assyProp shaft housing assy
-
349Q60100-7 Prop shaft housing assyProp shaft housing assy
-
14346Q60101-6 Prop shaft housingProp shaft housing
-
346Q60101-8 Prop shaft housingProp shaft housing
-
15346-60102-0 Needle BearingNeedle Bearing
-
169601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
17332-60103-0 O-RingO-Ring
-
18346-60111-0 Oil seal, 18-28-8Oil seal, 18-28-8
-
199101E3-5830 BoltBolt
-
910103-5830 BoltBolt
-
20346-64010-1 Bevel Gear ABevel Gear A
-
21369-64081-1 Shim, 26. 5-34. 8-0.1Shim, 26. 5-34. 8-0.1
-
21369-64082-1 Shim, 26. 5-34. 8-0.15Shim, 26. 5-34. 8-0.15
-
22346-64020-1 Bevel Gear BBevel Gear B
-
23346-64027-1 Nut, Bevel Gear BNut, Bevel Gear B
-
243AC-64030-0 Bevel Gear C
3 LINEBevel Gear C
3 LINE -
25346-64032-0 New partNew part
-
26346-64211-6 プロペラシャフトプロペラシャフト
-
273AC-64215-1 Clutch f25/30bClutch f25/30b
-
28346-64218-0 New partNew part
-
29332-64221-0 New partNew part
-
30350-64222-1 Spring holder clutchSpring holder clutch
-
31346-64219-0 New partNew part
-
323C8-64223-1 Push rod, clutchPush rod, clutch
-
33965002-0803 Steel ball, 3/8Steel ball, 3/8
-
34346-64327-0 Spring Drive ShaftSpring Drive Shaft
-
35346-64328-0 New partNew part
-
363R0-64301-0 Drive shaft s""
FOR TRANSOM SDrive shaft s""
FOR TRANSOM S -
36346-64302-5 Drive shaft l
FOR TRANSOM LDrive shaft l
FOR TRANSOM L -
36346-64303-5 Drive Shaft UL
FOR TRANSOM ULDrive Shaft UL
FOR TRANSOM UL -
37346-60213-0 Bearing, 32004Bearing, 32004
-
38345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
39332-65022-0 Key, pump impellerKey, pump impeller
-
403R0-65016-0 Upper Pump CaseUpper Pump Case
-
413R0-65011-0 Liner,Pump CaseLiner,Pump Case
-
423B7-65014-0 Lower seal rubber, water pipeLower seal rubber, water pipe
-
43346-65017-2 Pump Case LowerPump Case Lower
-
44346-65013-0 Oil' seal, 17-30-9Oil' seal, 17-30-9
-
45348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
463R0-65018-0 Gasket,Pump CaseGasket,Pump Case
-
47334-65012-0 СтопорСтопор
-
48336-62415-0 O-RingO-Ring
-
493R0-65025-0 Guide Plate,Water PumpGuide Plate,Water Pump
-
509101E3-5652 Bolt & washerBolt & washer
-
51346-64081-0 Shim, 35-41.9-0.1Shim, 35-41.9-0.1
-
51346-64082-0 Shim, 35-41.9-0.15Shim, 35-41.9-0.15
-
51346-64083-0 Shim, 35-41.9-0.3Shim, 35-41.9-0.3
-
51346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
523R0-66012-0 Cam rod s""
FOR TRANSOM SCam rod s""
FOR TRANSOM S -
523R0-66013-0 Cam rod l""
FOR TRANSOM LCam rod l""
FOR TRANSOM L -
523R0-66014-0 Cam Rod UL""
FOR TRANSOM ULCam Rod UL""
FOR TRANSOM UL -
533AC-66011-1 Clutch CamClutch Cam
-
54951407-0312 Spring WasherSpring Washer
-
553R0-66031-0 Bushing,Cam RodBushing,Cam Rod
-
56332-66021-0 O-RingO-Ring
-
573C8-66032-0 O-RingO-Ring
-
589101E3-5612 Bolt & washerBolt & washer
-
593R0-66308-0 WasherWasher
-
60346-66037-0 Holder Cam Rod
FOR TRANSOM ULHolder Cam Rod
FOR TRANSOM UL -
619161E3-0840 Bolt bBolt b
-
629161E3-0845 Bolt
FOR TRANSOM LBolt
FOR TRANSOM L -
916113-0845 BoltBolt
-
639153E3-0830 Stud Bolt
FOR TRANSOM SStud Bolt
FOR TRANSOM S -
915313-0830 Stud BoltStud Bolt
-
649301E3-0800 Nut
FOR TRANSOM SNut
FOR TRANSOM S -
930103-0800 NutNut
-
659401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
663R0B64518-0 Propeller ds 9 (9.8 dia x 9.3 pitch) black
STD TRANSOM ULPropeller ds 9 (9.8 dia x 9.3 pitch) black
STD TRANSOM UL -
663R0B64521-0 Propeller ds 10 (9.7 dia x 10 pitch) black
STD TRANSOM L FOR JAPANPropeller ds 10 (9.7 dia x 10 pitch) black
STD TRANSOM L FOR JAPAN -
663R0B64523-0 Propeller ds 11 (9.8 dia x 11 pitch) black
STD TRANSOM LPropeller ds 11 (9.8 dia x 11 pitch) black
STD TRANSOM L -
663R0B64525-0 Propeller ds 12 (9.8 dia x 12 pitch) black
STD TRANSOM S FOR JAPANPropeller ds 12 (9.8 dia x 12 pitch) black
STD TRANSOM S FOR JAPAN -
663R0B64527-0 Propeller ds 13 (9.6 dia x 13 pitch) black
STD TRANSOM SPropeller ds 13 (9.6 dia x 13 pitch) black
STD TRANSOM S -
673R0-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
68346-64121-5 ナット、プロペラナット、プロペラ
-
69346-64124-5 WasherWasher
-
70951503-0322 Split pin, 3-22Split pin, 3-22
-
71346-64231-5 New partNew part
-
723R0-65100-0 Water pipe s""
FOR TRANSOM SWater pipe s""
FOR TRANSOM S -
723R0-65110-0 Water pipoe l""
FOR TRANSOM LWater pipoe l""
FOR TRANSOM L -
723R0-65120-0 Water PipeUL""
FOR TRANSOM ULWater PipeUL""
FOR TRANSOM UL -
733R0-65206-0 Upper Seal Rubber,Water PipeUpper Seal Rubber,Water Pipe
-
7498AM120-015 Rubber pipe (1ea.=1 meter)
98AM1201000Rubber pipe (1ea.=1 meter)
98AM1201000 -
98AM12100-0 Rubber pipe (1ea.=1 meter)Rubber pipe (1ea.=1 meter)
