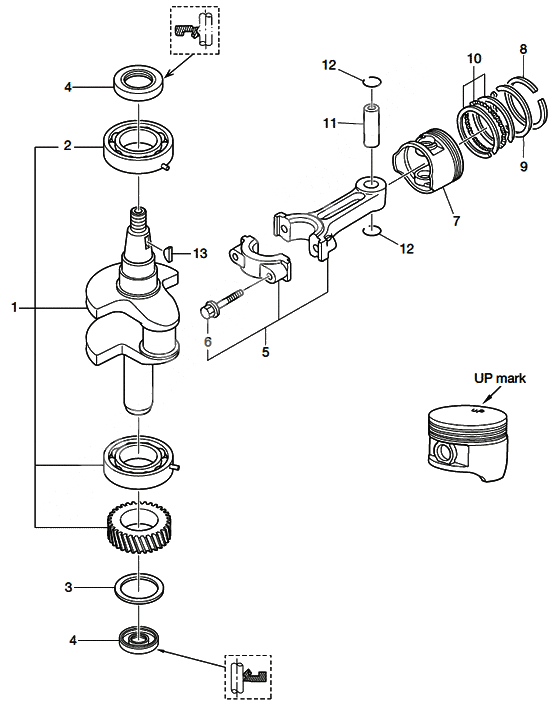

Piston & crank shaft для Tohatsu MFS2.5B - 2011 года выпуска
-
№АртикулНазвание
-
13AB-00070-0 PISTON & CRANKSHAFT
WITH GEARPISTON & CRANKSHAFT
WITH GEAR -
29603-3-6204 Ball BearingBall Bearing
-
33AB-00115-0 Thrust PlateThrust Plate
-
43AB-00121-0 Oil SealOil Seal
-
53AB-00040-0 ШатунШатун
-
63AB-00059-0 Connecting rod boltConnecting rod bolt
-
73AB-00001-1 Piston
STDPiston
STD -
3AB-00001-0 PistonPiston
-
83V1-00011-0 Piston Ring TOP
STDPiston Ring TOP
STD -
93V1-00012-0 Piston Ring 2nd
STDPiston Ring 2nd
STD -
103V1-00013-0 Piston Ring Oil
STDPiston Ring Oil
STD -
11332-00021-1 Piston PinPiston Pin
-
332-00021-0 Piston PinPiston Pin
-
12350-00024-1 Clip piston pinClip piston pin
-
13309-00131-0 Key, MagnetoKey, Magneto
