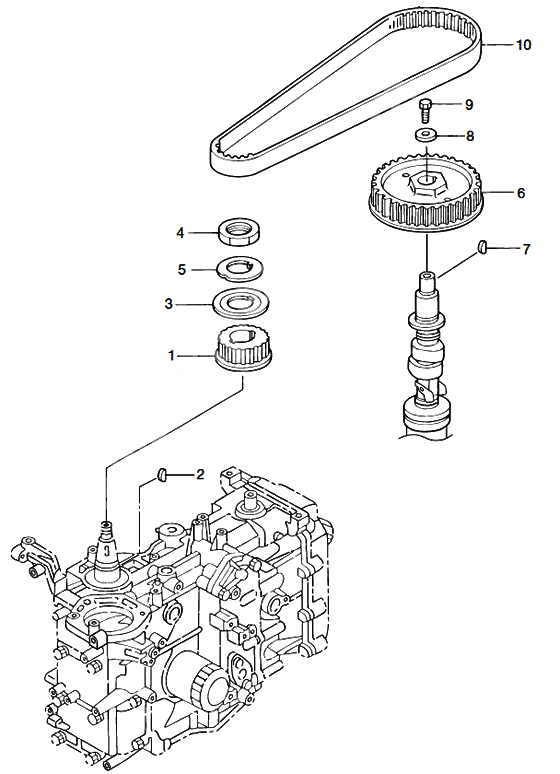

Pulley & timing belt для Tohatsu MFS30B - 2011 года выпуска
-
№АртикулНазвание
-
13R0-10060-0 Drive Puley
TIMING PULLEYDrive Puley
TIMING PULLEY -
23T5-10131-0 Key, Drive PulleyKey, Drive Pulley
-
33R0-10063-0 PlatePlate
-
43R0-10068-0 NutNut
-
53R0-10069-0 Lock WasherLock Washer
-
63H8-10062-2 Driven Pulley
CAMSHAFT PULLEYDriven Pulley
CAMSHAFT PULLEY -
7309-00131-0 Key, MagnetoKey, Magneto
-
83H8-10066-0 WasherWasher
-
93AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
103AC-10045-0 Timing belt newTiming belt new
