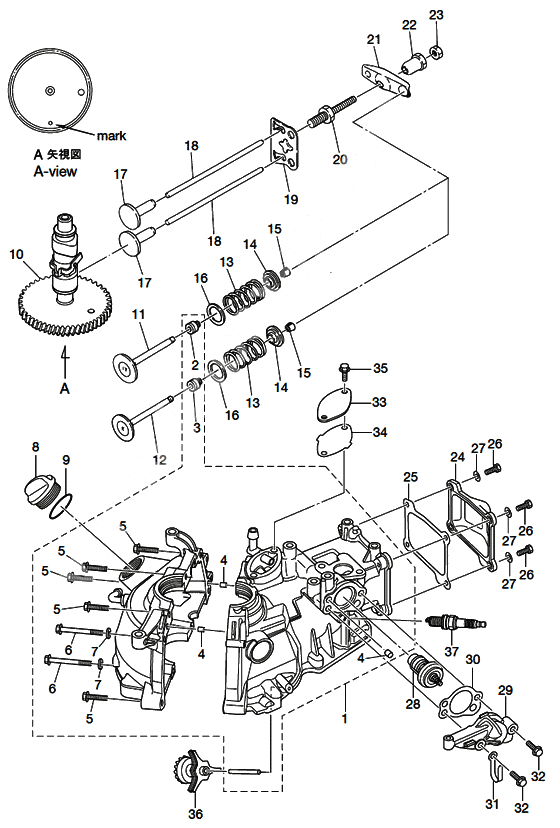

Cylinder & crankcase для Tohatsu MFS3.5B - 2011 года выпуска
-
№АртикулНазвание
-
13GTB01100-2 Cylinder crankcase
WITH NIPPLECylinder crankcase
WITH NIPPLE -
23R3-07204-0 Seal, In Valve Stem
BLACKSeal, In Valve Stem
BLACK -
33R3-07206-0 Seal, EX Valve Stem
GREENSeal, EX Valve Stem
GREEN -
4345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
59101F4-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
69161F9-0675 9161F9-06759161F9-0675
-
79401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
83R0-71015-1 Filler Cap,Engine OilFiller Cap,Engine Oil
-
93R0-07422-0 New partNew part
-
103GT-07810-0 Camshaft assyCamshaft assy
-
113AB-07201-0 Intake ValveIntake Valve
-
123V1-07202-0 Exhaust ValveExhaust Valve
-
133AE-07203-0 Valve springValve spring
-
143V1-07221-0 RetainerRetainer
-
153H6-07223-0 CotterCotter
-
163H6-07205-0 Seat, Valve SpringSeat, Valve Spring
-
173AB-07231-0 LifterLifter
-
183H6-07232-0 Push RodPush Rod
-
193AB-07233-0 Push rod platePush rod plate
-
203H6-07234-0 Stud BoltStud Bolt
-
213AB-07235-0 Rocker armRocker arm
-
223H6-07236-0 Pivot, Rocker ArmPivot, Rocker Arm
-
233H6-07937-0 Adjust nut (4.0mm thick)Adjust nut (4.0mm thick)
-
243ABB01021-0 Cylinder head coverCylinder head cover
-
253AB-01024-1 3AB-01024-13AB-01024-1
-
26910121-0616 BoltBolt
-
273C8-66308-0 New partNew part
-
283H6-01030-0 Thermostat
MARK : 5B OR 52BThermostat
MARK : 5B OR 52B -
293ABB01031-0 Thermostat capThermostat cap
-
303AB-01032-0 Thermostat cap gasketThermostat cap gasket
-
31398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
329101E3-5630 BoltBolt
-
910103-5630 BoltBolt
-
333AB-07431-0 Breather chamber coverBreather chamber cover
-
343AB-07432-0 Breather chamber cover gasketBreather chamber cover gasket
-
359101E3-5616 Bolt & washerBolt & washer
-
363AB-07640-0 SlingerSlinger
-
379701-1-1103 Spark plug (dcpr6e)
NGK : DCPR6ESpark plug (dcpr6e)
NGK : DCPR6E
