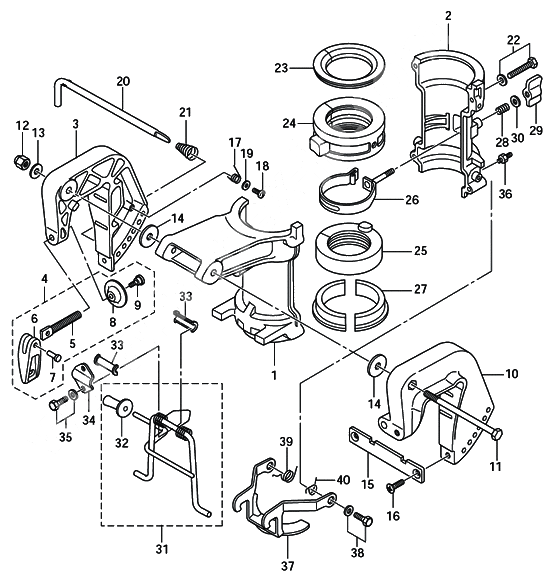

Bracket - reverse lock для Tohatsu MFS4C - 2011 года выпуска
-
№АртикулНазвание
-
13H6Q62391-0 Swivel bracket a (amb)Swivel bracket a (amb)
-
23H6Q62392-1 Swivel bracket b (amb)Swivel bracket b (amb)
-
3369Q62112-3 Clamp bracket right (amb)
STERN BRACKET RIGHT / STARBOARD SIDEClamp bracket right (amb)
STERN BRACKET RIGHT / STARBOARD SIDE -
43GTQ62105-0 Clamp screw kit f2b/2.5b/3.5b-f4/5/6cClamp screw kit f2b/2.5b/3.5b-f4/5/6c
-
3GTQ62105-1 Clamp screw kit f2b/2.5b/3.5b-f4/5/6cClamp screw kit f2b/2.5b/3.5b-f4/5/6c
-
5369-62106-0 Clamp screw (threaded style)Clamp screw (threaded style)
-
63ABQ62102-0 Clamp screw handle (amb)Clamp screw handle (amb)
-
73C8-62104-2 RivetRivet
-
3C8-62104-1 RivetRivet
-
8332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
93C8-62107-0 Shoulder boltShoulder bolt
-
10369Q62113-2 Clamp bracket left (amb)
STERN BRACKET LEFT / PORT SIDEClamp bracket left (amb)
STERN BRACKET LEFT / PORT SIDE -
11309-62115-2 Bolt 8-122Bolt 8-122
-
12930403-0800 Nylon NutNylon Nut
-
139401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
14307-62116-1 WasherWasher
-
153B2-62118-0 Distance Plate, BracketDistance Plate, Bracket
-
169216E3-0612 ScrewScrew
-
921603-0612 ScrewScrew
-
17369-62146-1 Spring Stern BracketSpring Stern Bracket
-
18921703-0406 Stud BoltStud Bolt
-
19369-62147-0 WasherWasher
-
20350-62121-2 Thrust RodThrust Rod
-
21369-62122-2 Spring Thrust RodSpring Thrust Rod
-
229101E3-5640 Bolt & washerBolt & washer
-
233H6-62325-0 Thrust BushingThrust Bushing
-
243H6-61301-0 Bushing Upper, SteeringBushing Upper, Steering
-
253H6-62417-1 Bushing Lower SteeringBushing Lower Steering
-
263H9-62418-1 Friction band assyFriction band assy
-
273H6-62424-0 Thrust Plate BThrust Plate B
-
283H9-62446-0 Spring,Co PilotSpring,Co Pilot
-
293H9-62442-0 Wing Nut M6Wing Nut M6
-
303C8-66308-0 New partNew part
-
313GR-62431-0 Tilt stopper assyTilt stopper assy
-
323AS-62433-0 Grip Tilt StopperGrip Tilt Stopper
-
33393-62437-1 BushingBushing
-
34369-62439-1 Set Plate Tilt StopperSet Plate Tilt Stopper
-
359101E3-5612 Bolt & washerBolt & washer
-
36344-67177-1 Grease NippleGrease Nipple
-
373H6-66313-0 Reverse Lock ArmReverse Lock Arm
-
389101E3-5614 BoltBolt
-
910103-5614 BoltBolt
-
39369-66338-0 Spring R Reverse Lock ArmSpring R Reverse Lock Arm
-
40369-66339-0 Spring L Reverse Lock ArmSpring L Reverse Lock Arm
