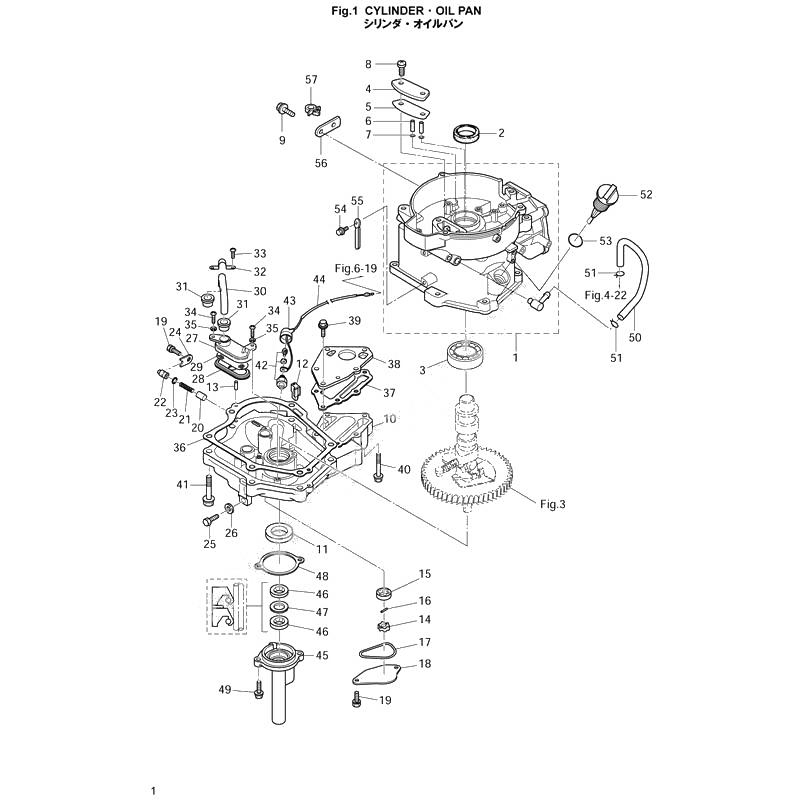

Cylinder Oil pan для Tohatsu MFS5CS - 2011 года выпуска
-
№АртикулНазвание
-
13GRB01184-0 シリンダ-ブロック(サ-ビス)シリンダ-ブロック(サ-ビス)
-
3GRB01184-1 シリンダ-ブロック(サ-ビス)シリンダ-ブロック(サ-ビス)
-
23AB-00121-0 オイルシール 20-35-7オイルシール 20-35-7
-
39601-3-6205 Ball BearingBall Bearing
-
43ASB07431-0 ブリーザチャンバカバーブリーザチャンバカバー
-
53AS-07432-0 Gasket breather capGasket breather cap
-
63R1-07439-0 Collar, Breather(5A new)Collar, Breather(5A new)
-
7941403-0500 Wave WasherWave Washer
-
8921521-6616 ScrewScrew
-
9910103-5612 BoltBolt
-
103AS-07709-0 オイルパンオイルパン
-
113GR-00122-0 Oil SealOil Seal
-
123H6-07404-0 Gromet, Oil PanGromet, Oil Pan
-
13345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
143H6-07601-0 Rotor, Oil PumpInnerRotor, Oil PumpInner
-
153H6-07602-0 Rotor,oil Pump OuterRotor,oil Pump Outer
-
163H6-07603-0 Pin, Oil PumpPin, Oil Pump
-
173R1-07605-0 O-RingO-Ring
-
183H6-07606-0 Cover, Oil PumpCover, Oil Pump
-
19910121-6616 BoltBolt
-
203H6-07621-0 Plunger, ControlPlunger, Control
-
213H6-07622-0 Spring, PressureSpring, Pressure
-
223H6-07623-0 Seat, SpringSeat, Spring
-
23345-66021-0 O-Ring,1.9-6.8O-Ring,1.9-6.8
-
243H6-67115-0 Cover, PlungerCover, Plunger
-
253H6-07705-1 Bolt drainBolt drain
-
263H6-07406-0 Washer,10.2-19-1Washer,10.2-19-1
-
273H6-07411-0 Body, StrainerBody, Strainer
-
283H6-07412-0 Cup, StrainerCup, Strainer
-
293H6-07413-0 Mesh StrainerMesh Strainer
-
303H6-07415-0 Pipe, StrainerPipe, Strainer
-
313H6-07416-0 Stopper, StrainerStopper, Strainer
-
323H6-07417-0 Stopper, StrainrStopper, Strainr
-
33921521-6512 ScrewScrew
-
343C8-02420-0 Bolt 5-16 PrecoatedBolt 5-16 Precoated
-
35940121-0500 WasherWasher
-
363H6-07402-0 Gasket, Oil PanGasket, Oil Pan
-
373H6-02305-0 Gasket, Exh.plateGasket, Exh.plate
-
383H6-02302-1 Elate, ExhaustElate, Exhaust
-
399101F4-5620 New partNew part
-
910114-5620 New partNew part
-
40910114-5640 BoltBolt
-
41910124-5840 BoltBolt
-
423H6-07611-0 Switch, Oil PressureSwitch, Oil Pressure
-
433KY-07612-0 Grommet exhaust housingGrommet exhaust housing
-
443GR-07613-0 Lead cable pressure switchLead cable pressure switch
-
45369-01210-4 Head, Crank CaseHead, Crank Case
-
463GR-01215-0 Oil SealOil Seal
-
47369-01217-0 SpacerSpacer
-
48369-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
49910103-5620 New partNew part
-
503R1-07435-0 Breezer Pipe(5A New)Breezer Pipe(5A New)
-
513C7-02215-0 ClipClip
-
523H6-07421-0 Filler Cap, Engine- OilFiller Cap, Engine- Oil
-
533H6-07422-0 エンジンオイルパッキン (シーリングワッシャー) 2.62-18.72エンジンオイルパッキン (シーリングワッシャー) 2.62-18.72
-
54910103-5612 BoltBolt
-
55309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
563GR-63505-0 Holder cableHolder cable
-
573GR-06973-0 ClampClamp
