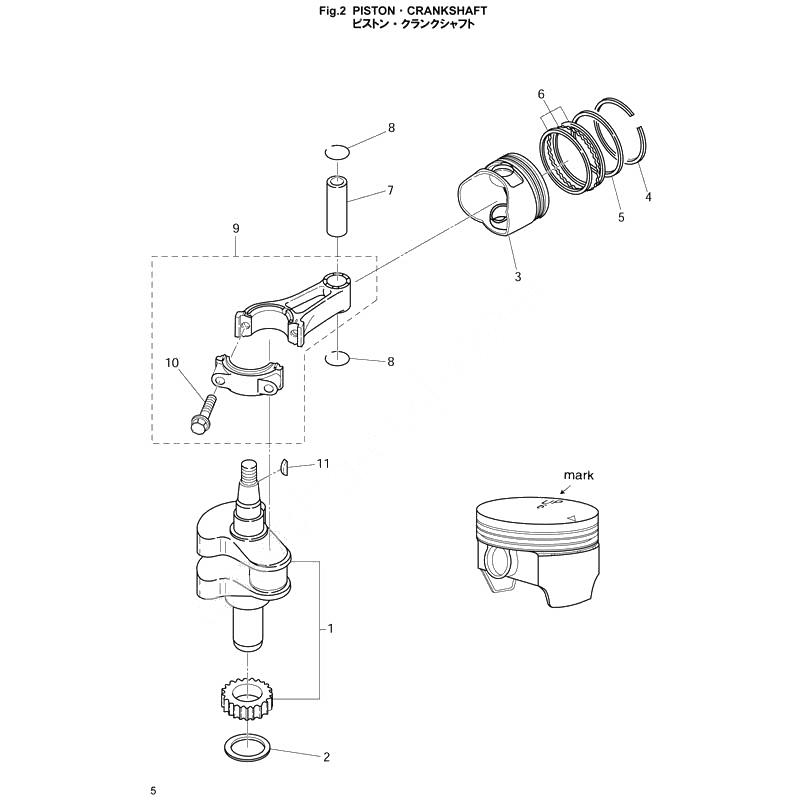

Piston crank shaft для Tohatsu MFS6CS - 2011 года выпуска
-
№АртикулНазвание
-
13H6-00030-0 Crankshaft Cop.Crankshaft Cop.
-
23H6-00115-0 WasherWasher
-
33R4-00004-2 Piston(0.5 O/S)
オプションPiston(0.5 O/S)
オプション -
43H6-00014-0 Piston Ring Top 0.5 O/S
オプションPiston Ring Top 0.5 O/S
オプション -
53H6-00015-0 Piston Ring 2nd 0.5 O/S
オプションPiston Ring 2nd 0.5 O/S
オプション -
63H6-00016-0 Piston Ring Oil 0.5 O/S
オプションPiston Ring Oil 0.5 O/S
オプション -
73AE-00021-0 Piston PinPiston Pin
-
83H6-00024-0 Clip, Piston PinClip, Piston Pin
-
93H6-00040-1 Connecting rod assyConnecting rod assy
-
103H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
11338-00131-0 Magneto KeyMagneto Key
Все узлы модели:
- Assembly kit
- Bottom cowl Tiller handle
- Bracket reverse lock
- Carburetor Fuel pump
- Cylinder head Valve Camshaft
- Cylinder Oil pan
- Drive shaft housing shift
- Gear case (drive shaft) Gear case (proppeller shaft)
- Magneto
- Optional parts accessories
- • Piston crank shaft
- Recoil starter
- Separate fuel tank
- Top cowl
