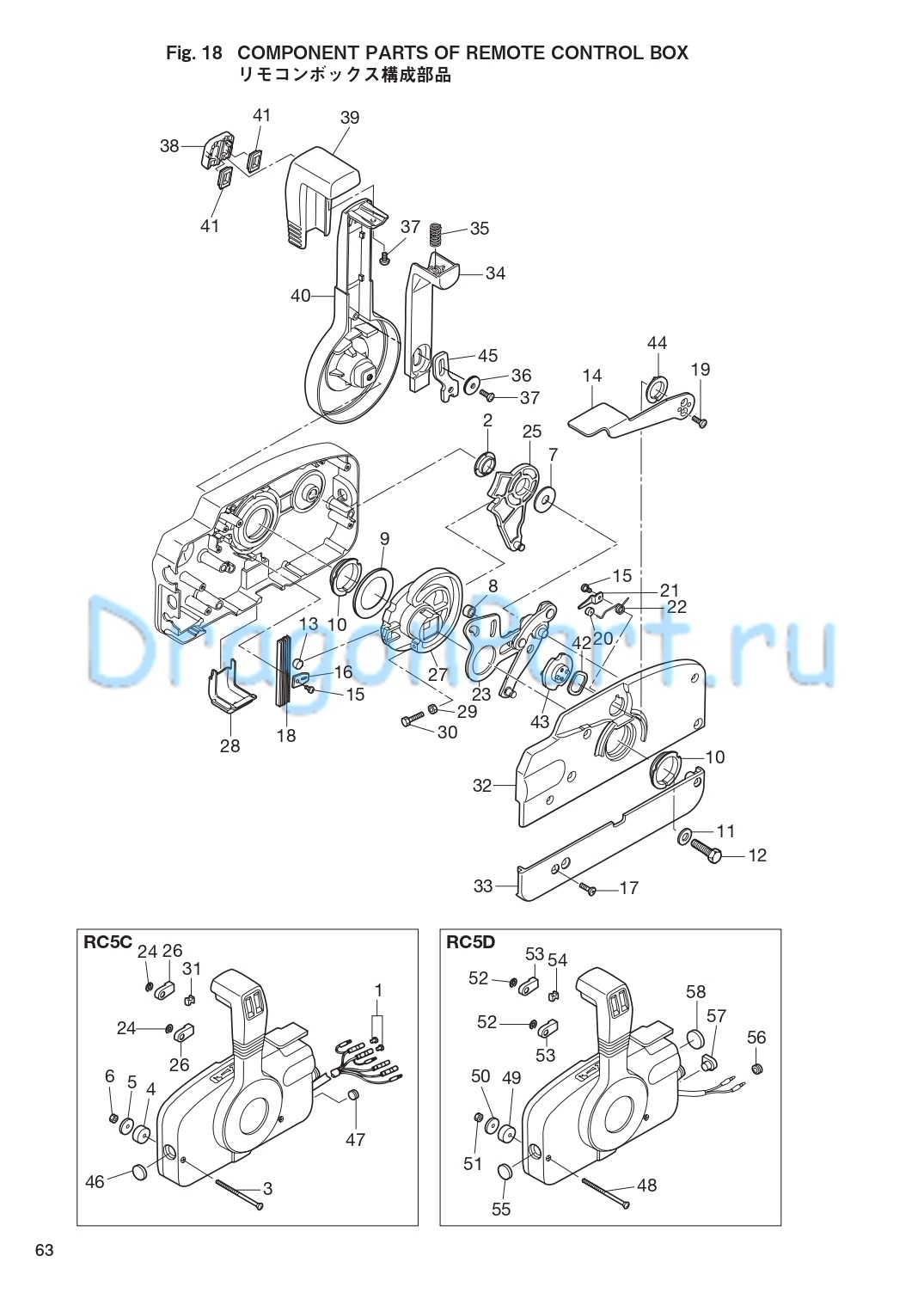

COMPONENT PARTS OF REMOTE CONTROL BOX для Tohatsu M18E2 - 2012 года выпуска
-
№АртикулНазвание
-
13A3-76037-0 Cable Terminal Plug
RC5CCable Terminal Plug
RC5C -
23A3-84432-0 BushingBushing
-
33A3-84375-0 ScrewScrew
-
43A3-84374-0 SpacerSpacer
-
5353-84371-0 WasherWasher
-
6930103-0600 NutNut
-
73A3-84383-0 WasherWasher
-
83A3-84421-0 RollerRoller
-
93A3-84422-0 Thrust PlateThrust Plate
-
103A3-84431-0 BushingBushing
-
11940103-0800 WasherWasher
-
123A3-84442-0 BoltBolt
-
13353-84388-0 Detent RollerDetent Roller
-
143B7Q84312-0 Free Throttle LeverFree Throttle Lever
-
15921503-0406 ScrewScrew
-
163A3-84423-0 Detent RetainerDetent Retainer
-
17921603-0518 ScrewScrew
-
183A3-84307-0 Detent SpringDetent Spring
-
19921603-0512 ScrewScrew
-
203A3-84424-0 Free Throttle RollerFree Throttle Roller
-
213A3-84426-0 Roller RetainerRoller Retainer
-
223A3-84425-0 Free Throttle SpringFree Throttle Spring
-
233A3-84365-1 Throttle ArmThrottle Arm
-
24945303-0600 E-Ring d=6E-Ring d=6
-
253A3-84381-0 Shift Gear Ass'yShift Gear Ass'y
-
263A3-83314-2 Cable TerminalCable Terminal
-
273A3-84364-2 Drive GearDrive Gear
-
283A3-84429-0 Wire CoverWire Cover
-
29930103-0500 NutNut
-
30910103-0525 BoltBolt
-
313A3-84376-0 GrommetGrommet
-
323B7Q84441-0 Rear HousingRear Housing
-
333B7Q84366-0 Rear PanelRear Panel
-
343A3-84401-0 Neutral Lock ArmNeutral Lock Arm
-
353A3-84403-0 Neutral Lock SpringNeutral Lock Spring
-
363A3-84407-0 WasherWasher
-
37921503-0510 ScrewScrew
-
383A3-84451-0 Tilt Switch CoverTilt Switch Cover
-
393A3-84404-0 GripGrip
-
403B7Q84343-0 Control LeverControl Lever
-
413A3-84452-0 Tilt Switch PlugTilt Switch Plug
-
423A3-84368-0 Wave WasherWave Washer
-
433A3-84391-0 Free Throttle DrumFree Throttle Drum
-
443A3-84435-0 BushingBushing
-
453A3-84406-0 PlatePlate
-
46361-84414-0 GrommetGrommet
-
47361-84415-0 Grommet
RC5CGrommet
RC5C -
483A3-84375-0 ScrewScrew
-
493A3-84374-0 SpacerSpacer
-
50353-84371-0 WasherWasher
-
51930103-0600 NutNut
-
52945303-0600 E-Ring d=6E-Ring d=6
-
533A3-83314-2 Cable TerminalCable Terminal
-
543A3-84376-0 GrommetGrommet
-
55361-84414-0 GrommetGrommet
-
56369-84418-0 Grommet
RC5DGrommet
RC5D -
57353-84321-0 Grommet
RC5DGrommet
RC5D -
58369-84416-0 Grommet
RC5DGrommet
RC5D
