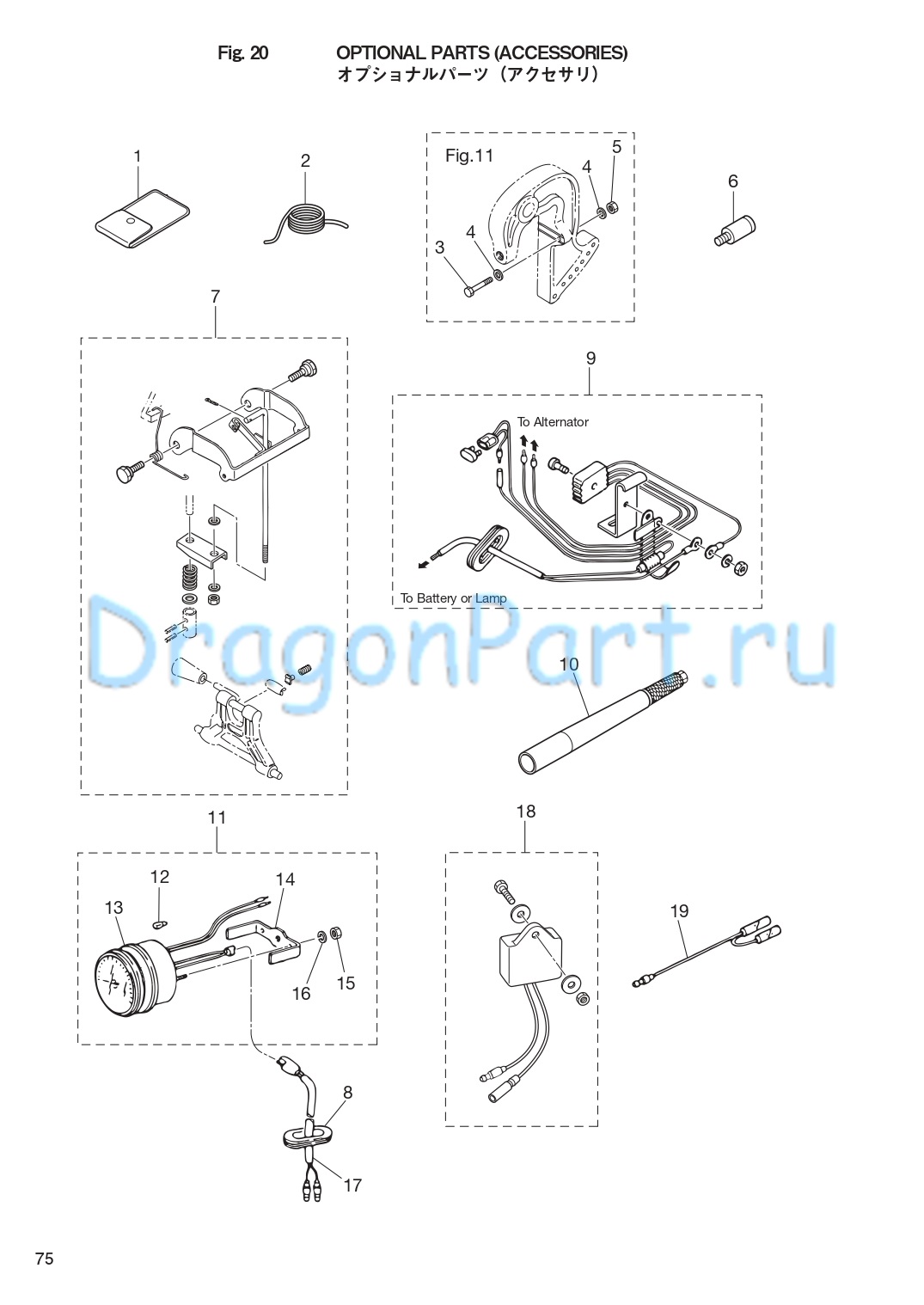

OPTIONAL PARTS (ACCESSORIES) для Tohatsu M25H - 2012 года выпуска
-
№АртикулНазвание
-
13C8-72100-1 TOOL KITTOOL KIT
-
23B7-72201-0 SAFETY ROPE φ6-1600
for M25/30H & 25JETSAFETY ROPE φ6-1600
for M25/30H & 25JET -
3916103-0885 BOLT
for EP & 25JETBOLT
for EP & 25JET -
4940103-0800 WASHER
for EP & 25JETWASHER
for EP & 25JET -
5930103-0800 NUT
for EP & 25JETNUT
for EP & 25JET -
6336-60007-0 FLUSHING PLUGFLUSHING PLUG
-
73P0-66901-0 REVERSE LOCK SHIFT LEVER KITREVERSE LOCK SHIFT LEVER KIT
-
8345-67169-0 GROMMETGROMMET
-
9346-76160-2 RECTIFIER KITRECTIFIER KIT
-
103A1-63038-0 LONG HANDLE L=1000
for MF/EF ModelLONG HANDLE L=1000
for MF/EF Model -
103A1-63039-0 LONG HANDLE L=800
for MF/EF ModelLONG HANDLE L=800
for MF/EF Model -
113B7-72530-2 TACHOMETER ASSYTACHOMETER ASSY
-
123B7-72659-0 * METER BULB 12V-1.8W* METER BULB 12V-1.8W
-
133B7-72656-0 * METER DAMPER* METER DAMPER
-
143B7-72661-0 * FITTING PLATE* FITTING PLATE
-
15930103-0500 * NUT* NUT
-
16941303-0500 * SPRING WASHER* SPRING WASHER
-
17361-72539-0 TACHOMETER LEAD WIRE L=6000TACHOMETER LEAD WIRE L=6000
-
183P0-72679-0 TACHOMETER UNIT KITTACHOMETER UNIT KIT
-
19361-72542-0 SEPARATE CORD
WhiteSEPARATE CORD
White -
19361-72543-0 SEPARATE CORD
YellowSEPARATE CORD
Yellow
