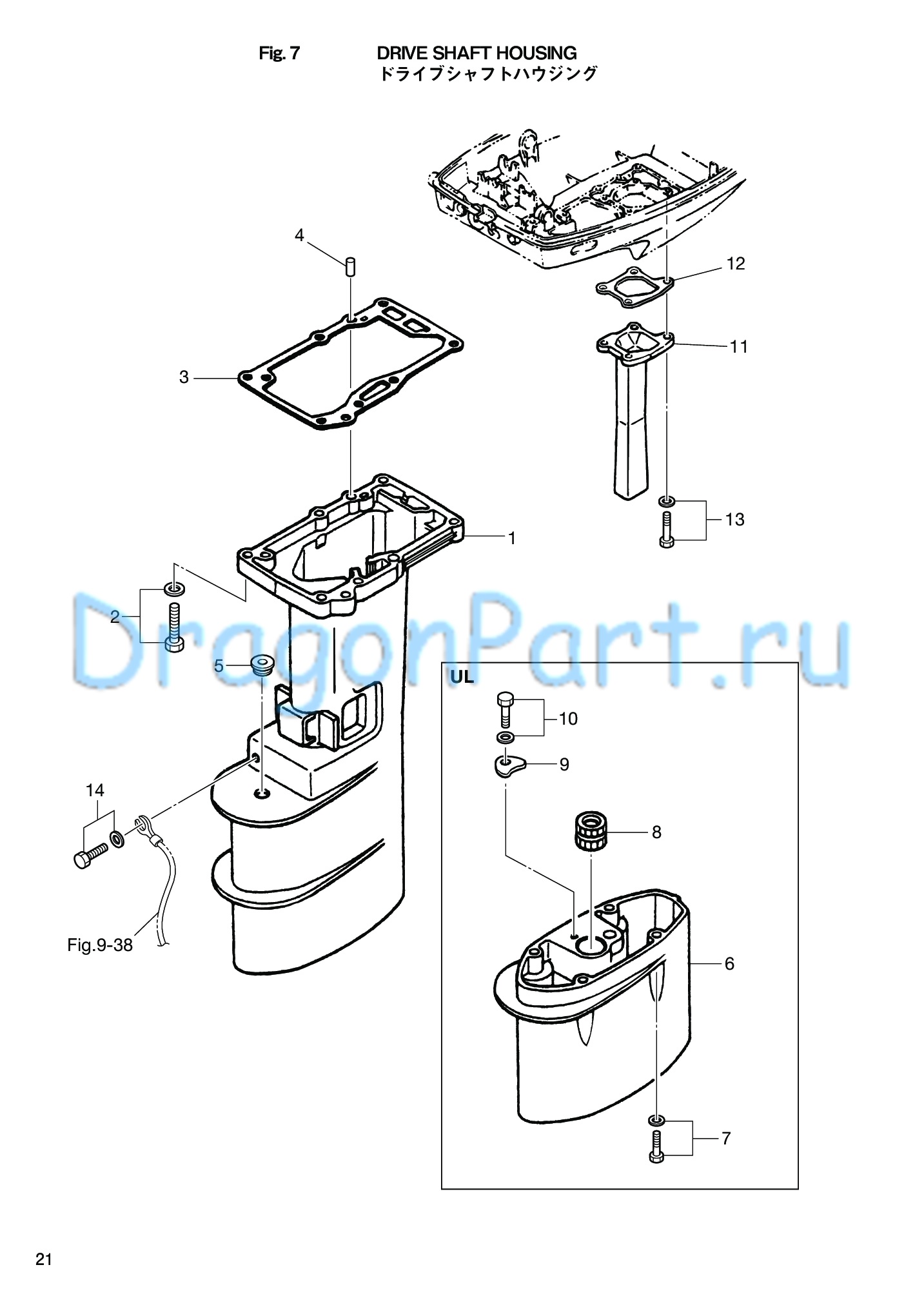

DRIVE SHAFT HOUSING для Tohatsu M9.8B - 2012 года выпуска
-
№АртикулНазвание
-
13B2Q61191-1 DRIVE SHAFT HOUSING (S)
for Transom “S”DRIVE SHAFT HOUSING (S)
for Transom “S” -
13B2Q61192-1 DRIVE SHAFT HOUSING (L)
for Transom “L”&“UL”DRIVE SHAFT HOUSING (L)
for Transom “L”&“UL” -
29101E3-5635 BOLT"BOLT"
-
33B2-61012-2 DRIVE SHAFT HOUSING GASKET"DRIVE SHAFT HOUSING GASKET"
-
43B2-01111-0 DOWEL PIN 6-16"DOWEL PIN 6-16"
-
5369-66043-1 GROMMET"GROMMET"
-
63B2Q61110-2 EXTENSION HOUSING"
for Transom “UL”EXTENSION HOUSING"
for Transom “UL” -
79101E3-5635 BOLT"
for Transom “UL”BOLT"
for Transom “UL” -
83B2-60003-1 DRIVE SHAFT BUSHING"
for Transom “UL”DRIVE SHAFT BUSHING"
for Transom “UL” -
93V1-64332-0 STOPPER"
for Transom “UL”STOPPER"
for Transom “UL” -
109101E3-5612 BOLT"
for Transom “UL”BOLT"
for Transom “UL” -
113B2-02311-0 EXHAUST PIPE"EXHAUST PIPE"
-
123B2-02312-2 EXHAUST PIPE GASKET"EXHAUST PIPE GASKET"
-
13910103-5618 BOLT"BOLT"
-
149101E3-5612 BOLT"BOLT"
